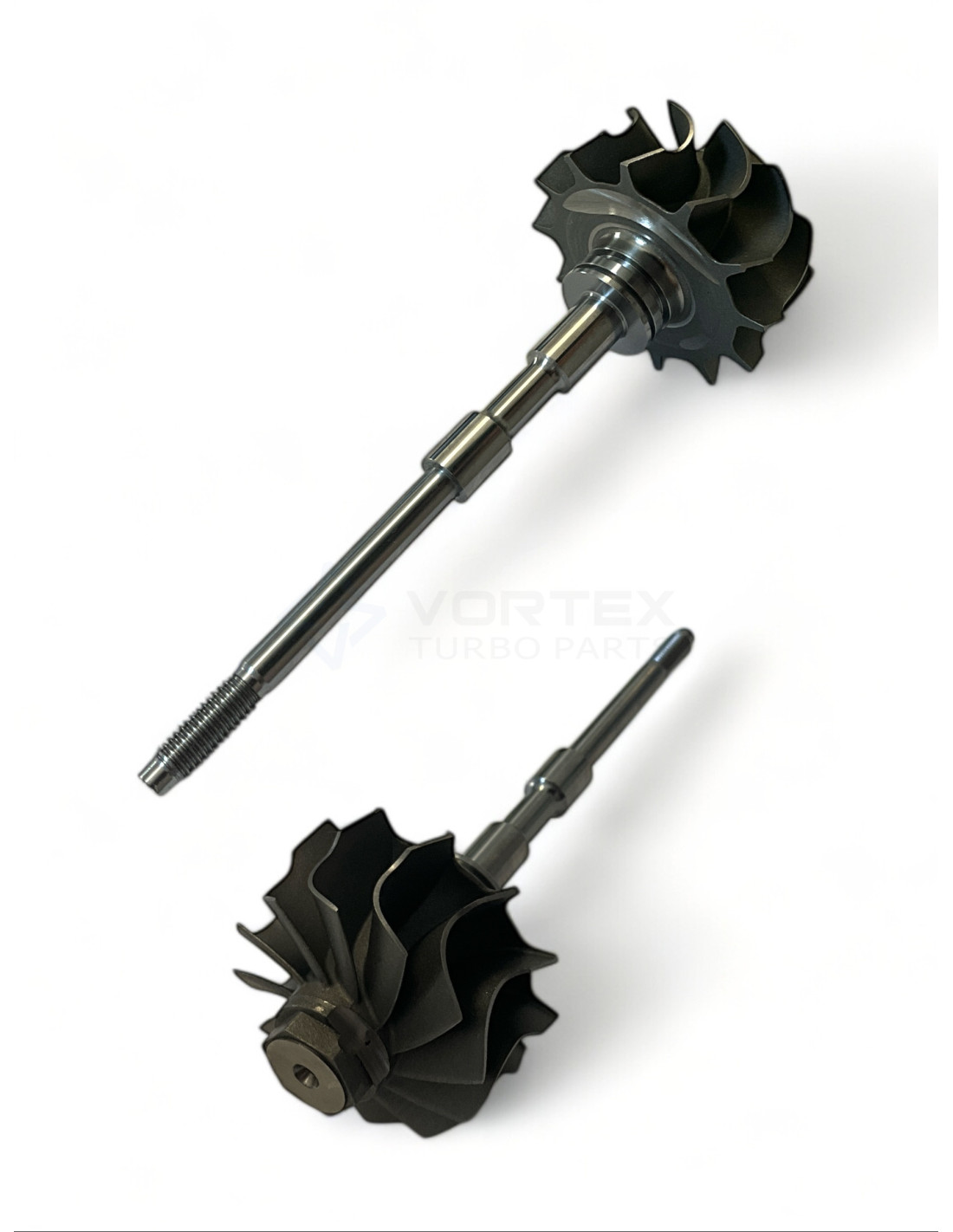

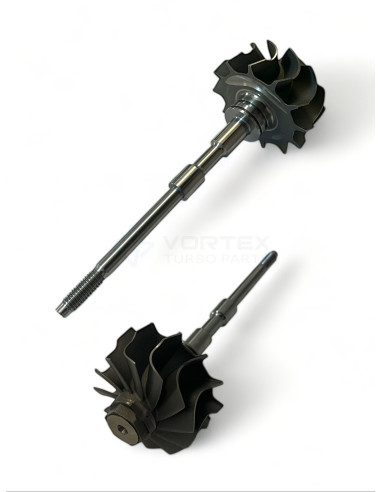

Shaft and wheel SW-G042
Shaft and wheel SW-G042

Shaft and wheel SW-G042

SW-G042
New
Last items in stock (1 Item)
€31.46
Tax included

707669-0005, 707669-0010, SW-G042

Shaft and wheel SW-G042 for turbos 706976-0001, 706976-0002, 706977-0001, 706977-0002, 706977-0003, 706978-0001, 706978-0002, 706978-0003, 706978-0004, 706978-0005.



SW-G042 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G042

SW-G042 - Alternative numbers

GHO (Garrett original part number): 707669-0005

GHO (Garrett original part number): 707669-0010

SW-G042 - Compatibility table

Shaft and wheel SW-G042 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1546S706976-0001--
GarrettGT1546S706976-0002--
GarrettGT1546S706977-0001--
GarrettGT1546S706977-0002--
GarrettGT1546S706977-0003--
GarrettGT1546S706978-0001--
GarrettGT1546S706978-0002--
GarrettGT1546S706978-0003--
GarrettGT1546S706978-0004--
GarrettGT1546S706978-0005--
GarrettGT1549S713667-0001--
GarrettGT1549S713667-0002--
GarrettGT1549S713667-0003--
GarrettGT1549S734204-0001--

SW-G042 - Part Properties

Blades (Shaft blades count): 12

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 42.0

Exducer Diameter B (Exducer Diameter B): 38.2

Tip Height C (Tip Height C): 6.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 89.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

706976-0001, 706976-0002, 706977-0001, 706977-0002, 706977-0003, 706978-0001, 706978-0002, 706978-0003, 706978-0004, 706978-0005, 713667-0001, 713667-0002, 713667-0003, 734204-0001

Data updated: 2024-09-16 18:56:23
