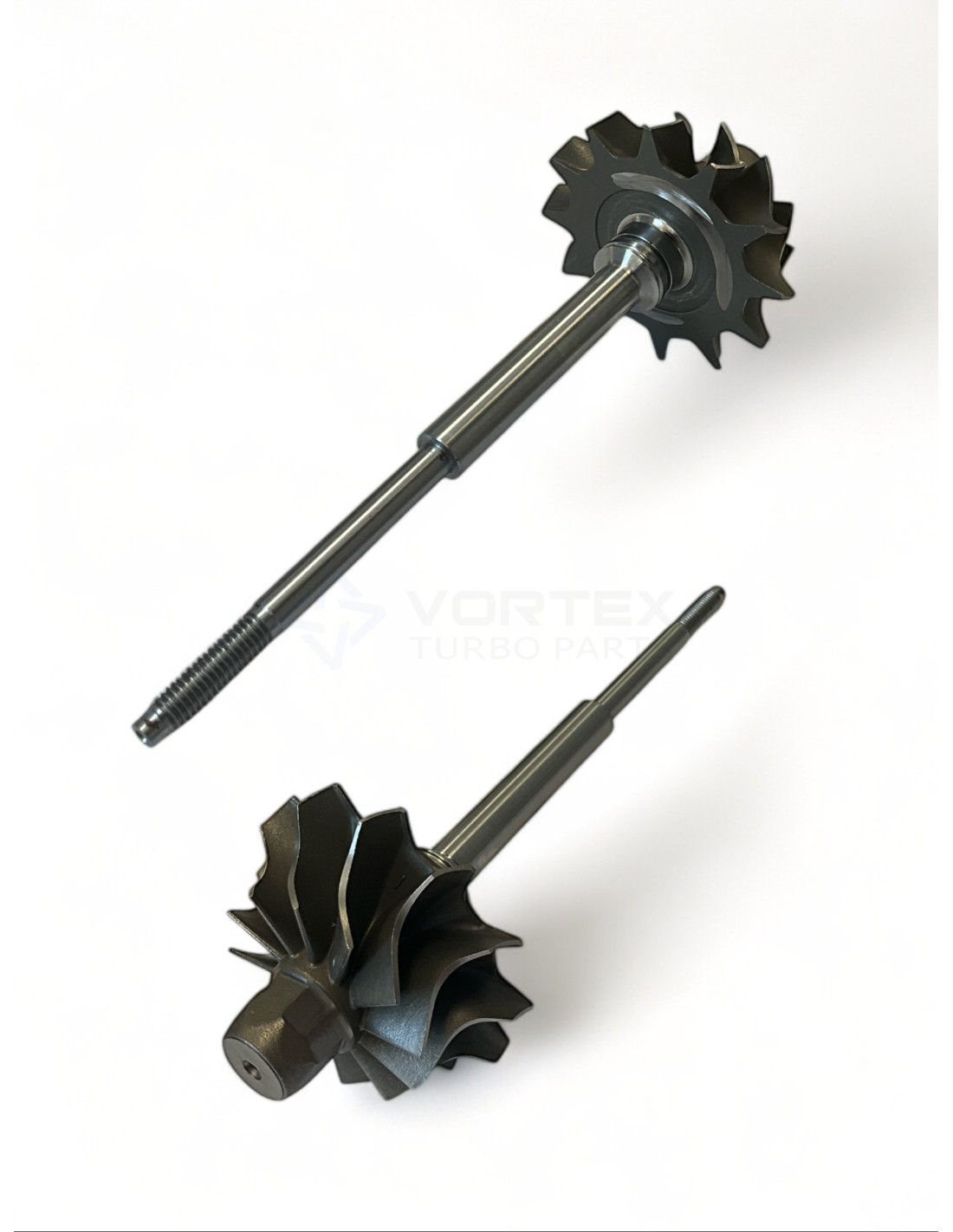

Shaft and wheel SW-K025
Shaft and wheel SW-K025

Shaft and wheel SW-K025

SW-K025
New
Out-of-Stock
€46.25
Tax included

5314 120 5009, SW-K025

Shaft and wheel SW-K025 for turbos 53149706000, 53149706001, 53149706002, 53149706004, 53149706005, 53149706006, 53149706082, 53149706084, 53149706085, 53149706086.




SW-K025 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-K025

SW-K025 - Alternative numbers

BWO (BorgWarner original part number): 5314 120 5009

SW-K025 - Compatibility table

Shaft and wheel SW-K025 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerK14-2060GGB3.51GAANF53149706000068145703H
BorgWarnerK14-2060GGB3.51GAAVB5314970600135242001A
BorgWarnerK14-2060GGB3.51GAAVB5314970600235242028F
BorgWarnerK14-2060GGB3.51GAAVD5314970600435242019A
BorgWarnerK14-2060GGB3.51GAAVB5314970600535242027F
BorgWarnerK1453149706006--
BorgWarnerK14-2060GGB3.51GAANF53149706082068145703L
BorgWarnerK14-2060GGB3.51GAANF53149706084068145702H
BorgWarnerK14-2060GGB3.94GAANF53149706085068145704A
BorgWarnerK14-2060GGB3.51GAANF53149706086068145704B
BorgWarnerK14-2060GGB3.51GAANF53149706087068145704C
BorgWarnerK14-2060GGB3.51GAAND53149706088068145704D
BorgWarnerK14-2064GGB3.51GAASD531497064039301148280
BorgWarnerK14-2264GGB4.51GBCVF5314970640490325169
BorgWarnerK14-2264GGB4.51GBCVF5314970640690285625
BorgWarnerK14-2064GGB3.51GAASD531497064139603684880
BorgWarnerK14-2064GGB3.51GAASD531497064149607619280
BorgWarnerK14-2064GGB3.51GAASD531497064159614201280
BorgWarnerK1453149706419--
BorgWarnerK14-2064GGB3.51GAASD53149706423037528, 9601515880
BorgWarnerK14-2064GGB3.51GAASD53149706424037538, 9613719780
BorgWarnerK14-2064GGB3.51GAASD53149706433037540, 037541, 9613719980
BorgWarnerK14-2064GGB3.51GAASD53149706443037529, 9603623180
BorgWarnerK14-2070GGB3.51GAAND53149707009028145703E
BorgWarnerK14-2070GGB3.51GAAND53149707014028145704
BorgWarnerK14-2070GGB3.81GADND53149707018074145701A
BorgWarnerK14-2070GGB3.51GAAND53149707022068145703H

SW-K025 - Part Properties

Blades (Shaft blades count): 12

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 50.0

Exducer Diameter B (Exducer Diameter B): 37.2

Tip Height C (Tip Height C): 6.2

Journal Bearing Diameter D (Journal Bearing Diameter D): 8.5

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.4

Shaft Length (mm) (Shaft Length (mm)): 107.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): K14/16

53149707022, 53149707018, 53149707014, 53149707009, 53149706443, 53149706433, 53149706424, 53149706423, 53149706419, 53149706415, 53149706414, 53149706413, 53149706406, 53149706404, 53149706403, 53149706088, 53149706087, 53149706086, 53149706085, 53149706084, 53149706082, 53149706006, 53149706005, 53149706004, 53149706002, 53149706001, 53149706000, 068145703H, 5314 970 6000, 35242001A, 5314 970 6001, 35242028F, 5314 970 6002, 35242019A, 5314 970 6004, 35242027F, 5314 970 6005, 5314 970 6006, 068145703L, 5314 970 6082, 068145702H, 5314 970 6084, 068145704A, 5314 970 6085, 068145704B, 5314 970 6086, 068145704C, 5314 970 6087, 068145704D, 5314 970 6088, 5314 970 6403, 9301148280, 5314 970 6404, 90325169, 5314 970 6406, 90285625, 5314 970 6413, 9603684880, 5314 970 6414, 9607619280, 5314 970 6415, 9614201280, 5314 970 6419, 037528, 5314 970 6423, 9601515880, 037538, 5314 970 6424, 9613719780, 037540, 037541, 5314 970 6433, 9613719980, 037529, 5314 970 6443, 9603623180, 028145703E, 5314 970 7009, 028145704, 5314 970 7014, 074145701A, 5314 970 7018, 068145703H, 5314 970 7022
