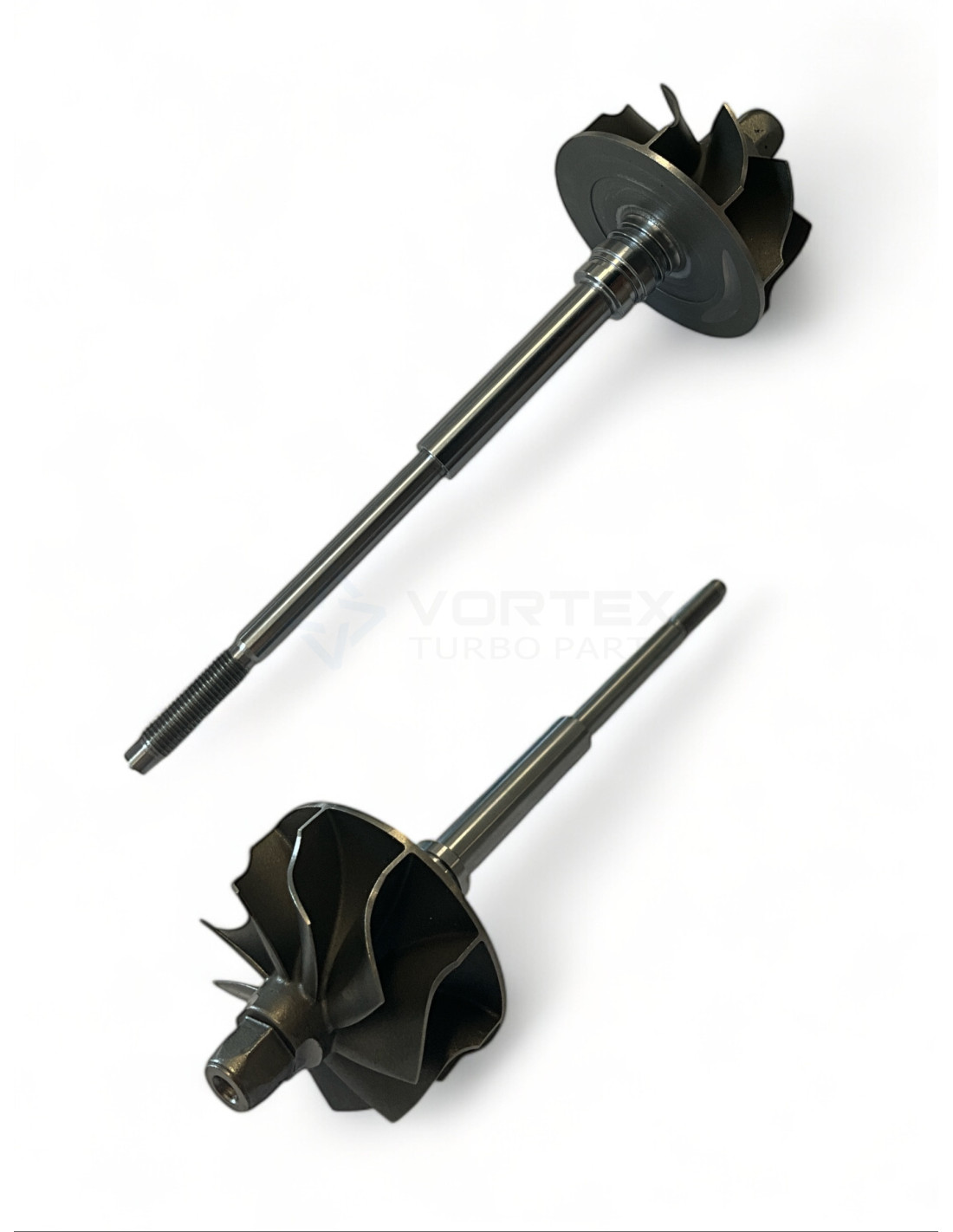

Shaft and wheel SW-K054
SW-K054
New
In Stock
(35 Items)
€28.31
Tax included
Shaft and wheel SW-K054 for turbos 10009700026, 10009700027, 10009700029, 10009700052, 10009700053, 10009700064, 10009700065, 10009700066, 10009700067, 10009700098.
SW-K054 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-K054
SW-K054 - Compatibility table
| Shaft and wheel SW-K054 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| BorgWarner | R2S KP35 + K04 | 10009700026 | 03L145702S |
| BorgWarner | R2S KP35 + K04 | 10009700027 | 03L145715 |
| BorgWarner | R2S KP35 + K04 | 10009700029 | 03L145715A |
| BorgWarner | R2S KP35 + K04 | 10009700052 | 03L145701F |
| BorgWarner | R2S KP35 + K04 | 10009700053 | 03L145701G |
| BorgWarner | R2S KP35 + K04 | 10009700064 | 03L145715D |
| BorgWarner | R2S KP35 + K04 | 10009700065 | 03L145715E |
| BorgWarner | R2S KP35 + K04 | 10009700066 | 03L145701F |
| BorgWarner | R2S KP35 + K04 | 10009700067 | 03L145701G |
| BorgWarner | R2S KP35 + K04 | 10009700098 | 03L145715J |
| BorgWarner | R2S KP35 + K04 | 10009700099 | 03L145873 |
| BorgWarner | R2S KP35 + K04 | 10009700102 | 03L145715G |
| BorgWarner | (R2S) B01 | 16359700004 | -- |
| BorgWarner | (R2S) B01 | 16359700043 | -- |
SW-K054 - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 34.8
Exducer Diameter B (Exducer Diameter B): 31.0
Tip Height C (Tip Height C): 5.2
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.1
Shaft Length (mm) (Shaft Length (mm)): 83.5
Shaft Length (mm) (Shaft Length (mm)): 83.5
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Model (Model): KP/BV35
16359700043, 16359700004, 10009700102, 10009700099, 10009700098, 10009700067, 10009700066, 10009700065, 10009700064, 10009700053, 10009700052, 10009700029, 10009700027, 10009700026, 03L145702S, 1000 970 0026, 03L145715, 1000 970 0027, 03L145715A, 1000 970 0029, 03L145701F, 1000 970 0052, 03L145701G, 1000 970 0053, 03L145715D, 1000 970 0064, 03L145715E, 1000 970 0065, 03L145701F, 1000 970 0066, 03L145701G, 1000 970 0067, 03L145715J, 1000 970 0098, 03L145873, 1000 970 0099, 03L145715G, 1000 970 0102, 1635 970 0004, 1635 970 0043
Data updated: 2024-09-16 19:13:44
