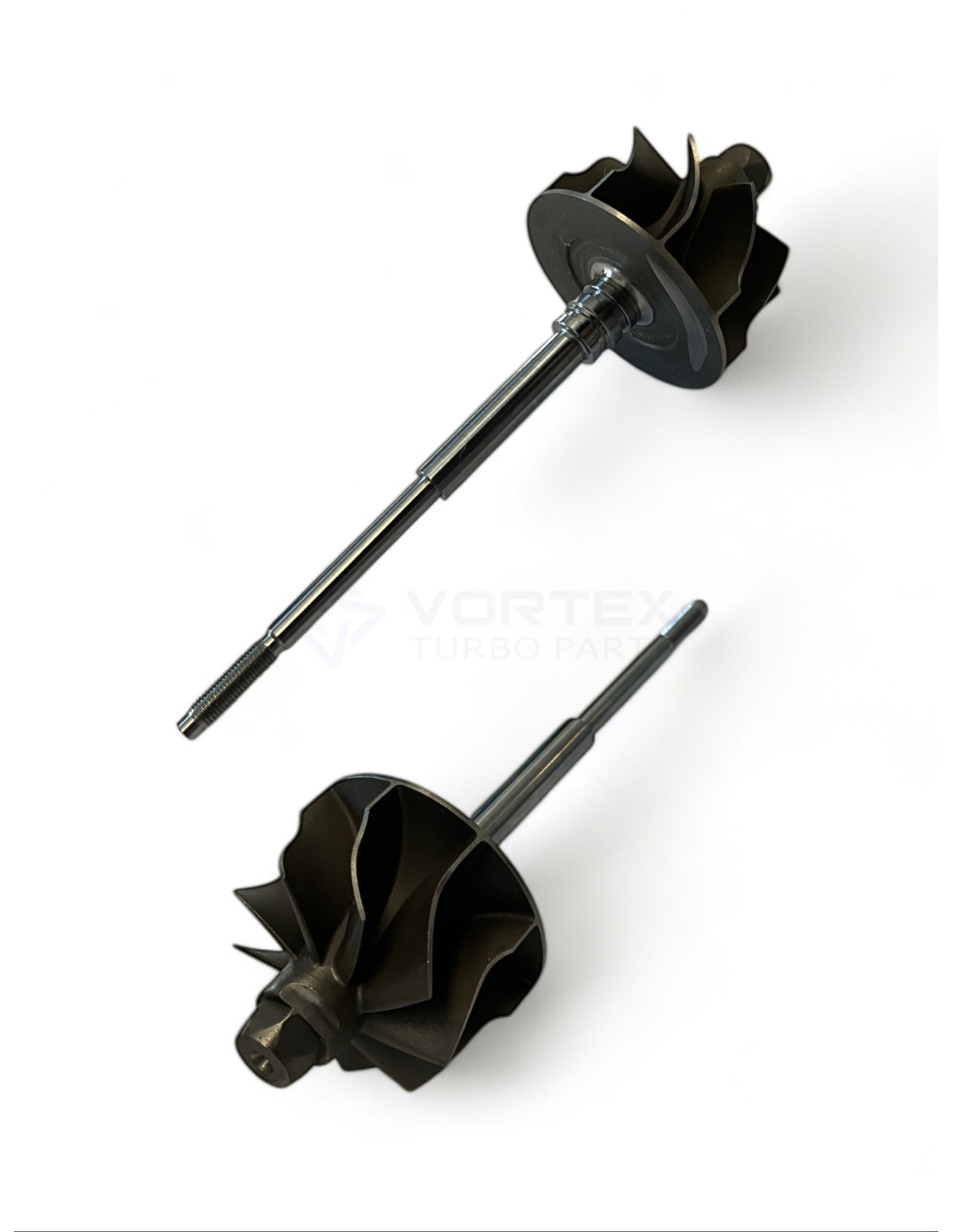

Shaft and wheel SW-K060
Shaft and wheel SW-K060

Shaft and wheel SW-K060

SW-K060
New
In Stock (34 Items)
€27.37
Tax included

5439 120 5017, SW-K060

Shaft and wheel SW-K060 for turbos 54399700005, 54399700012, 54399700016, 54399700023, 54399700047, 54399700050, 54399700053, 54399700059, 54399700060, 54399700061.



SW-K060 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-K060

SW-K060 - Alternative numbers

BWO (BorgWarner original part number): 5439 120 5017

SW-K060 - Compatibility table

Shaft and wheel SW-K060 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerKP39-1875CCB426.18BVAXC54399700005038253010L, 038253019H, 038253056D, 3M219G438AA
BorgWarnerKP39-1875CCB426.18BVAXC54399700012038253010Q, 038253016S, 038253056F
BorgWarnerBV39-1875CCB426.18BVAXC54399700016038253010, 038253014
BorgWarnerBV39-1875CCB426.18BVAXC54399700023038253010E, 038253010T, 038253014C
BorgWarnerBV39-1875CCB426.18BVAXC54399700047038253010F, 038253014R, 038253056, 4M219G438BA
BorgWarnerBV39-1875CCB426.18BVAXC5439970005003G253010B, 03G253010G, 03G253014C, 4M219G438BA
BorgWarnerBV39-1874DCB426.18BVAXC54399700053038253014P
BorgWarnerBV39-1874DCB426.18BVAXC5439970005903G253010E, 03G253016D
BorgWarnerBV39-1874DCB426.18BVAXC5439970006003G253010F, 03G253016E
BorgWarnerBV39-1872FFAAA426.18BVAXC543997000616H4Q 6K682HF, 6H4Q-6K682-HD, LR004527
BorgWarnerBV39-1872FFAAA426.18BVAXC543997000626H4Q-6K682-GD, 6H4Q-6K682-GG, 6H4Q6K682GD, 6H4Q6K682GG, LR004526
BorgWarnerBV39-1872FFAAA426.18BVAXC543997000636H3Q-6K682-FC, 6H3Q-6K682-FE, LR004038
BorgWarnerBV39-1872FFAAA426.18BVAXC543997000646H3Q-6K682-EC, 6H3Q6K682EC, 6H4Q-6K682-EE, 6H4Q6K682EE, LR004037
BorgWarnerBV39-1875CCB426.18BVAXC54399700083038253056H
BorgWarnerKP395439970010728230-2F300, 28231-2F300
BorgWarnerBV39-1872FFAAA426.18BVAXC543997001106H4Q-6K682-HG, LR021046
BorgWarnerBV39-1872FFAAA426.18BVAXC543997001116H4Q-6K682-GH, 6H4Q6K682GH, LR021045
BorgWarnerBV39-1872FFAAA426.18BVAXC54399700112--
BorgWarnerBV39-1872FFAAA426.18BVAXC543997001136H3Q-6K682-EF, 6H3Q6K682EF, LR021043

SW-K060 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 38.5

Exducer Diameter B (Exducer Diameter B): 34.6

Tip Height C (Tip Height C): 6.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.1

Shaft Length (mm) (Shaft Length (mm)): 83.5

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Single

Model (Model): KP/BV39

54399700113, 54399700112, 54399700111, 54399700110, 54399700107, 54399700083, 54399700064, 54399700063, 54399700062, 6H4Q6K682HF, 54399700061, 54399700060, 54399700059, 54399700053, 54399700050, 54399700047, 54399700023, 54399700016, 54399700012, 54399700005, 038253010L, 038253019H, 038253056D, 3M219G438AA, 5439 970 0005, 038253010Q, 038253016S, 038253056F, 5439 970 0012, 038253010, 038253014, 5439 970 0016, 038253010E, 038253010T, 038253014C, 5439 970 0023, 038253010F, 038253014R, 038253056, 4M219G438BA, 5439 970 0047, 03G253010B, 03G253010G, 03G253014C, 4M219G438BA, 5439 970 0050, 038253014P, 5439 970 0053, 03G253010E, 03G253016D, 5439 970 0059, 03G253010F, 03G253016E, 5439 970 0060, 5439 970 0061, 6H4Q 6K682HF, 6H4Q-6K682-HD, LR004527, 5439 970 0062, 6H4Q-6K682-GD, 6H4Q-6K682-GG, 6H4Q6K682GD, 6H4Q6K682GG, LR004526, 5439 970 0063, 6H3Q-6K682-FC, 6H3Q-6K682-FE, LR004038, 5439 970 0064, 6H3Q-6K682-EC, 6H3Q6K682EC, 6H4Q-6K682-EE, 6H4Q6K682EE, LR004037, 038253056H, 5439 970 0083, 28230-2F300, 28231-2F300, 5439 970 0107, 5439 970 0110, 6H4Q-6K682-HG, LR021046, 5439 970 0111, 6H4Q-6K682-GH, 6H4Q6K682GH, LR021045, 5439 970 0112, 5439 970 0113, 6H3Q-6K682-EF, 6H3Q6K682EF, LR021043
