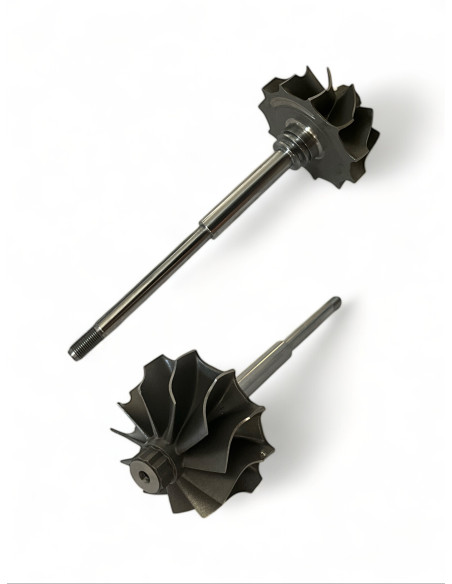

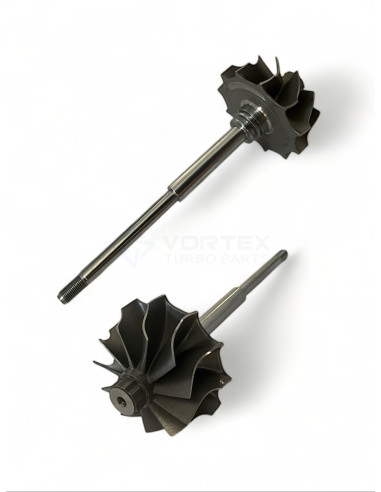

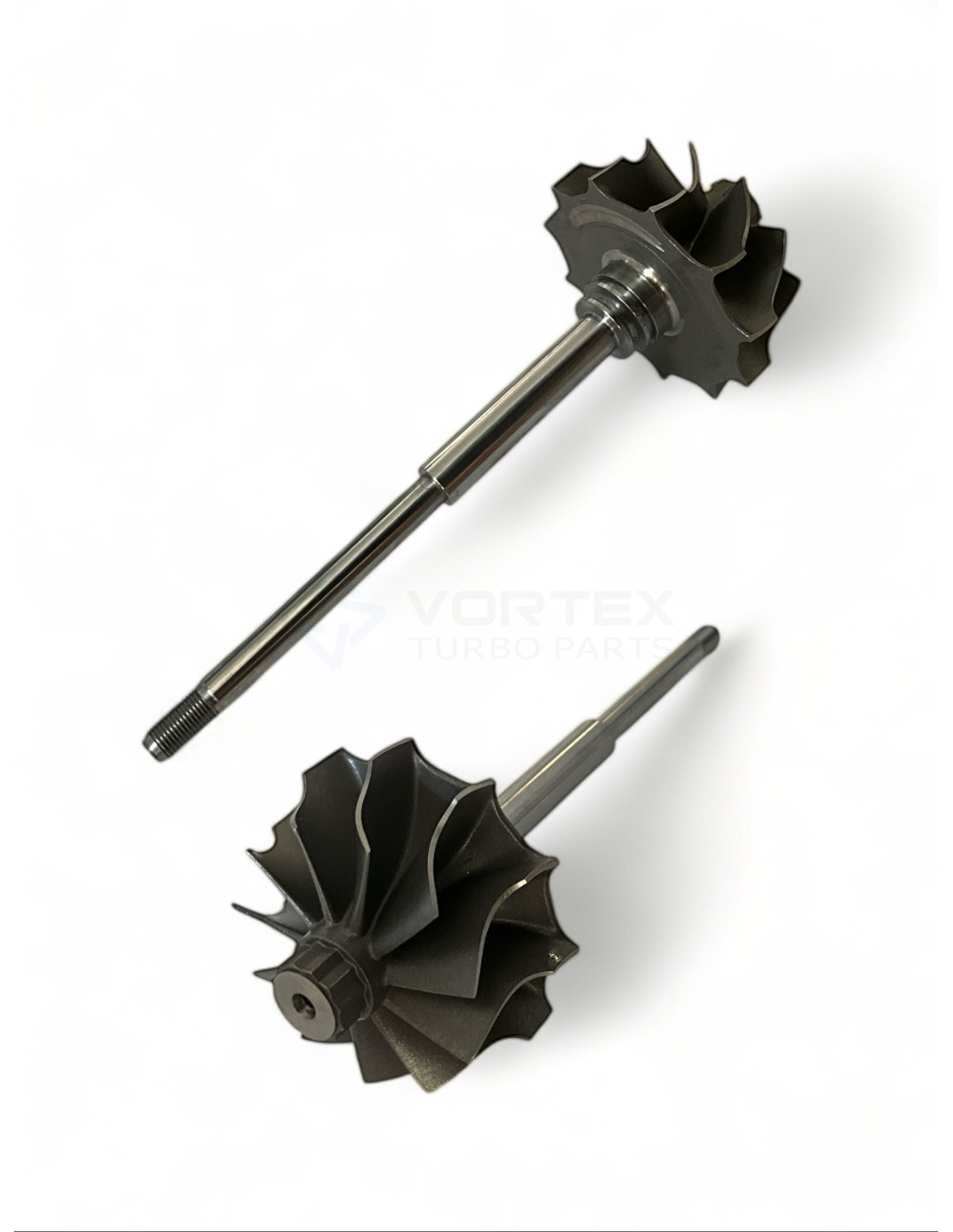

Shaft and wheel SW-I020
Shaft and wheel SW-I020

Shaft and wheel SW-I020

SW-I020
New
Out-of-Stock
€36.18
Tax included

Shaft and wheel SW-I020 for turbos VB14, VB17, VB19, VB21, VB25, VB26, VB28.




SW-I020 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-I020

SW-I020 - Compatibility table

Shaft and wheel SW-I020 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
IHIRHF4VVB1417201-0R010, 17201-0R011
IHIRHF4VB1717201-26020, 17201-26021
IHIRHF4VB1917201-0R040, 17201-0R041, 17201-26051, 17201-26053
IHIRHF4VB2117201-0R040, 17201-0R041, 17201-26051, 17201-26053, 172010R040, 172010R041, 1720126051, 1720126053
IHIRHF4VVB25--
IHIRHF4VB26--
IHIRHF4VVB2817201-26070

SW-I020 - Part Properties

Blades (Shaft blades count): 11

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 46.0

Exducer Diameter B (Exducer Diameter B): 38.2

Tip Height C (Tip Height C): 7.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.4

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): RHF4

17201-0R010, 17201-0R011, VB14, 17201-26020, 17201-26021, VB17, 17201-0R040, 17201-0R041, 17201-26051, 17201-26053, VB19, 17201-0R040, 17201-0R041, 17201-26051, 17201-26053, 172010R040, 172010R041, 1720126051, 1720126053, VB21, VB25, VB26, 17201-26070, VB28

Data updated: 2024-09-20 13:51:55
