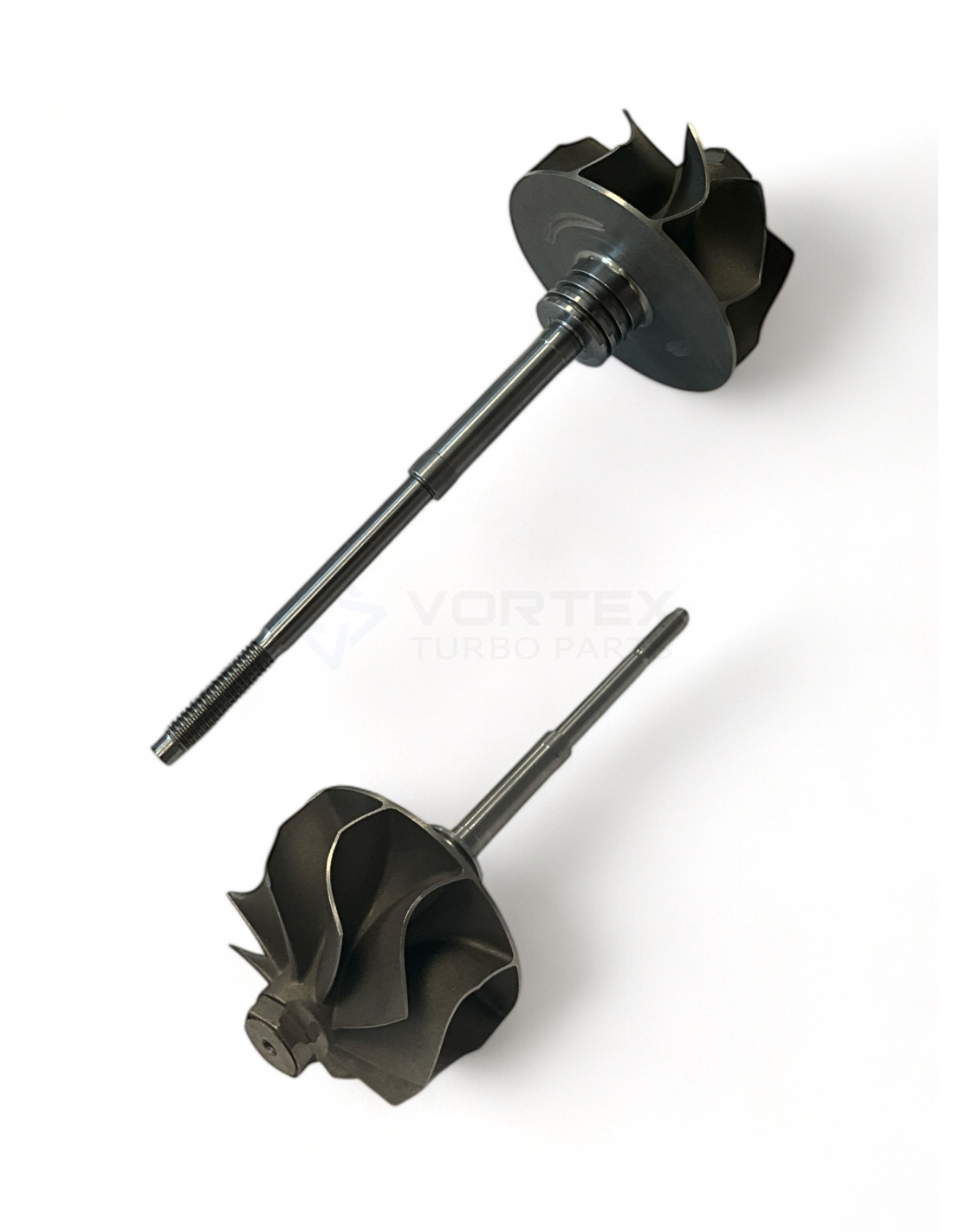

Shaft and wheel SW-G111
Shaft and wheel SW-G111

Shaft and wheel SW-G111

SW-G111
New
In Stock (12 Items)
€44.04
Tax included

Shaft and wheel SW-G111 for turbos 799671-0001, 799671-0002, 804985-0001, 810822-0001, 810822-0002, 810822-0003, 819968-0001.



SW-G111 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G111

SW-G111 - Compatibility table

Shaft and wheel SW-G111 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTB2260VZK799671-0001059145874C, 059145874L, 059145874T
GarrettGTB2260VZK799671-0002059145874C, 059145874L, 059145874T
Garrett804985-0001--
GarrettGTB2260VZK810822-0001--
GarrettGTB2260VZK810822-0002059145874C, 059145874L, 059145874T
GarrettGTB2260VZK810822-0003--
GarrettGTB2260VZK819968-0001059145874C, 059145874L, 059145874T

SW-G111 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 50.0

Exducer Diameter B (Exducer Diameter B): 44.6

Tip Height C (Tip Height C): 9.8

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 99.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT15-25

059145874C, 059145874L, 059145874T, 799671-0001, 059145874C, 059145874L, 059145874T, 799671-0002, 810822-0001, 059145874C, 059145874L, 059145874T, 810822-0002, 810822-0003, 059145874C, 059145874L, 059145874T, 819968-0001

Data updated: 2023-11-09 14:35:53
