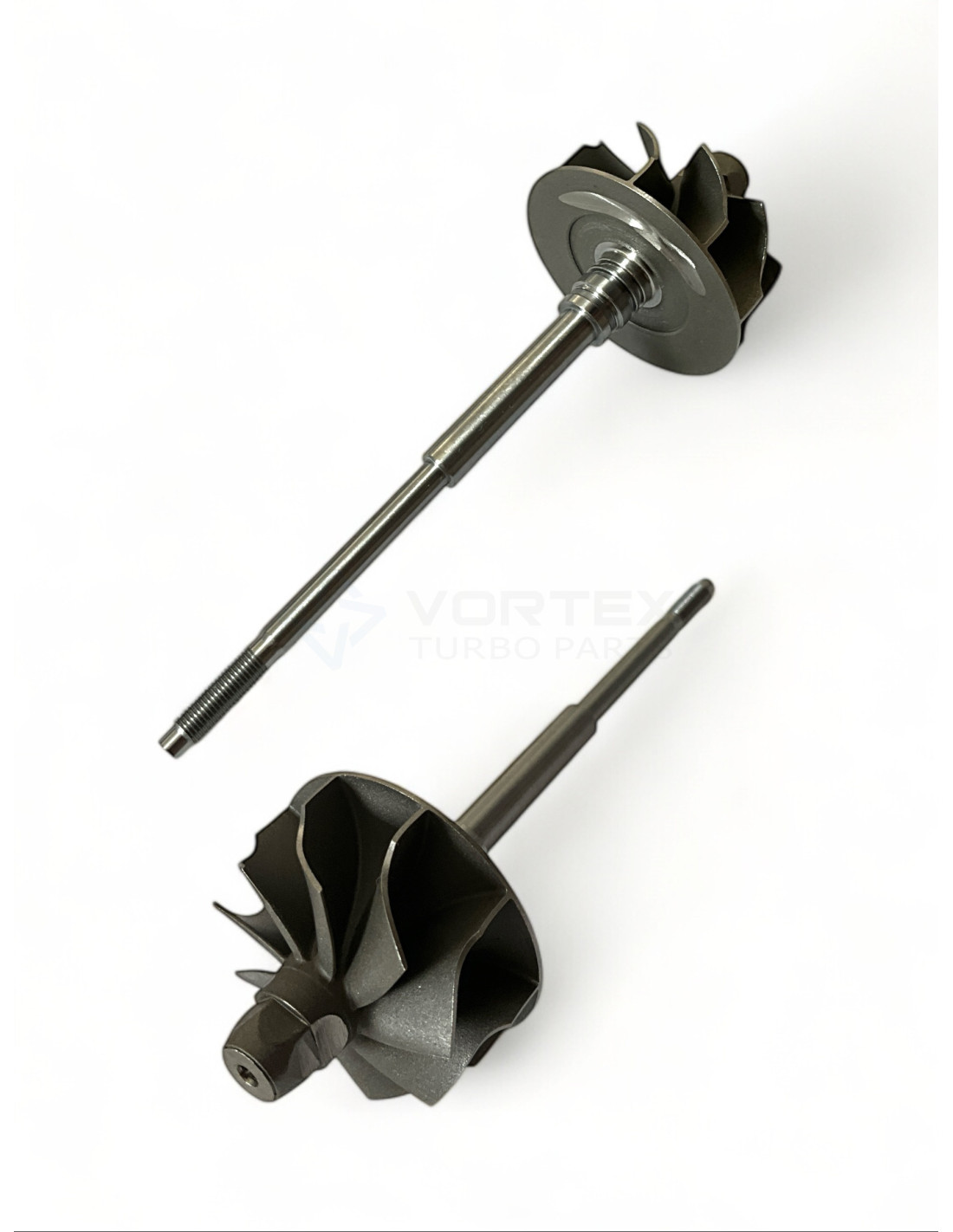

Shaft and wheel SW-K064
Shaft and wheel SW-K064

Shaft and wheel SW-K064

SW-K064
New
In Stock (21 Items)
€37.75
Tax included

Shaft and wheel SW-K064 for turbos 54399700086, 54399700091, 54399700094, 54399700098, 54399700114, 54399700136, 54399700141.



SW-K064 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-K064

SW-K064 - Compatibility table

Shaft and wheel SW-K064 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerBV39-1674KCB340.18AVAXC5439970008603L253016A
BorgWarner54399700091--
BorgWarnerBV39-1674KCB340.18AVAXC5439970009403L253016A
BorgWarnerBV39-1674KCB340.18AVAXC5439970009803L253016H
BorgWarnerBV39-1674KCB340.18AVAXC5439970011403L253056D
BorgWarnerBV39-1674KCB340.18AVAXC5439970013603L253056R
BorgWarner54399700141--

SW-K064 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 38.5

Exducer Diameter B (Exducer Diameter B): 34.5

Tip Height C (Tip Height C): 6.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.1

Shaft Length (mm) (Shaft Length (mm)): 83.5

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Single

Model (Model): KP/BV39

54399700136, 54399700114, 54399700098, 54399700094, 54399700086, 03L253016A, 5439 970 0086, 54399700091, 03L253016A, 5439 970 0094, 03L253016H, 5439 970 0098, 03L253056D, 5439 970 0114, 03L253056R, 5439 970 0136, 54399700141

Data updated: 2024-09-16 19:16:01
