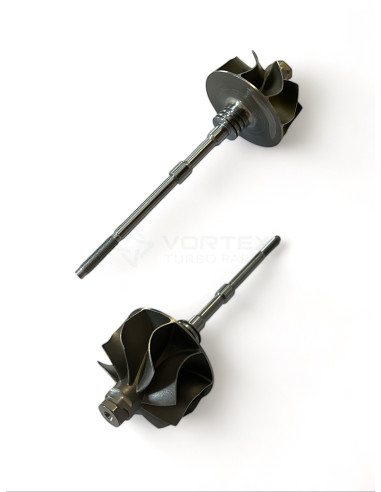

Shaft and wheel SW-G007
Shaft and wheel SW-G007

Shaft and wheel SW-G007

SW-G007
New
In Stock (30 Items)
€31.46
Tax included

Shaft and wheel SW-G007 for turbos 823665-0001, 823665-0007, 823665-0009, 831120-0005, 831120-0006, 831120-0009, 831157-0002, 836265-0001, 836625-0001, 838417-0001.



SW-G007 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G007

SW-G007 - Compatibility table

Shaft and wheel SW-G007 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTD1449VZ823665-0001823665-0001
GarrettGTD1449VZ823665-0007823665-0007
GarrettGTD1449VZ823665-0009823665-0009
GarrettGTD1449VK831120-0005831120-0005
GarrettGTD1449VK831120-0006831120-0006, 831120-0007, 831120-0008, 831120-0010
GarrettGTD1449VK831120-0009831120-0009
GarrettGTD1449VKZ831157-0002831157-0002, 831157-0003, 831157-0004, 831157-0005, 831157-0006, 831157-0007
GarrettGTD1446VZ836265-0001836265-0001
GarrettGTD1446VZ836625-0001--
GarrettGTD1444VZ838417-0001838417-0001, 838417-0002, 838417-0003
GarrettGTD1444VZ838417-0004838417-0004
GarrettGTD1444VZ838417-0006838417-0006
GarrettGTD1444VZ838452-0001838452-0001
GarrettGTD1444VZ838452-0002838452-0002, 838452-0003, 838452-0004
GarrettGTD1444VZ838452-0007838452-0007
GarrettGTD1446VZ839413-0002--
GarrettGTD1446VZ843259-0001--
GarrettGTD1446VZ843259-0003--
GarrettGTD1446VZ843259-0006--
GarrettGTD1446VZ846108-0002--
GarrettGTD1446VZ846108-0003--
GarrettGTD1446VZ846108-0009--
GarrettGTD1446VZ850326-0001850326-0001
GarrettGT1449VZK870885-0005--
GarrettGTD1446VZ873597-0001--
GarrettGTD1449VK873798-0003873798-0003
GarrettGTD1446VZ875247-0001875247-0001
GarrettGTD1449VZK876358-0001--
GarrettGTD1449VZK876358-0002--
GarrettGTD1449VZK876358-0003--
GarrettGTD1449VZK876358-0004--
GarrettGTD1449VK882740-0001882740-0001
GarrettGTD1449VK887526-0001887526-0001
GarrettGTD1449VKZ889938-0001889938-0001
GarrettGTD1449VKZ889938-0003889938-0003
GarrettGTD1449VK894474-0001894474-0001
GarrettGTD1449VKZL911025-0001--

SW-G007 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 39.0

Exducer Diameter B (Exducer Diameter B): 35.7

Tip Height C (Tip Height C): 8.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0

Shaft Length (mm) (Shaft Length (mm)): 80.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT14

823665-0001, 823665-0007, 823665-0009, 831120-0005, 831120-0006, 831120-0007, 831120-0008, 831120-0010, 831120-0009, 831157-0002, 831157-0003, 831157-0004, 831157-0005, 831157-0006, 831157-0007, 836265-0001, 836625-0001, 838417-0001, 838417-0002, 838417-0003, 838417-0004, 838417-0006, 838452-0001, 838452-0002, 838452-0003, 838452-0004, 838452-0007, 839413-0002, 843259-0001, 843259-0003, 843259-0006, 846108-0002, 846108-0003, 846108-0009, 850326-0001, 870885-0005, 873597-0001, 873798-0003, 875247-0001, 876358-0001, 876358-0002, 876358-0003, 876358-0004, 882740-0001, 887526-0001, 889938-0001, 889938-0003, 894474-0001, 911025-0001

Data updated: 2024-09-30 19:07:58
