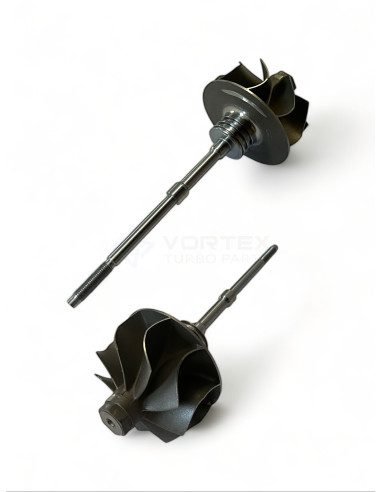

Shaft and wheel SW-G027
Shaft and wheel SW-G027

Shaft and wheel SW-G027

SW-G027
New
Out-of-Stock
€39.64
Tax included

Shaft and wheel SW-G027 for turbos 785448-0003, 785448-0005, 804888-0003, 809415-0001, 809415-0002, 809415-0004, 817047-0001, 817083-0001, 818987-0001, 818987-0002.




SW-G027 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G027

SW-G027 - Compatibility table

Shaft and wheel SW-G027 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTC1449MVZ785448-000303L253010E, 03L253010F
GarrettGTC1449MVZ785448-000503L253010E, 03L253010F
GarrettGTC1449VZ804888-0003--
GarrettGTC1549VZ809415-0001--
GarrettGTC1549VZ809415-0002--
GarrettGTC1549VZ809415-0004--
GarrettGTC1549VZ817047-000103L145721B
GarrettGTC1446VKZ817083-0001--
GarrettGTC1549VZ818987-000103L145721BV100
GarrettGTC1549VZ818987-000203L145721BV100
GarrettGTC1446VKZ818990-0001--
GarrettGTC1446VKZ818990-0002--

SW-G027 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 41.0

Exducer Diameter B (Exducer Diameter B): 37.5

Tip Height C (Tip Height C): 9.2

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0

Shaft Length (mm) (Shaft Length (mm)): 80.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT14

03L253010E, 03L253010F, 785448-0003, 03L253010E, 03L253010F, 785448-0005, 804888-0003, 809415-0001, 809415-0002, 809415-0004, 03L145721B, 817047-0001, 817083-0001, 03L145721BV100, 818987-0001, 03L145721BV100, 818987-0002, 818990-0001, 818990-0002

Data updated: 2024-10-01 16:36:12
