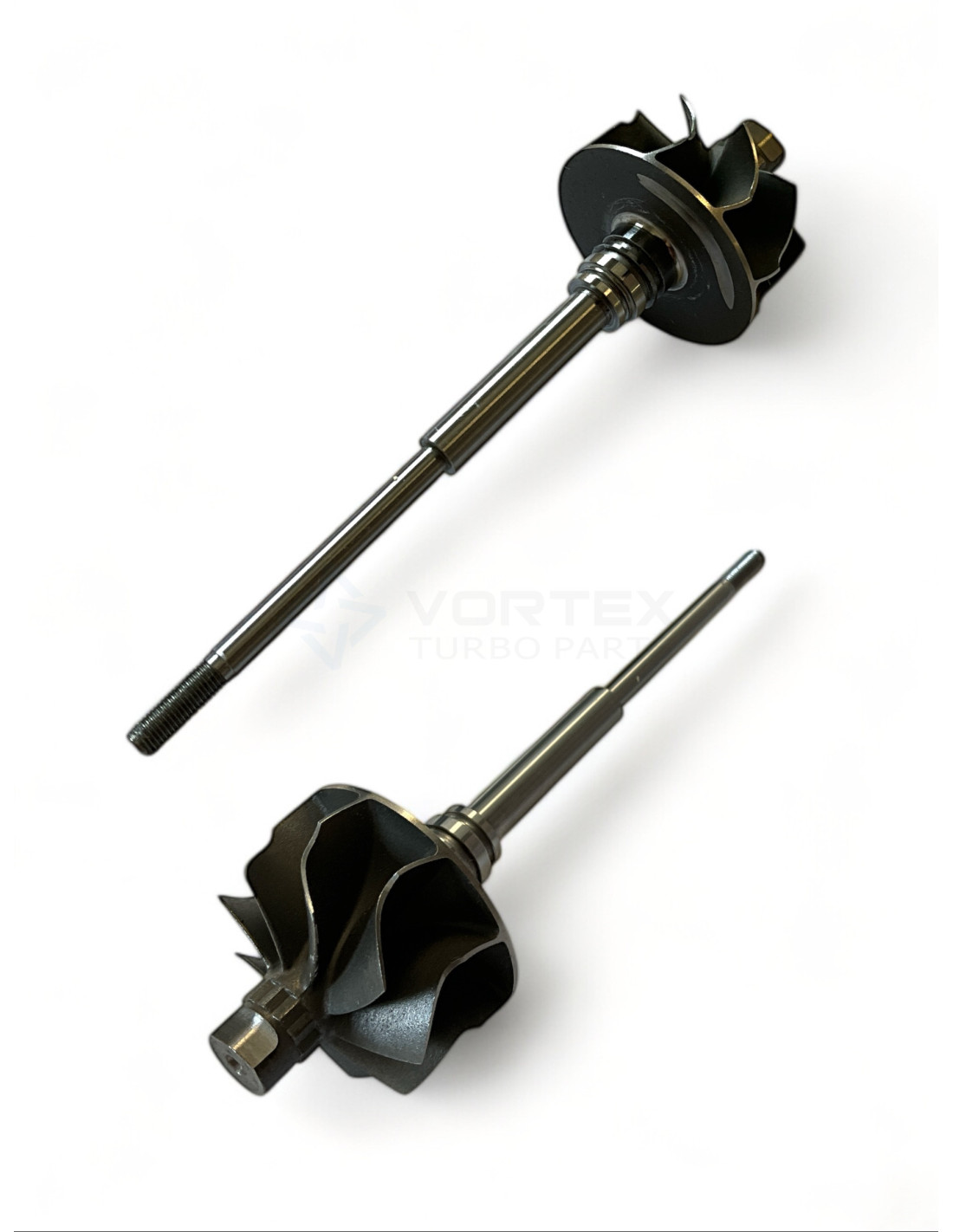

Shaft and wheel SW-BM003
SW-BM003
New
Please login to see prices and stock
Shaft and wheel SW-BM003 for turbos 11658513652, 11658514267.
SW-BM003 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-BM003
SW-BM003 - Compatibility table
| Shaft and wheel SW-BM003 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| BMTS | BMO | 11658513652 | 11658513652 |
| BMTS | BMO | 11658514267 | 11658514267 |
SW-BM003 - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 35.5
Exducer Diameter B (Exducer Diameter B): 32.7
Tip Height C (Tip Height C): 7.0
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.5
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.3
Shaft Length (mm) (Shaft Length (mm)): 90.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Model (Model): BM65
11658513652, 11658514267
Data updated: 2025-08-29 11:30:58
