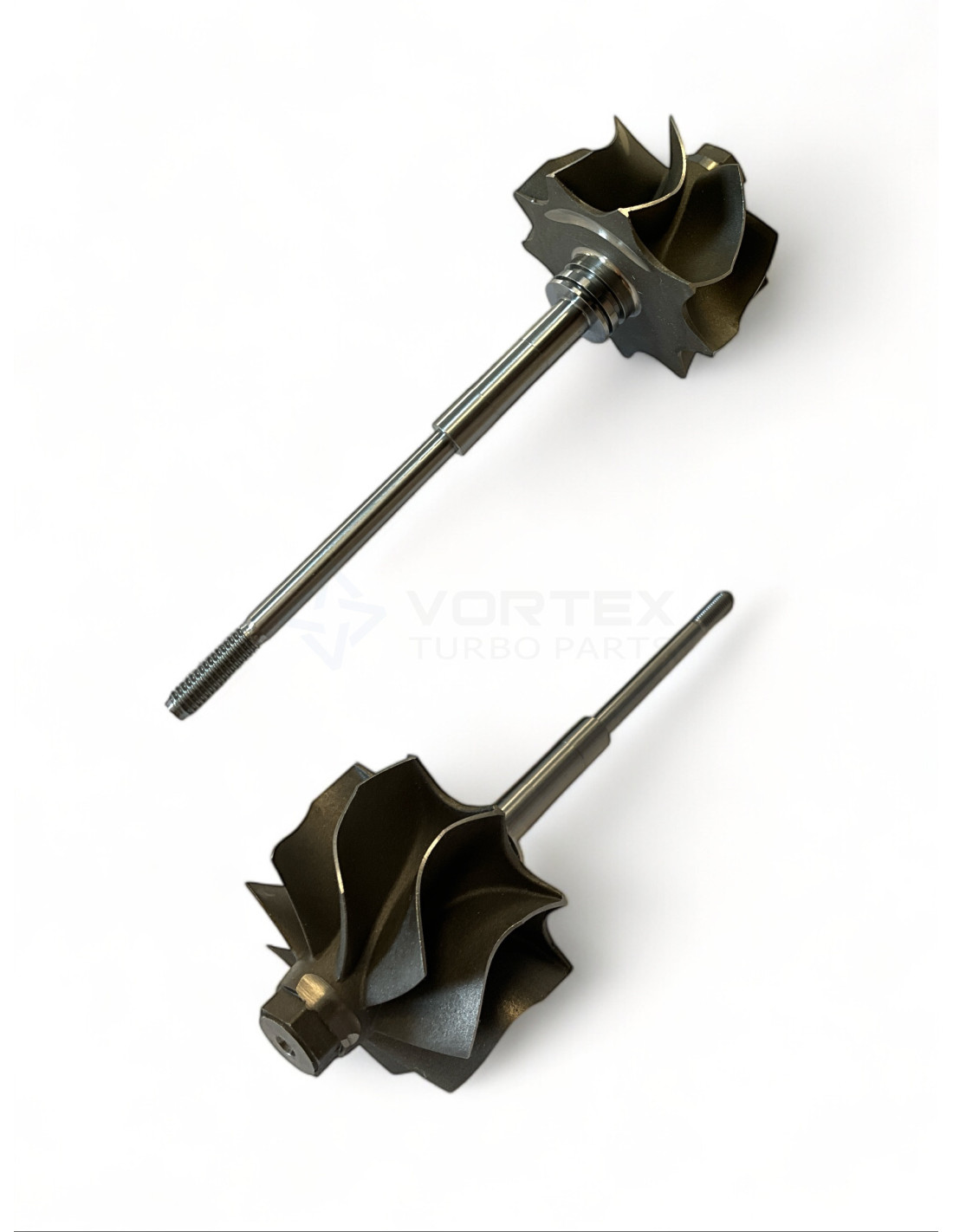

Shaft and wheel SW-G115
Shaft and wheel SW-G115

Shaft and wheel SW-G115

SW-G115
New
Last items in stock (4 Items)
€36.18
Tax included

740244-0001, SW-G115

Shaft and wheel SW-G115 for turbos 454191-0008, 454191-0009, 454191-0010, 454191-0011, 454191-0012, 454191-0013, 725364-0006, 725364-0007, 725364-0012, 725364-0018.



SW-G115 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G115

SW-G115 - Alternative numbers

GHO (Garrett original part number): 740244-0001

SW-G115 - Compatibility table

Shaft and wheel SW-G115 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT2556V454191-000811652248906, 11652248907, 2247691H
GarrettGT2556V454191-00092248906H
GarrettGT2556V454191-00102248906H
GarrettGT2556V454191-001111652248906, 11652248907, 2247691H
GarrettGT2556V454191-00122248906H
GarrettGT2556V454191-00132248907H
GarrettGTA2260V725364-00067789083E
GarrettGTA2260V725364-000711657789083, 7789081G
GarrettGTA2260V725364-00127789083H
GarrettGTA2260V725364-00187789083J
GarrettGTA2260V725364-00217789083L09
GarrettGTA2260V725364-00227789083L09
GarrettGT2260V728989-000111657790328, 11657794025
GarrettGT2260V728989-00037790328D
GarrettGT2260V728989-000711657790328, 11657794025, 7790326G
GarrettGTA2260V742417-0001--
GarrettGT2260V750773-000111657790311, 7790309E
GarrettGT2260V750773-0004--
GarrettGT2260V750773-0007--
GarrettGT2260V750773-0013--
GarrettGT2260V750773-0017--
GarrettGTA2260V753392-000111657791046, 7791044F
GarrettGTA2260V753392-00037791046F
GarrettGTA2260V753392-00157791046K
GarrettGTA2260V753392-001611657791046, 791044M09
GarrettGTA2260V753392-001711657791046, 7791045M09
GarrettGTA2260V753392-00187791046M09
GarrettGTA2260V753392-00197791046M09

SW-G115 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 50.0

Exducer Diameter B (Exducer Diameter B): 46.0

Tip Height C (Tip Height C): 9.4

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 99.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

11652248906, 11652248907, 2247691H, 454191-0008, 2248906H, 454191-0009, 2248906H, 454191-0010, 11652248906, 11652248907, 2247691H, 454191-0011, 2248906H, 454191-0012, 2248907H, 454191-0013, 725364-0006, 7789083E, 11657789083, 725364-0007, 7789081G, 725364-0012, 7789083H, 725364-0018, 7789083J, 725364-0021, 7789083L09, 725364-0022, 7789083L09, 11657790328, 11657794025, 728989-0001, 728989-0003, 7790328D, 11657790328, 11657794025, 728989-0007, 7790326G, 742417-0001, 11657790311, 750773-0001, 7790309E, 750773-0004, 750773-0007, 750773-0013, 750773-0017, 11657791046, 753392-0001, 7791044F, 753392-0003, 7791046F, 753392-0015, 7791046K, 11657791046, 753392-0016, 791044M09, 11657791046, 753392-0017, 7791045M09, 753392-0018, 7791046M09, 753392-0019, 7791046M09

Data updated: 2024-09-06 15:55:07
