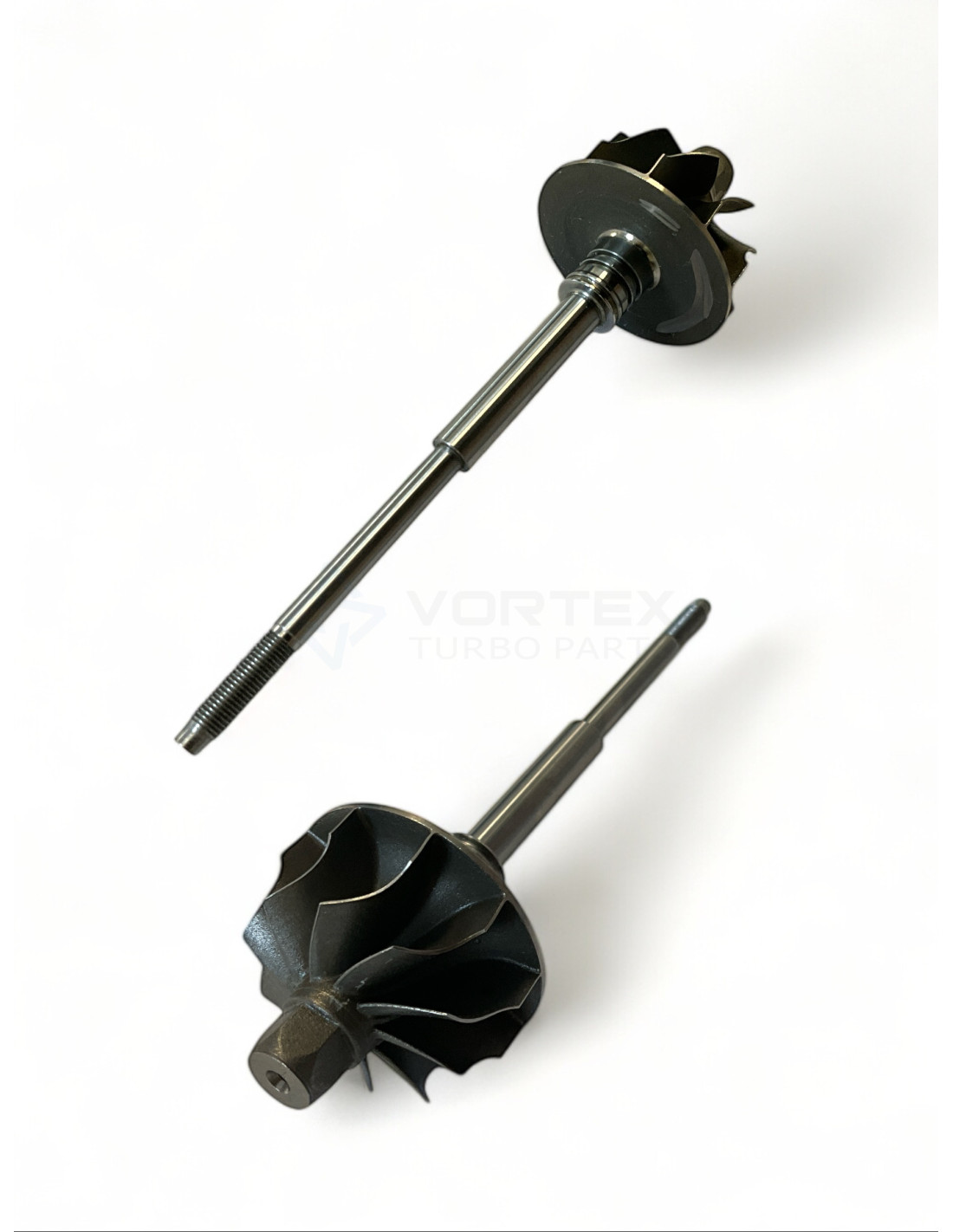

Shaft and wheel SW-B001R
SW-B001R
New
In Stock
(9 Items)
€50.34
Tax included
Shaft and wheel SW-B001R for turbos 16339700022, 16339700036, 16339700037.
SW-B001R - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-B001R
SW-B001R - Compatibility table
| Shaft and wheel SW-B001R - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| BorgWarner | B01G | 16339700022 | -- |
| BorgWarner | B01G | 16339700036 | 04C145703M |
| BorgWarner | B01G | 16339700037 | 04C145703H |
SW-B001R - Part Properties
Blades (Shaft blades count): 10
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 33.0
Exducer Diameter B (Exducer Diameter B): 28.3
Tip Height C (Tip Height C): 5.7
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.1
Shaft Length (mm) (Shaft Length (mm)): 83.5
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Rotation (Rotation): Reverse
Model (Model): B01
16339700037, 16339700036, 16339700022, 1633 970 0022, 04C145703M, 1633 970 0036, 04C145703H, 1633 970 0037
Data updated: 2023-11-09 15:20:16
