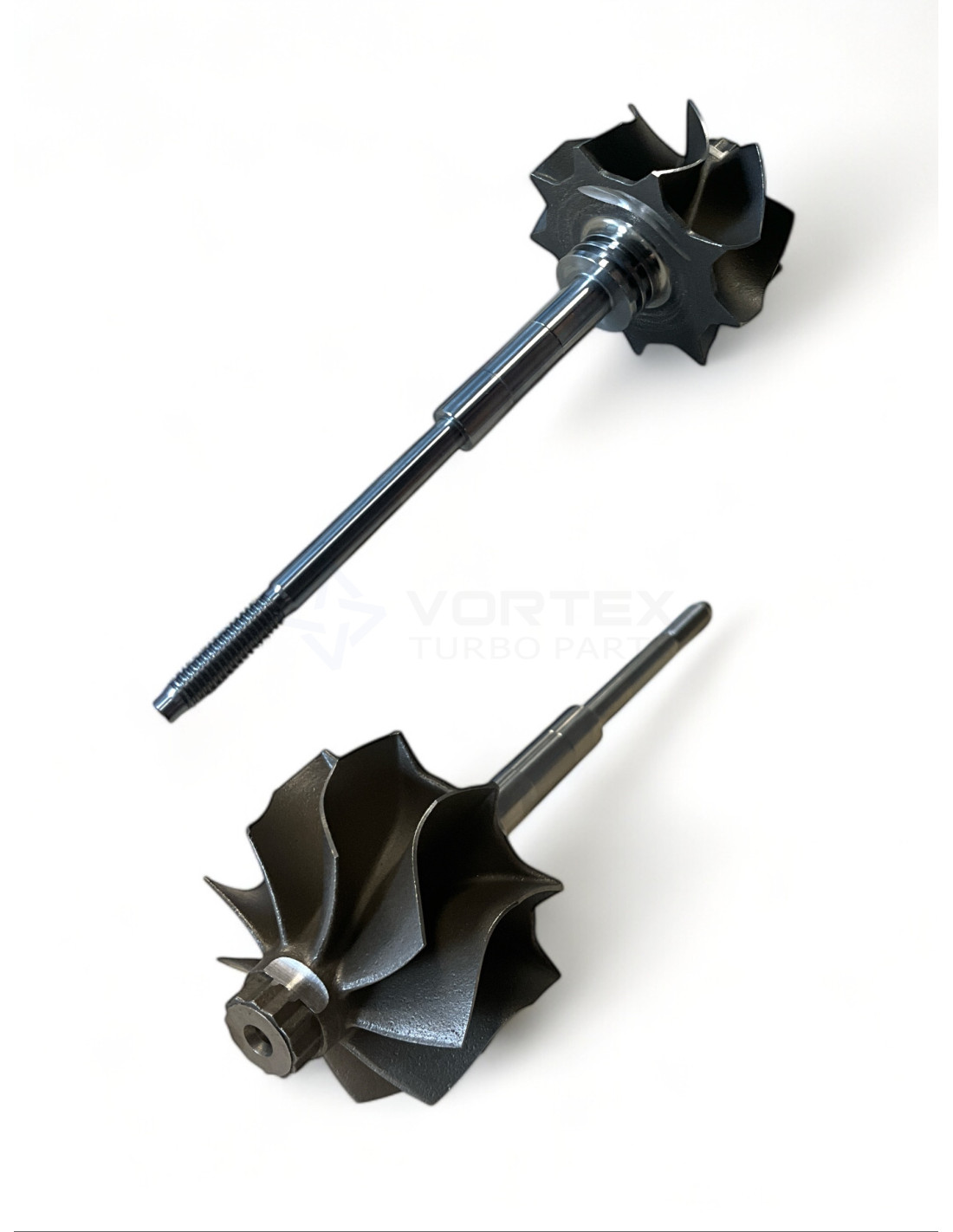

Shaft and wheel SW-G009 for turbos 765314-0003, 765314-0004, 767805-0002, 767805-0003, 767805-0004, 777159-0002, 777159-0003, 777162-0001, 800089-0001, 800089-0003.




SW-G009 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G009

SW-G009 - Compatibility table

Shaft and wheel SW-G009 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTB1756VK765314-0003--
GarrettGTB1756VK765314-0004--
GarrettGTB1756VK767805-0002059145721B, 059145721G
GarrettGTB1756VK767805-0003059145721B, 059145721G
GarrettGTB1756VK767805-0004059145721B, 059145721G
GarrettGTB1756VK777159-0002059145721B, 059145721G
GarrettGTB1756VK777159-0003059145721B, 059145721G
GarrettGTB1756VK777162-0001--
GarrettGTB1756VK800089-0001AH4Q6K682GA, LR022790
GarrettGTB1756VK800089-0003AH4Q6K682GB, LR022790
GarrettGTB17802733-0004--

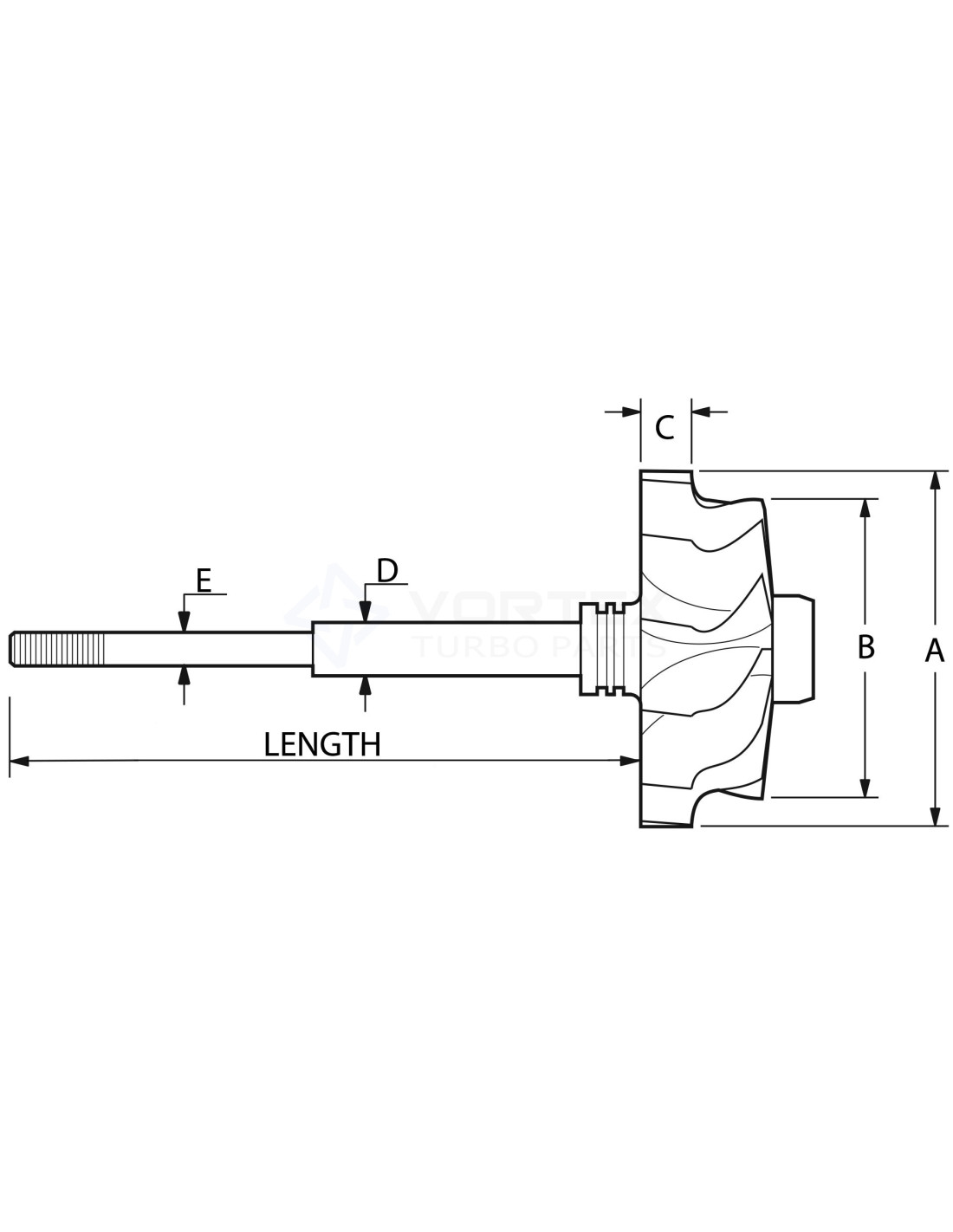

SW-G009 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 43.0

Exducer Diameter B (Exducer Diameter B): 39.3

Tip Height C (Tip Height C): 9.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 99.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT15-25

765314-0003, 765314-0004, 059145721B, 059145721G, 767805-0002, 059145721B, 059145721G, 767805-0003, 059145721B, 059145721G, 767805-0004, 059145721B, 059145721G, 777159-0002, 059145721B, 059145721G, 777159-0003, 777162-0001, 800089-0001, AH4Q6K682GA, LR022790, 800089-0003, AH4Q6K682GB, LR022790, 802733-0004
