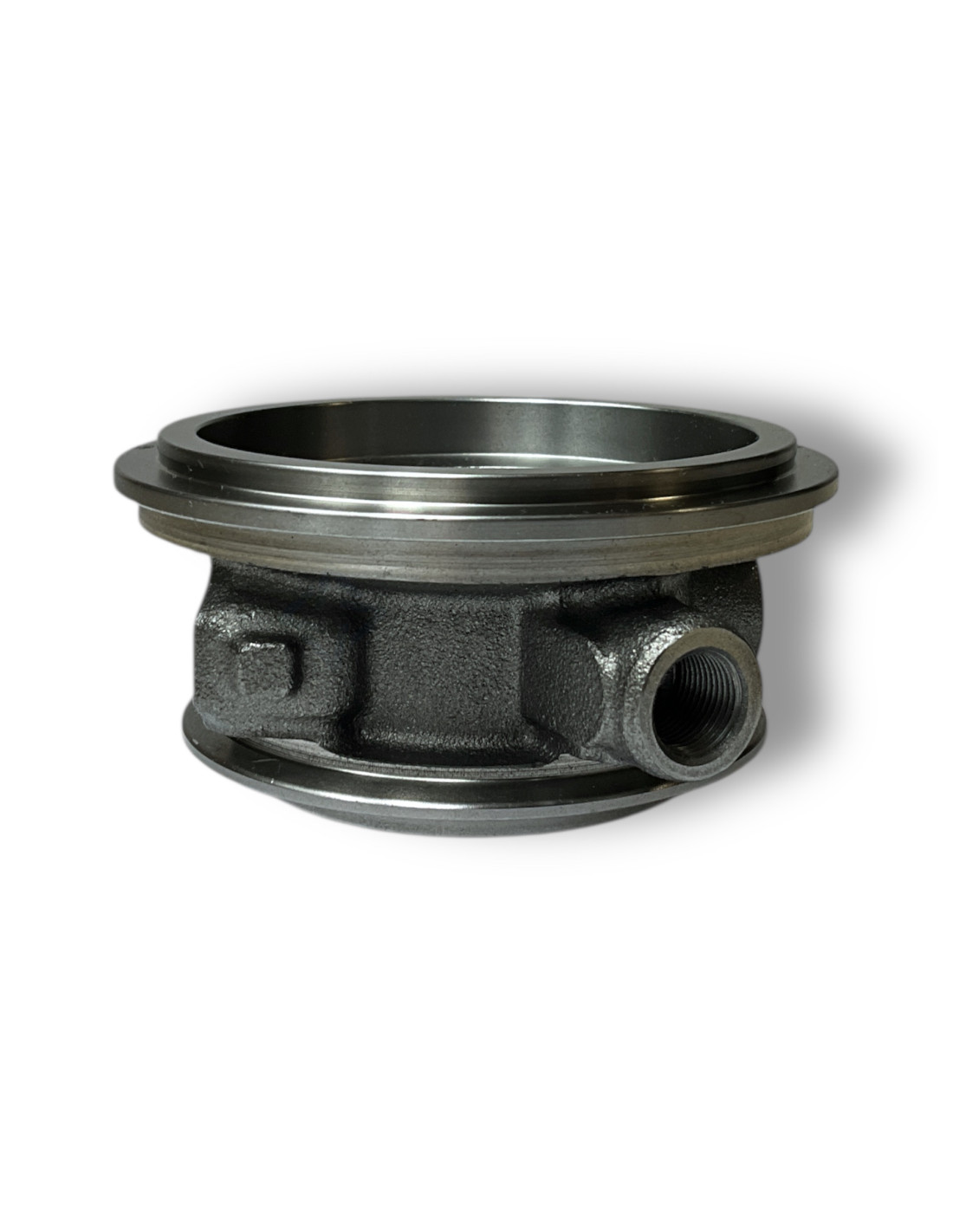

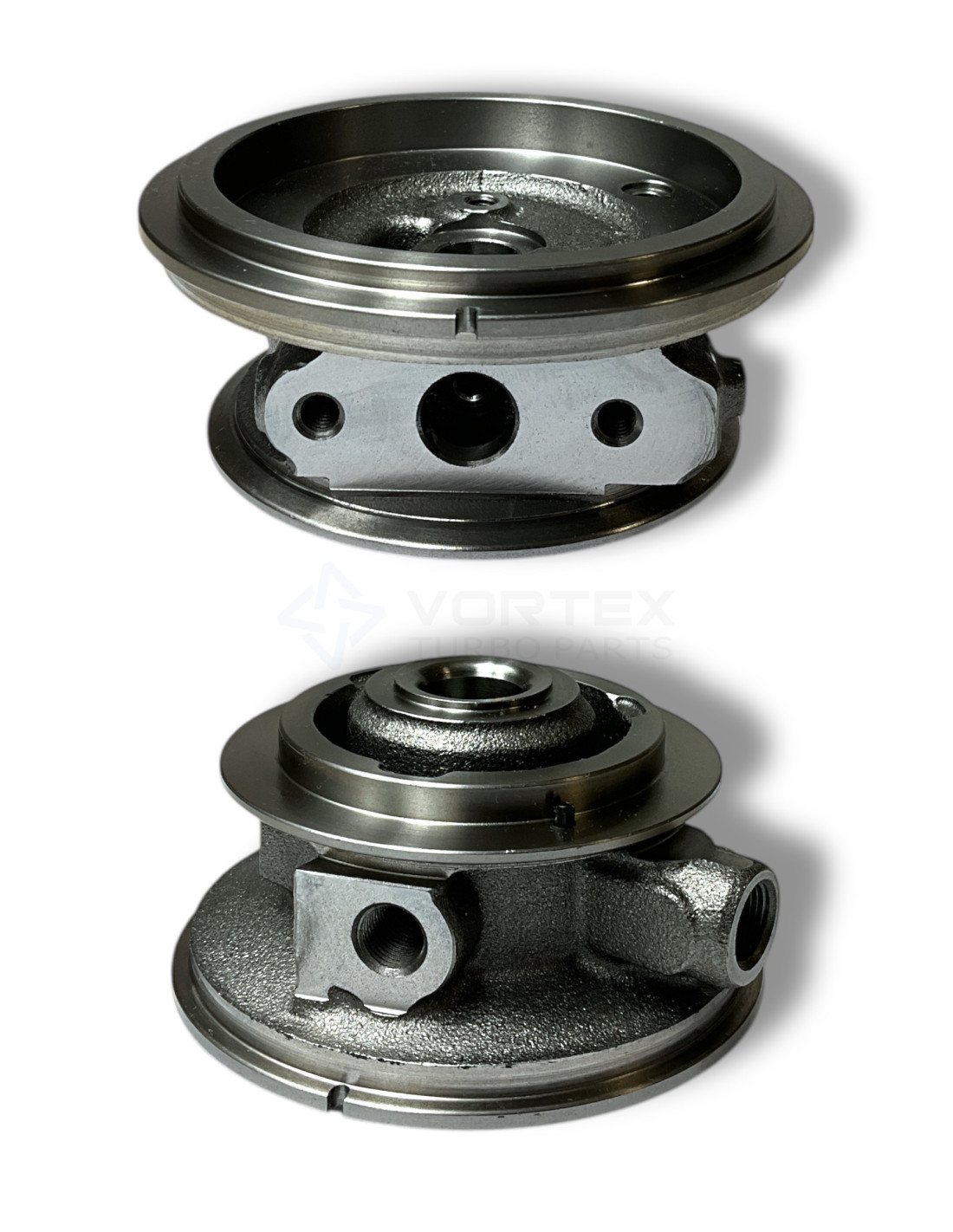

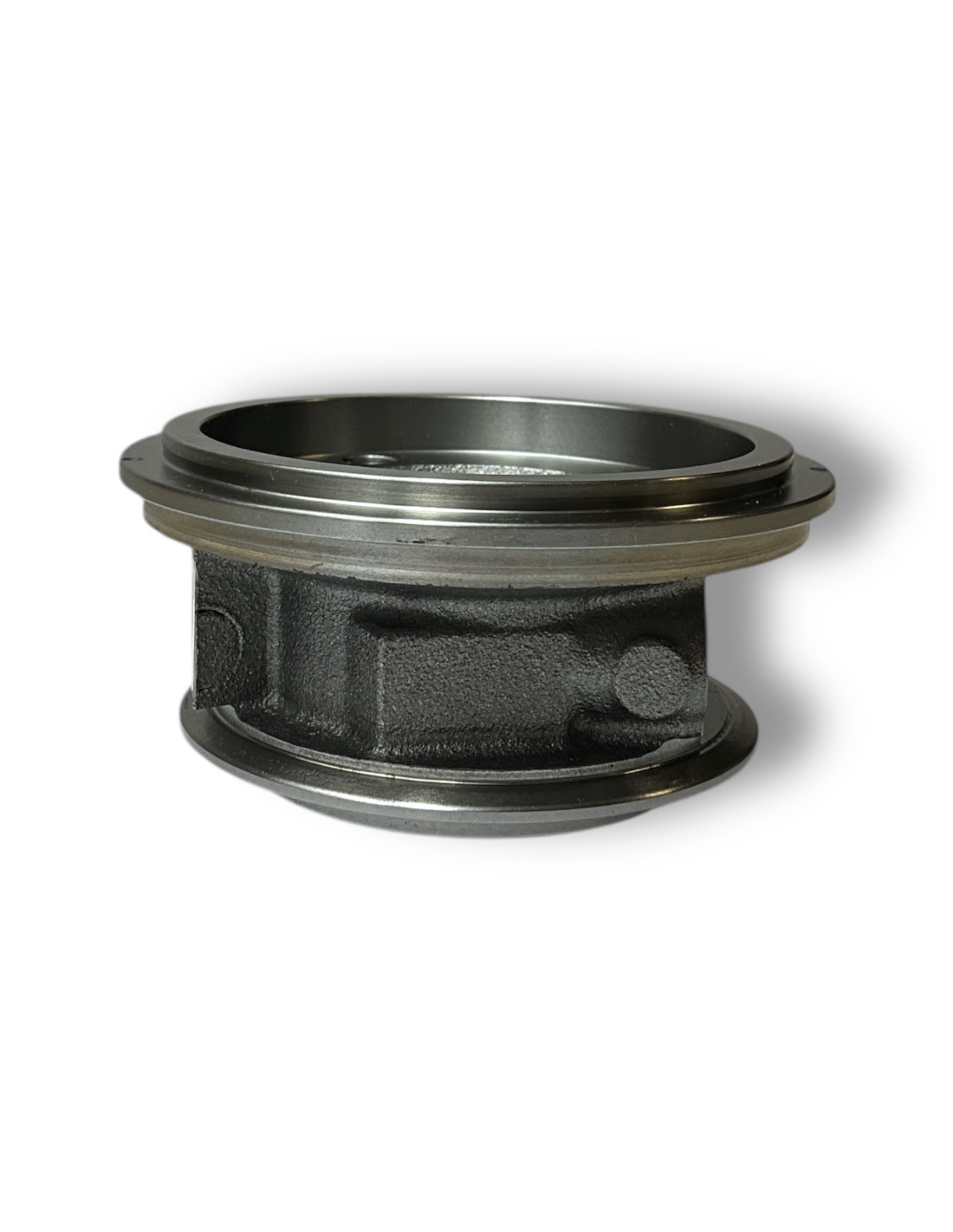

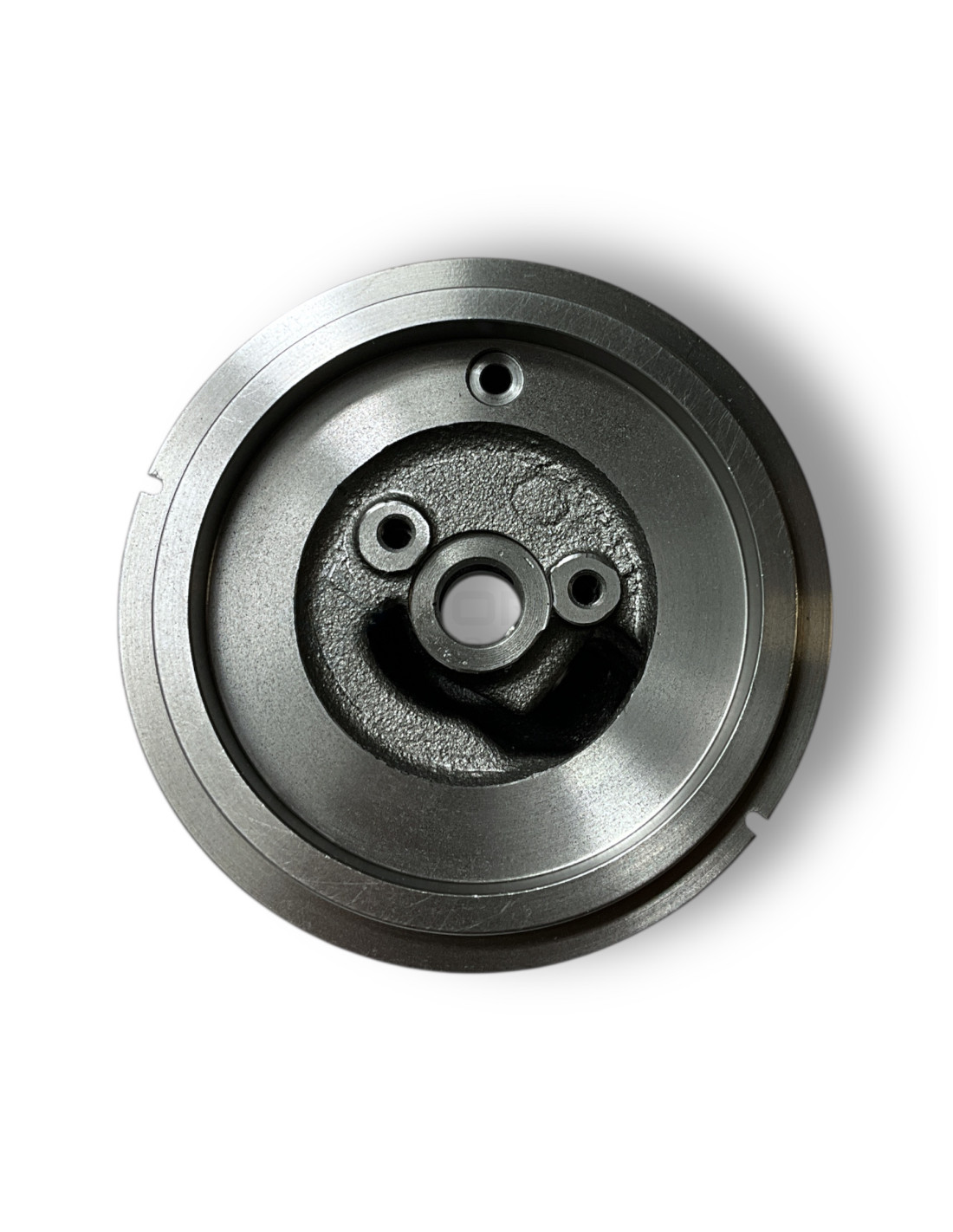

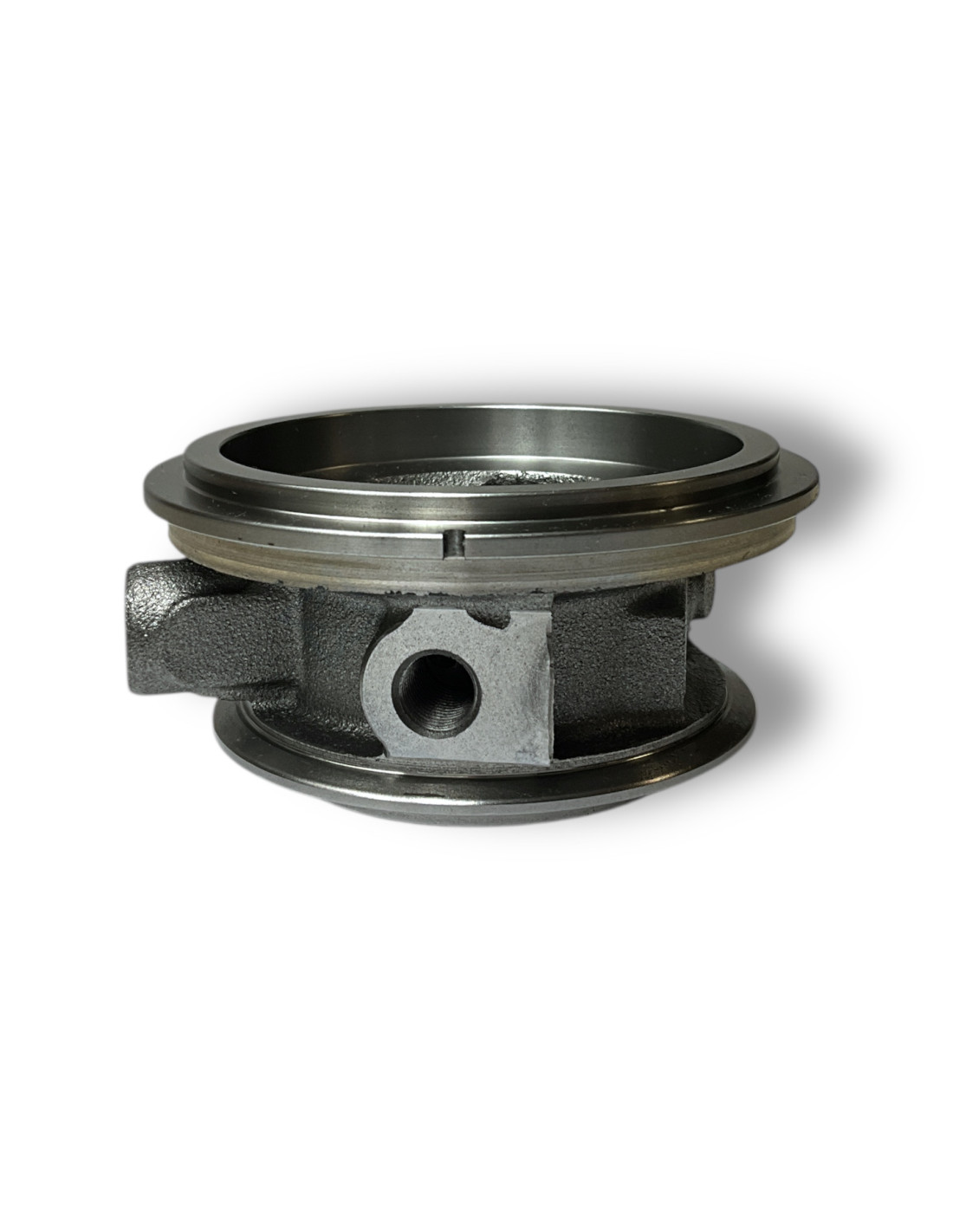

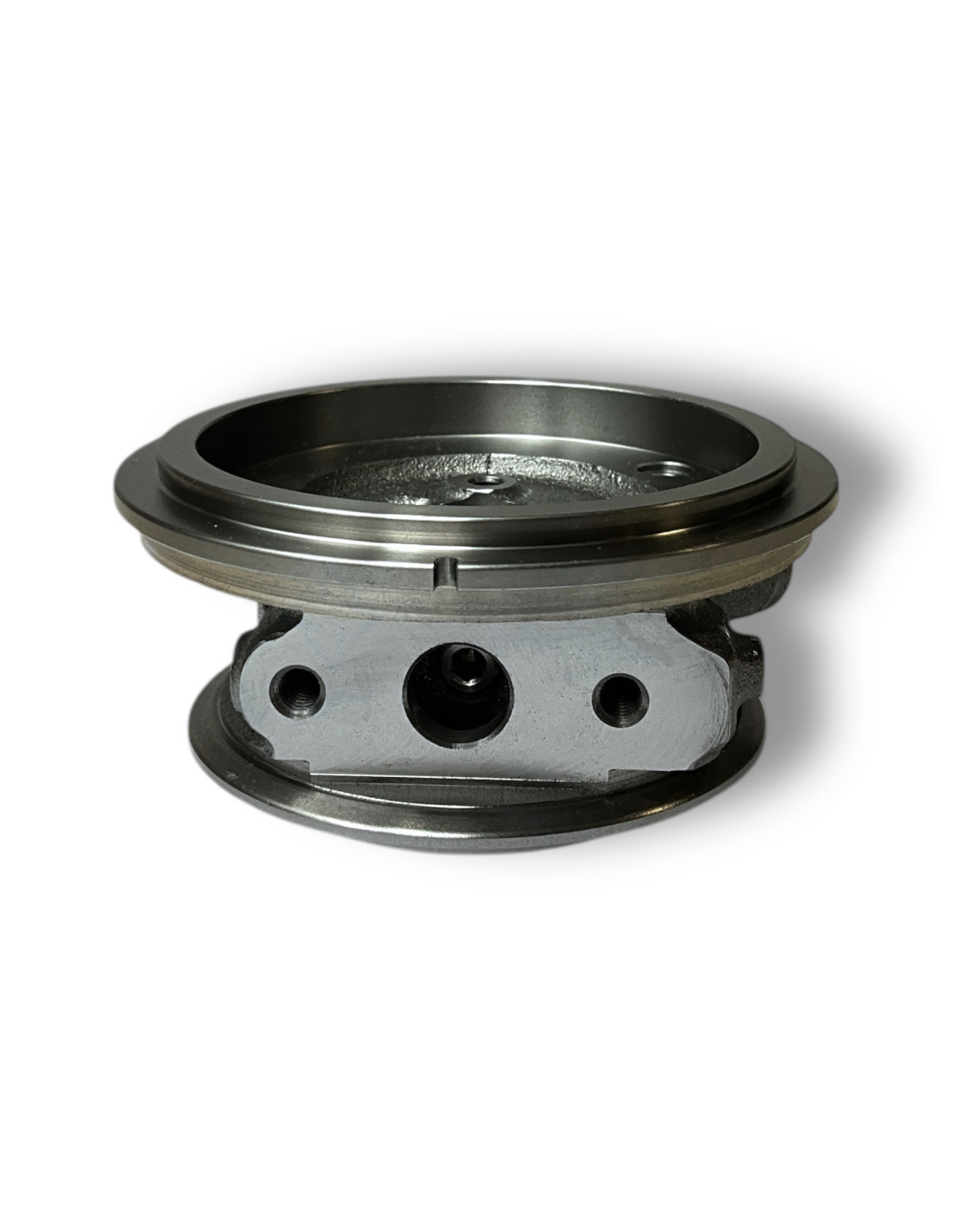

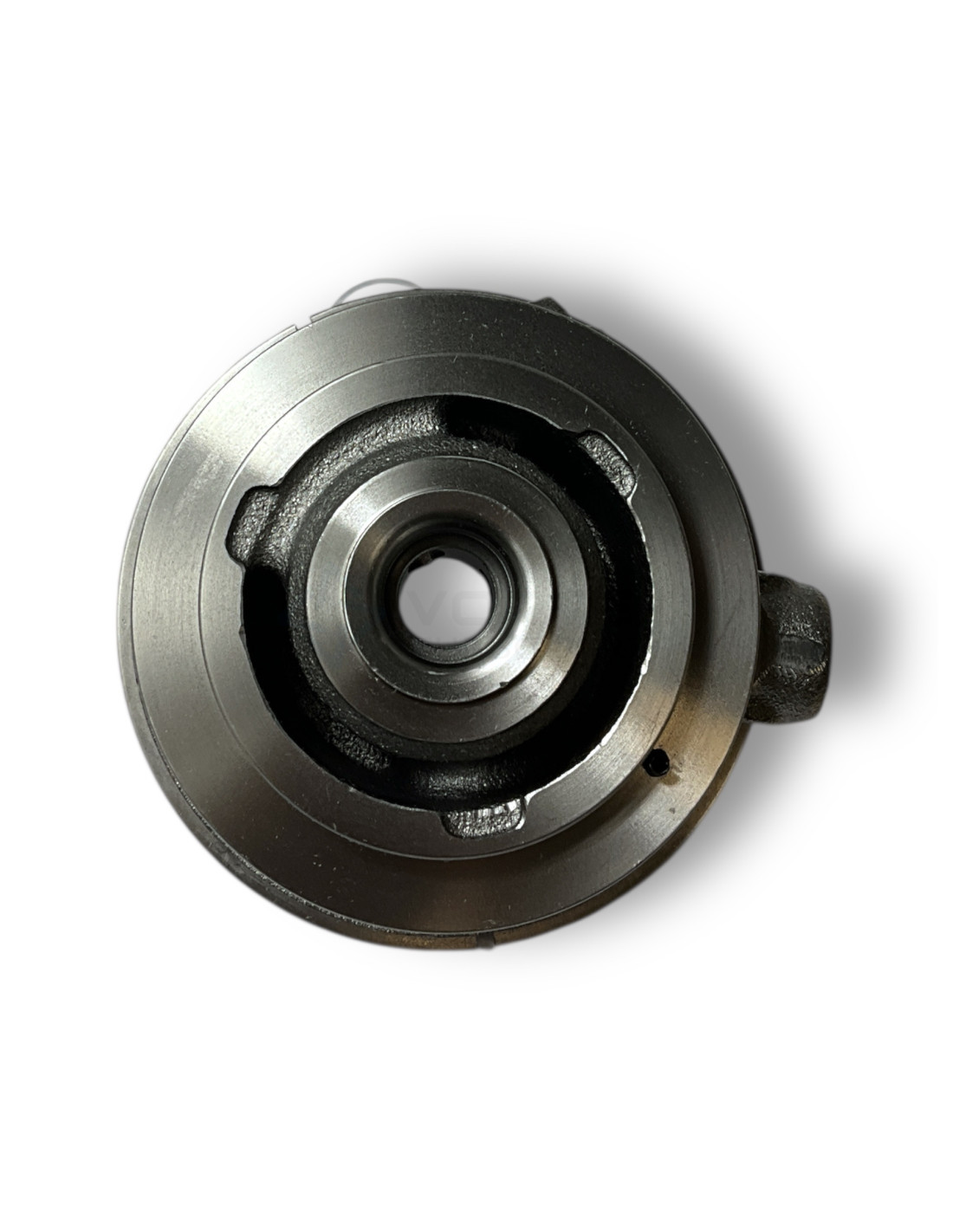

Bearing housing BH-G037
Bearing housing BH-G037 for turbos 778401-0004, 778401-0005, 778401-0006, 778401-0007, 778401-0008, 778401-0010, 778401-0011, 778401-0012, 778402-0005, 778402-0012.
BH-G037 - Bearing housing
Brand: Vortex
Vortex Reference: BH-G037
BH-G037 - Compatibility table
| Bearing housing BH-G037 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GT1444Z VTC | 778401-0004 | AH2Q6K682AC, LR013205 |
| Garrett | GT1444Z | 778401-0005 | AH2Q6K682AD, AH2Q6K682AF, LR013205, LR021254, LR032370, LR038620, LR056370, LR063777 |
| Garrett | GT1444Z + VTC | 778401-0006 | AH2Q6K682AE, LR032370 |
| Garrett | GT14 | 778401-0007 | -- |
| Garrett | GT1444Z | 778401-0008 | AH2Q6K682AF, LR038620 |
| Garrett | GT1444Z VTC | 778401-0010 | AH2Q6K682AH |
| Garrett | GT1444Z + VTC | 778401-0011 | AH2Q6K682AJ, LR063777 |
| Garrett | GT1444Z + VTC | 778401-0012 | AH2Q6K682AK, LR063777 |
| Garrett | GT1444Z | 778402-0005 | 778402-0004, 778402-0005, 778402-0006, 778402-0008, 778402-0010 |
| Garrett | GT1444Z | 778402-0012 | 778402-0004, 778402-0005, 778402-0006, 778402-0008, 778402-0012 |
| Garrett | GT1444Z | 795221-0011 | -- |
BH-G037 - Part Properties
Compressor End Diameter A (Compressor End Diameter A): 95.0
Compressor End Diameter B (Compressor End Diameter B): 84.2
Turbine End Diameter C (Turbine End Diameter C): 78.5
Turbine End Diameter D (Turbine End Diameter D): 60.5
Oil Inlet Diameter E (Oil Inlet Diameter E): M10X1
778401-0004, AH2Q6K682AC, LR013205, 778401-0005, AH2Q6K682AD, AH2Q6K682AF, LR013205, LR021254, LR032370, LR038620, LR056370, LR063777, 778401-0006, AH2Q6K682AE, LR032370, 778401-0007, 778401-0008, AH2Q6K682AF, LR038620, 778401-0010, AH2Q6K682AH, 778401-0011, AH2Q6K682AJ, LR063777, 778401-0012, AH2Q6K682AK, LR063777, 778402-0004, 778402-0005, 778402-0006, 778402-0008, 778402-0010, 778402-0004, 778402-0005, 778402-0006, 778402-0008, 778402-0012, 795221-0011
