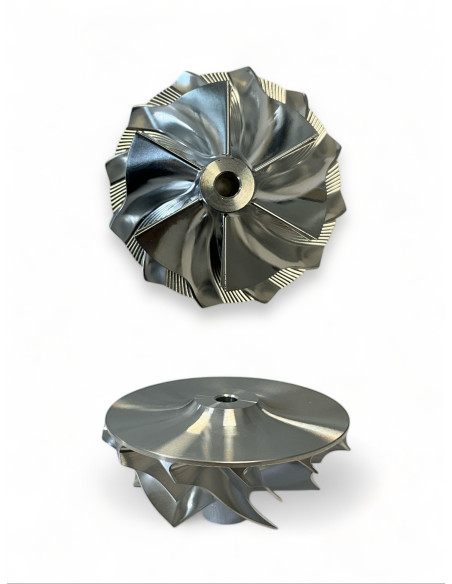

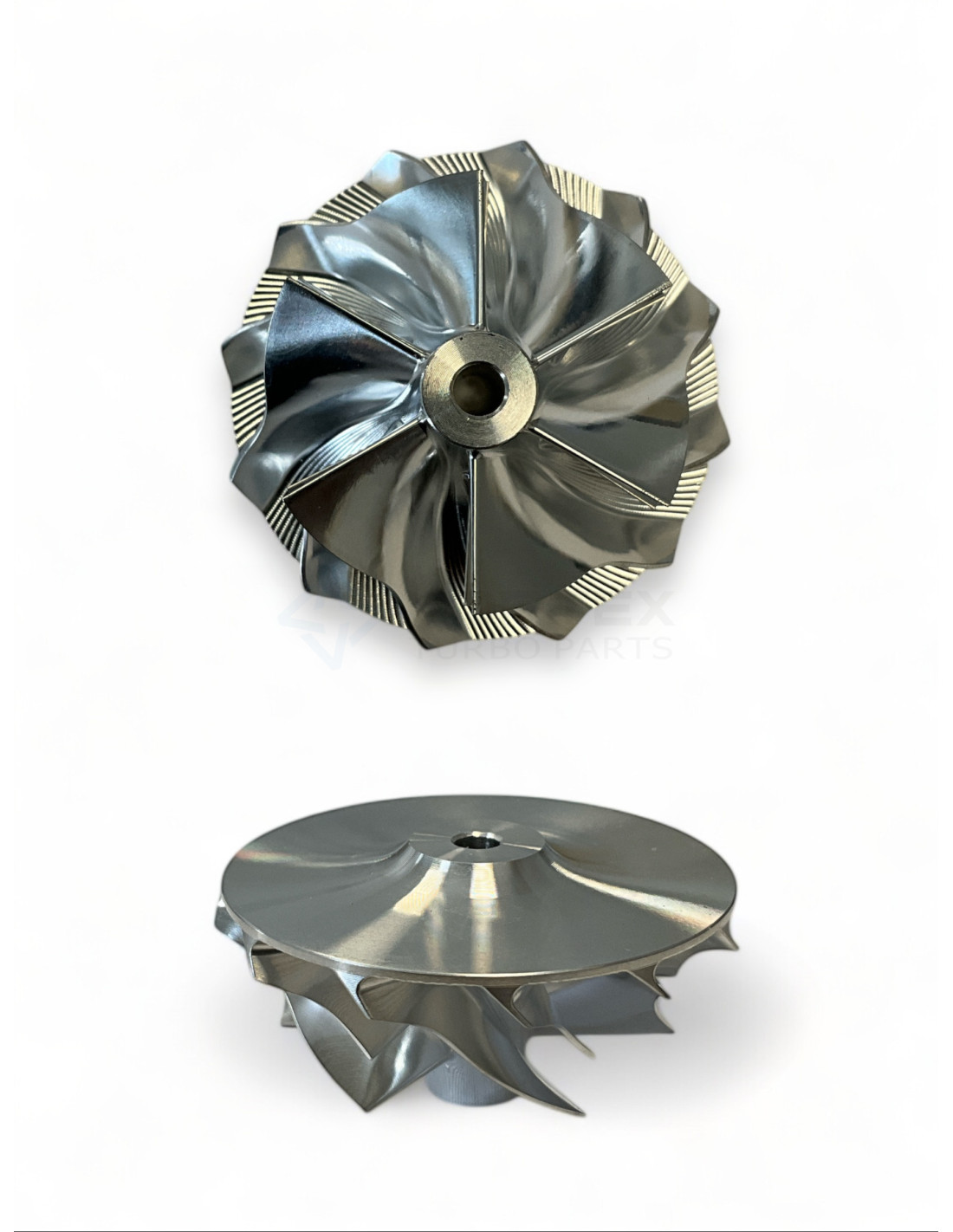

Compressor Wheel CW-B018B
CW-B018B
Nuevo
Please login to see prices and stock
Compressor Wheel CW-B018B for turbos 54409700010, 54409700013, 54409700019, 54409700026.
CW-B018B - Compressor Wheel
Brand: Vortex
Vortex Reference: CW-B018B
CW-B018B - Compatibility table
| Compressor Wheel CW-B018B - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| BorgWarner | BV40 | 54409700010 | 8508091 |
| BorgWarner | BV40 | 54409700013 | 8508091 |
| BorgWarner | BV40 | 54409700019 | 8508091 |
| BorgWarner | BV40 | 54409700026 | 11658508091, 11658510943, 8508091, 8510943 |
CW-B018B - Part Properties
Blades (Compressor wheel blades count): 6/6
Trim (Compressor wheel trim): Deep Superback
Exducer diameter A (Exducer diameter A): 46.0
Inducer diameter B (Inducer diameter B): 37.1
Tip Height C (Tip Height C): 4.5
Total Height D (Total Height D): 24.8
Billet / Casting (Billet / Casting): Billet
Model (Model): BV40
54409700026, 54409700019, 54409700013, 54409700010, 5440 970 0010, 8508091, 5440 970 0013, 8508091, 5440 970 0019, 8508091, 11658508091, 11658510943, 5440 970 0026, 8508091, 8510943
Data updated: 2025-08-25 12:16:40
