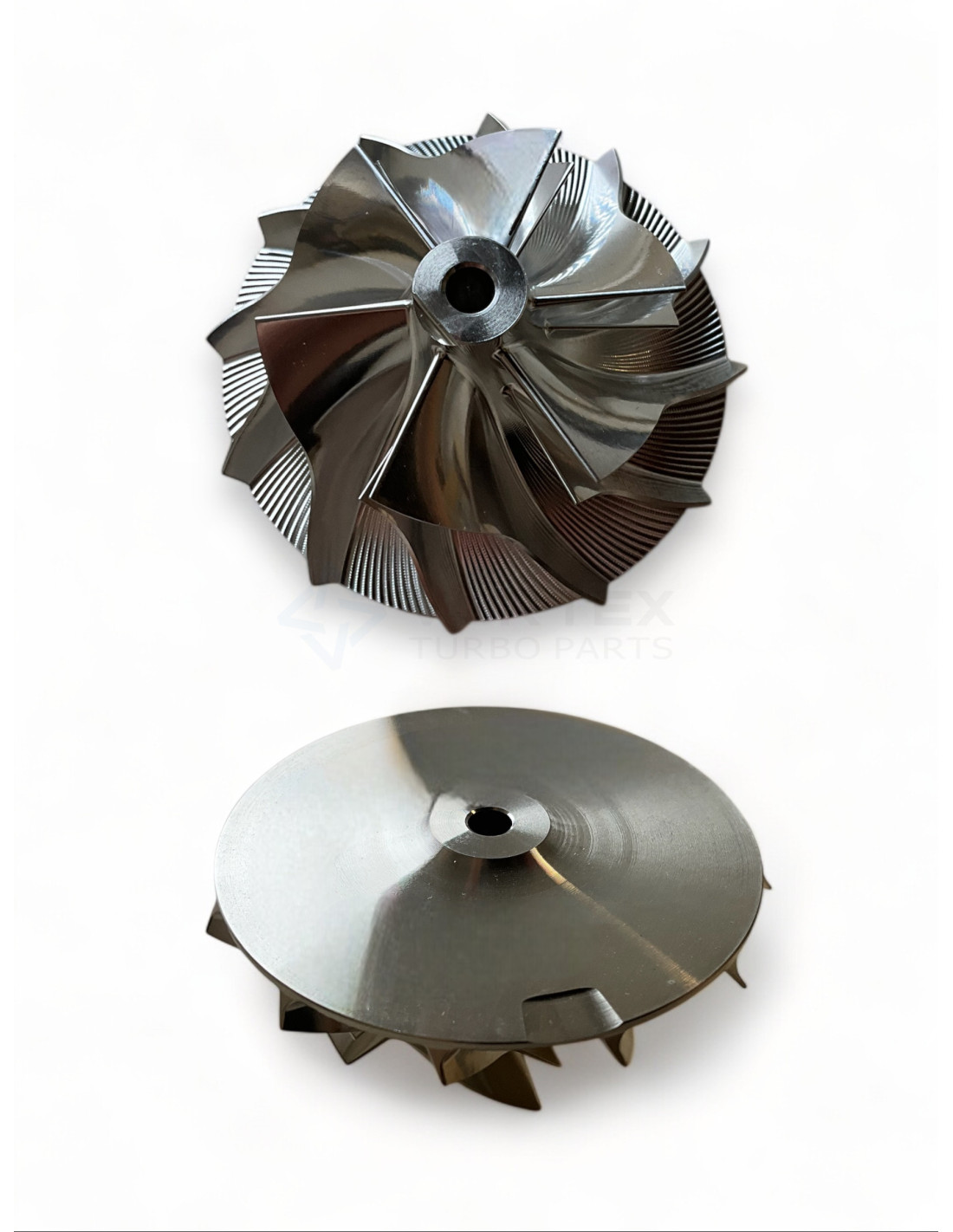

Compressor Wheel CW-K090B
CW-K090B
Nuevo
Please login to see prices and stock
5306-123-2015, CW-K090B
Compressor Wheel CW-K090B for turbos 53049700085, 53049700094.
CW-K090B - Compressor Wheel
Brand: Vortex
Vortex Reference: CW-K090B
CW-K090B - Alternative numbers
BWO (BorgWarner original part number): 5306-123-2015
CW-K090B - Compatibility table
| Compressor Wheel CW-K090B - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| BorgWarner | (R2S) K04-2274DGB201.88GCAAK | 53049700085 | 6510900280 |
| BorgWarner | (R2S) K04-2274DGF201.88GCAAK | 53049700094 | 6510902880 |
CW-K090B - Part Properties
Blades (Compressor wheel blades count): 6/6
Trim (Compressor wheel trim): Superback
Exducer diameter A (Exducer diameter A): 56.0
Inducer diameter B (Inducer diameter B): 41.7
Tip Height C (Tip Height C): 4.3
Total Height D (Total Height D): 25.7
Billet / Casting (Billet / Casting): Billet
Model (Model): K03/04
53049700085, 6510900280, 53049700094, 6510902880
