Compressor Wheel CW-G091R
CW-G091R
Nuevo
Please login to see prices and stock
Compressor Wheel CW-G091R for turbos 803709-0007, 803709-0009, 814306-0001, 814306-0005, 814306-0006, 814306-0007, 832626-0004, 832626-0005.
CW-G091R - Compressor Wheel
Brand: Vortex
Vortex Reference: CW-G091R
CW-G091R - Compatibility table
| Compressor Wheel CW-G091R - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | MGT2259 | 803709-0007 | -- |
| Garrett | MGT2259 | 803709-0009 | -- |
| Garrett | MGT2259 | 814306-0001 | -- |
| Garrett | MGT2259 | 814306-0005 | -- |
| Garrett | MGT2259 | 814306-0006 | -- |
| Garrett | MGT2259 | 814306-0007 | -- |
| Garrett | MGT2260S | 832626-0004 | 1165797 |
| Garrett | MGT2260S | 832626-0005 | 865991202 |
CW-G091R - Part Properties
Blades (Compressor wheel blades count): 6/6
Trim (Compressor wheel trim): Superback

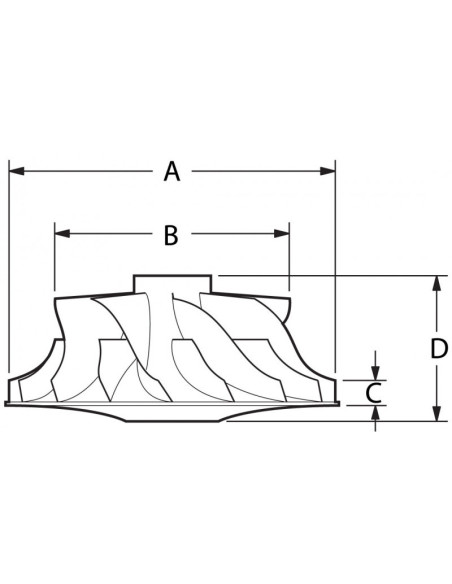

Exducer diameter A (Exducer diameter A): 60.4
Inducer diameter B (Inducer diameter B): 46.5
Tip Height C (Tip Height C): 5.3
Total Height D (Total Height D): 32.6
Model (Model): GT15-25
803709-0007, 803709-0009, 814306-0001, 814306-0005, 814306-0006, 814306-0007, 1165797, 832626-0004, 832626-0005, 865991202
Data updated: 2025-08-25 13:21:53
