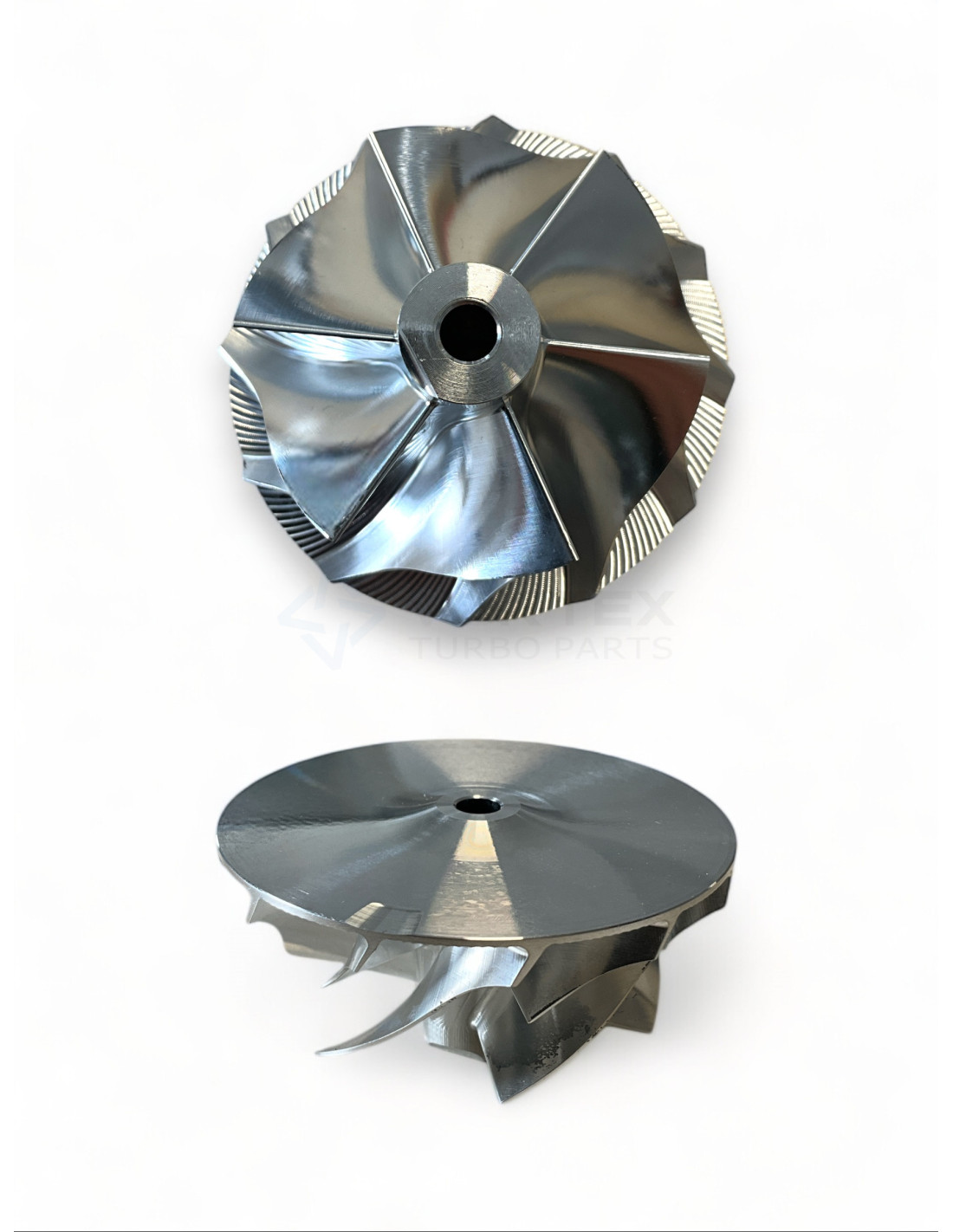

Compressor Wheel CW-I034BR
CW-I034BR
Nuevo
Please login to see prices and stock
Compressor Wheel CW-I034BR for turbos 06K145702N, 06K145722A, 06K145722H, 06K145722T.
CW-I034BR - Compressor Wheel
Brand: Vortex
Vortex Reference: CW-I034BR
CW-I034BR - Compatibility table
| Compressor Wheel CW-I034BR - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| IHI | RHF5 | 06K145702N | 06K145702N |
| IHI | RHF5 | 06K145722A | 06K145722A |
| IHI | RHF5 | 06K145722H | 06K145722H |
| IHI | RHF5 | 06K145722T | 06K145722T |
CW-I034BR - Part Properties
Blades (Compressor wheel blades count): 6/6
Trim (Compressor wheel trim): Deep Superback
Exducer diameter A (Exducer diameter A): 58.0
Inducer diameter B (Inducer diameter B): 45.0
Tip Height C (Tip Height C): 5.1
Total Height D (Total Height D): 31.0
Billet / Casting (Billet / Casting): Billet
Rotation (Rotation): Reverse
Model (Model): RHF5
06K145702N, 06K145722A, 06K145722H, 06K145722T
Data updated: 2025-10-23 13:19:44
