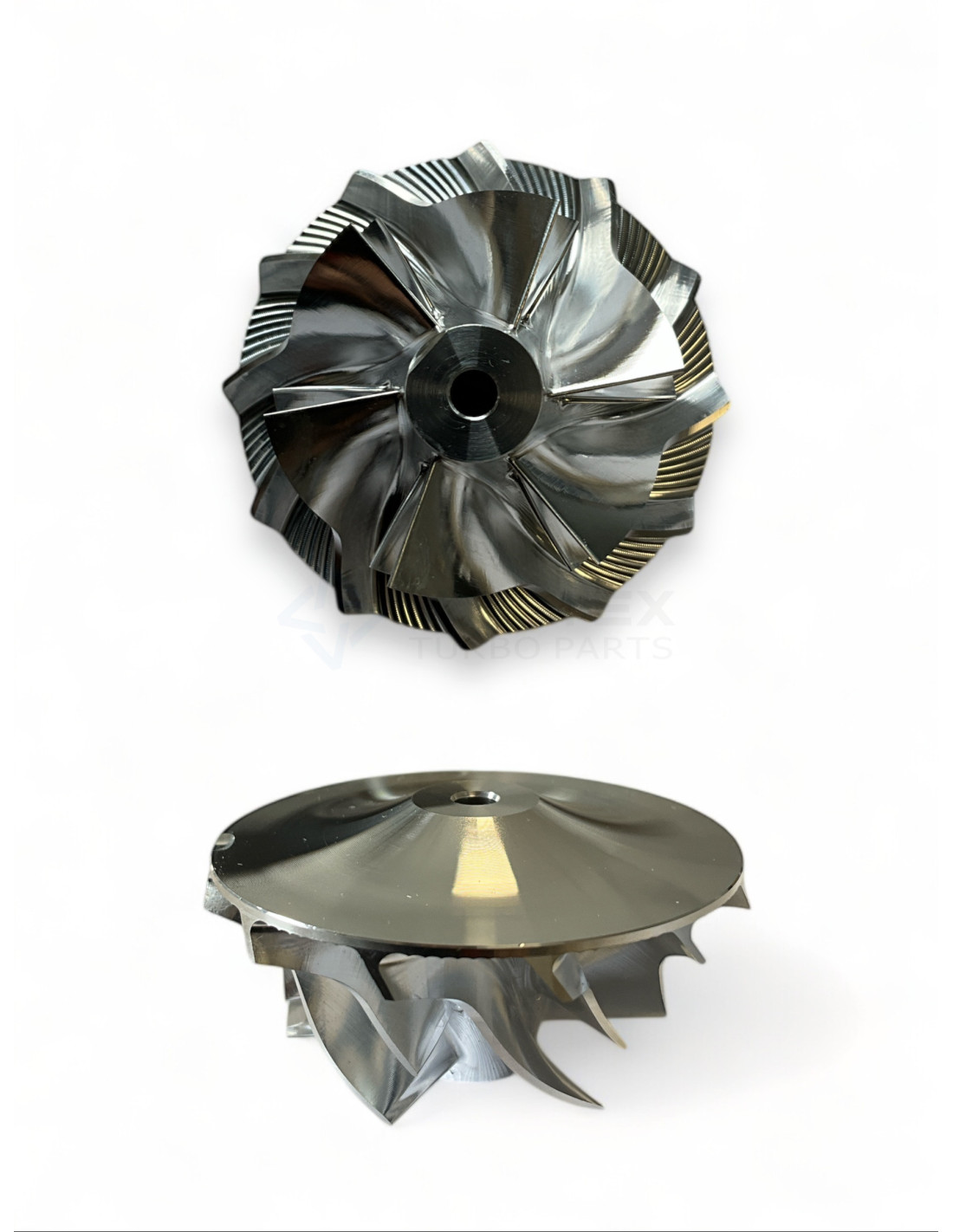

Compressor Wheel CW-G024B
CW-G024B
Nuevo
Please login to see prices and stock
Compressor Wheel CW-G024B for turbos 813100-0001, 813100-0002, 813100-0004, 813101-0001, 813101-0002, 819891-0005, 819891-0009, 821866-0001, 821866-0002, 821866-0003.
CW-G024B - Compressor Wheel
Brand: Vortex
Vortex Reference: CW-G024B
CW-G024B - Compatibility table
| Compressor Wheel CW-G024B - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GTB1749 | 813100-0001 | -- |
| Garrett | GTB1749 | 813100-0002 | -- |
| Garrett | GTB1749 | 813100-0004 | -- |
| Garrett | GTB1749 | 813101-0001 | -- |
| Garrett | GTB1749 | 813101-0002 | -- |
| Garrett | GTB1449VZ | 819891-0005 | -- |
| Garrett | GTB1449VZ | 819891-0009 | -- |
| Garrett | GTD1449VZ | 821866-0001 | -- |
| Garrett | GTD1449V | 821866-0002 | 04L253010HV260 |
| Garrett | GTD1449V | 821866-0003 | 04L253010HV280 |
| Garrett | GTD1449V | 821866-0004 | 04L253010HV310 |
| Garrett | GTD1449V | 821866-0009 | 04L253010HV310, 04L253056P |
| Garrett | GTD1449MVZK | 822051-0003 | -- |
| Garrett | GTD1449MVZK | 822051-0006 | -- |
| Garrett | GTD1449VZ | 823665-0007 | 823665-0007 |
| Garrett | GTD1449VK | 831120-0005 | 831120-0005 |
| Garrett | GTD1449VK | 831120-0006 | 831120-0006, 831120-0007, 831120-0008, 831120-0010 |
| Garrett | GTD1449VK | 831120-0009 | 831120-0009 |
| Garrett | GTD1749V | 836825-0003 | 5801922491 |
| Garrett | GTD1749V | 836825-0009 | 5801922491 |
| Garrett | GTD1749V | 839765-0001 | -- |
| Garrett | GTD1449VK | 873798-0003 | 873798-0003 |
| Garrett | GTD1449VK | 882740-0001 | 882740-0001 |
| Garrett | GTD1449VK | 887526-0001 | 887526-0001 |
| Garrett | GTD1449VK | 894474-0001 | 894474-0001 |
| Garrett | GTD1449VKZL | 911025-0001 | -- |
CW-G024B - Part Properties
Blades (Compressor wheel blades count): 6/6
Trim (Compressor wheel trim): Deep Superback

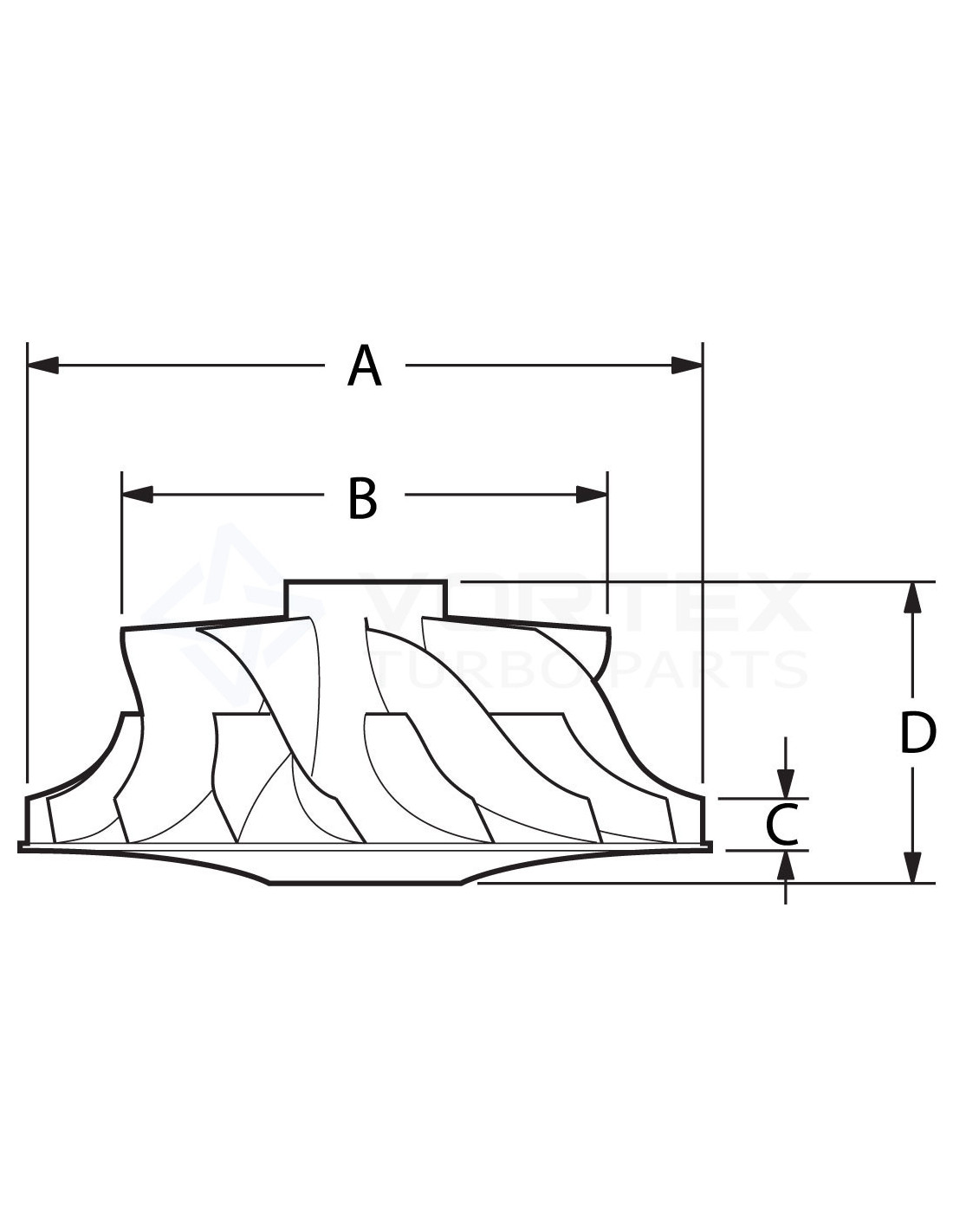

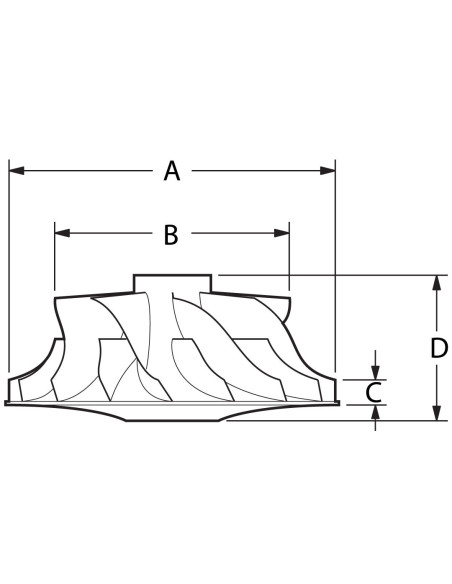

Exducer diameter A (Exducer diameter A): 50.0
Inducer diameter B (Inducer diameter B): 37.0
Tip Height C (Tip Height C): 4.5
Total Height D (Total Height D): 26.4
Billet / Casting (Billet / Casting): Billet
Model (Model): GT14
813100-0001, 813100-0002, 813100-0004, 813101-0001, 813101-0002, 819891-0005, 819891-0009, 821866-0001, 04L253010HV260, 821866-0002, 04L253010HV280, 821866-0003, 04L253010HV310, 821866-0004, 04L253010HV310, 04L253056P, 821866-0009, 822051-0003, 822051-0006, 823665-0007, 831120-0005, 831120-0006, 831120-0007, 831120-0008, 831120-0010, 831120-0009, 5801922491, 836825-0003, 5801922491, 836825-0009, 839765-0001, 873798-0003, 882740-0001, 887526-0001, 894474-0001, 911025-0001
