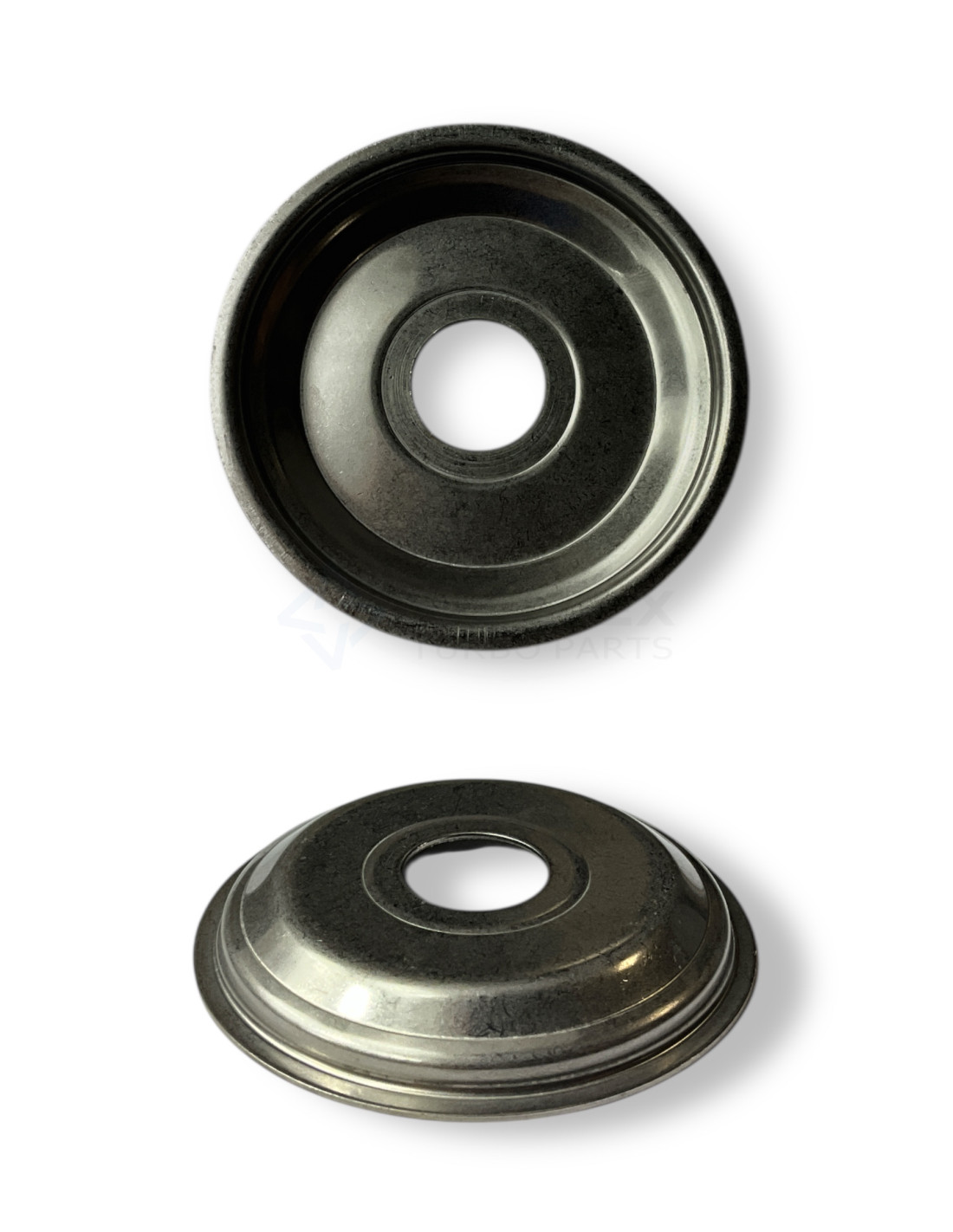

Heat shield & VNT Gasket HS-G022
445118-0001, HS-G022
Heat shield & VNT Gasket HS-G022 for turbos 452005-0001, 452055-0004, 452055-0008, 452063-0001, 452063-0002, 452063-0003, 454001-0001, 454002-0001, 454027-0002, 454060-0001.
HS-G022 - Heat shield & VNT Gasket
Brand: Vortex
Vortex Reference: HS-G022
HS-G022 - Alternative numbers
GHO (Garrett original part number): 445118-0001
HS-G022 - Compatibility table
| Heat shield & VNT Gasket HS-G022 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | TB022 | 452005-0001 | -- |
| Garrett | T250-04 | 452055-0004 | ERR4893, PMF100410 |
| Garrett | T250-04 | 452055-0008 | PMF100510 |
| Garrett | TB027 | 452063-0001 | -- |
| Garrett | TB027 | 452063-0002 | -- |
| Garrett | TB027 | 452063-0003 | -- |
| Garrett | TB0268 | 454001-0001 | 028145703D |
| Garrett | TB0254 | 454002-0001 | 028145701E |
| Garrett | TB0265 | 454027-0002 | -- |
| Garrett | TB027 | 454060-0001 | -- |
| Garrett | TB027 | 454076-0001 | -- |
| Garrett | TB027 | 454076-0002 | -- |
| Garrett | TB0279 | 454076-0003 | -- |
| Garrett | TB027 | 454087-0001 | -- |
| Garrett | TB027 | 454087-0002 | -- |
| Garrett | TB027 | 454087-0003 | -- |
| Garrett | TB0271 | 454088-0001 | 037586, ZY34025915 |
| Garrett | TB02 | 454091-0002 | -- |
| Garrett | GT25 | 454111-0001 | -- |
| Garrett | TB0293 | 454112-0003 | 7700868124, 8111321, 8602092, M855994 |
| Garrett | TB0293 | 454112-0004 | 7700868124, 8111321, 8602092 |
| Garrett | TB02 | 454113-0002 | -- |
| Garrett | TB028 | 454131-0002 | -- |
| Garrett | TB02 | 454131-0003 | -- |
| Garrett | TB027 | 454132-0001 | -- |
| Garrett | TB028 | 454132-0002 | -- |
| Garrett | TB02 | 454147-0001 | -- |
| Garrett | GT25C | 454184-0001 | A6020960699 |
| Garrett | TB02 | 454204-0001 | -- |
| Garrett | TB02 | 454204-0002 | -- |
| Garrett | TB0242 | 465171-0002 | -- |
| Garrett | TB024 | 465175-0001 | -- |
| Garrett | TB0250 | 465187-0002 | -- |
| Garrett | TB2555 | 465199-0003 | PMF10013, PMR10005B |
| Garrett | TB026 | 465407-0001 | -- |
| Garrett | TB026 | 465407-0002 | -- |
| Garrett | TB0251 | 465429-0001 | -- |
| Garrett | TB0251 | 465429-0002 | 037586, 9627367380 |
| Garrett | TB0278 | 465447-0001 | -- |
| Garrett | TB0278 | 465447-0002 | -- |
| Garrett | TB0253 | 465567-0001 | 464309 |
| Garrett | TB0253 | 465567-0002 | 464309 |
| Garrett | TB02 | 465577-0001 | -- |
| Garrett | TB022 | 466856-0002 | -- |
| Garrett | TB022 | 466856-0003 | -- |
| Garrett | TB022 | 466856-0004 | -- |
| Garrett | TB022 | 466884-0001 | -- |
| Garrett | TB022 | 466884-0002 | -- |
HS-G022 - Part Properties
OD (Outside Diameter): 67.5
ID (Inside Diameter): 17.5
452005-0001, 452055-0004, ERR4893, PMF100410, 452055-0008, PMF100510, 452063-0001, 452063-0002, 452063-0003, 028145703D, 454001-0001, 028145701E, 454002-0001, 454027-0002, 454060-0001, 454076-0001, 454076-0002, 454076-0003, 454087-0001, 454087-0002, 454087-0003, 037586, 454088-0001, ZY34025915, 454091-0002, 454111-0001, 454112-0003, 7700868124, 8111321, 8602092, M855994, 454112-0004, 7700868124, 8111321, 8602092, 454113-0002, 454131-0002, 454131-0003, 454132-0001, 454132-0002, 454147-0001, 454184-0001, A6020960699, 454204-0001, 454204-0002, 465171-0002, 465175-0001, 465187-0002, 465199-0003, PMF10013, PMR10005B, 465407-0001, 465407-0002, 465429-0001, 037586, 465429-0002, 9627367380, 465447-0001, 465447-0002, 464309, 465567-0001, 464309, 465567-0002, 465577-0001, 466856-0002, 466856-0003, 466856-0004, 466884-0001, 466884-0002
Data updated: 2024-10-23 15:51:28
