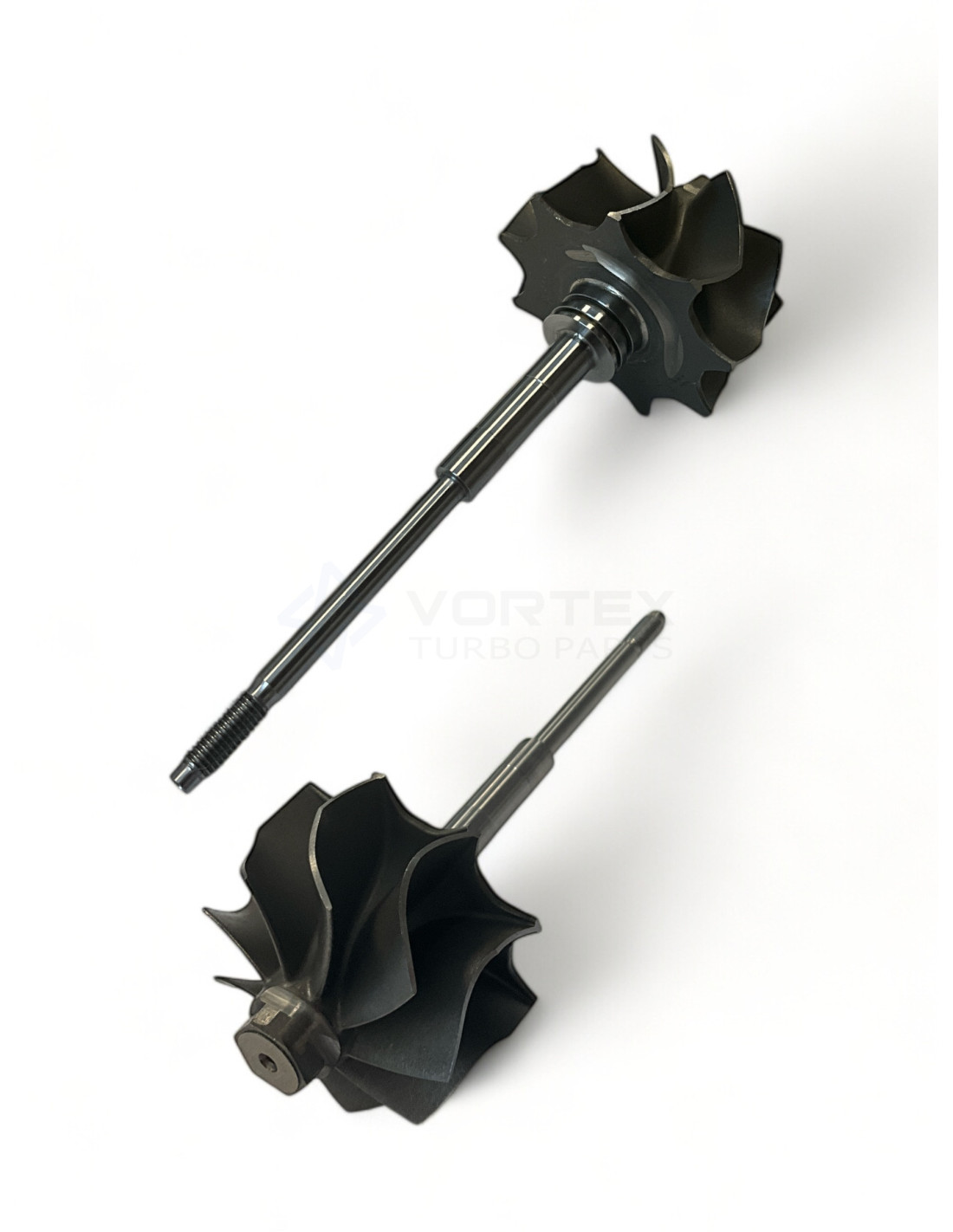

Shaft and wheel SW-G157
Shaft and wheel SW-G157
Shaft and wheel SW-G157
Shaft and wheel SW-G157

Shaft and wheel SW-G157

SW-G157
Nuovo
Please login to see prices and stock

Shaft and wheel SW-G157 for turbos 784119-0006, 784119-0007, 814306-0001, 814306-0005, 814306-0006, 814306-0007, 817778-0001, 827054-0001, 827054-0002, 827056-0001.



SW-G157 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G157

SW-G157 - Compatibility table

Shaft and wheel SW-G157 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettMGT2259S784119-0006--
GarrettMGT2259S784119-0007--
GarrettMGT2259814306-0001--
GarrettMGT2259814306-0005--
GarrettMGT2259814306-0006--
GarrettMGT2259814306-0007--
GarrettMGT2259S817778-0001--
GarrettMGT2259S827054-0001--
GarrettMGT2259S827054-0002--
GarrettMGT2259S827056-0001--

SW-G157 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 50.0

Exducer Diameter B (Exducer Diameter B): 44.8

Tip Height C (Tip Height C): 10.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

784119-0006, 784119-0007, 814306-0001, 814306-0005, 814306-0006, 814306-0007, 817778-0001, 827054-0001, 827054-0002, 827056-0001

Data updated: 2025-09-02 16:50:24
