Shaft and wheel SW-G049
SW-G049
Nuovo
Please login to see prices and stock

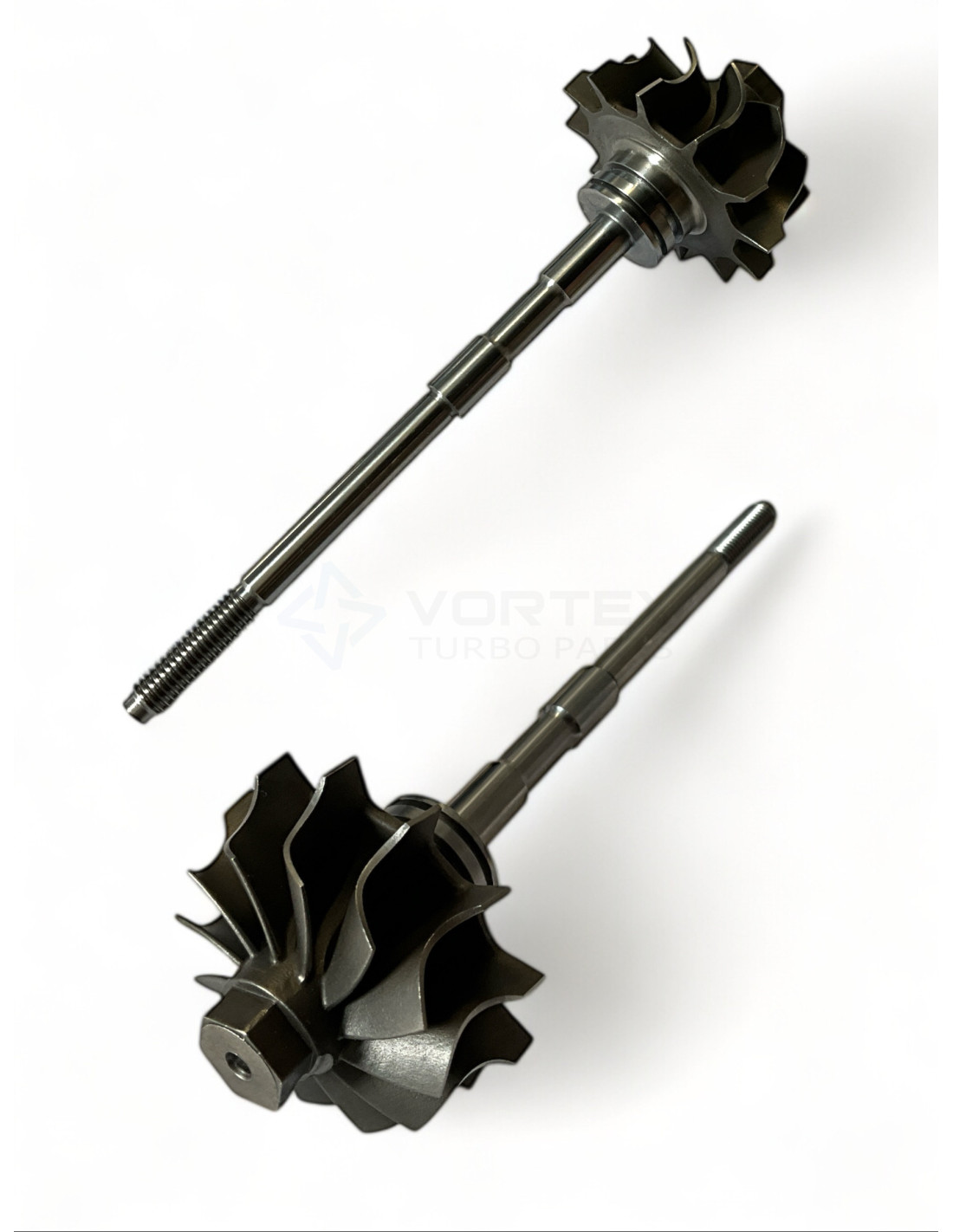

Shaft and wheel SW-G049 for turbos 708847-0001, 708847-0002.
SW-G049 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G049
SW-G049 - Compatibility table
| Shaft and wheel SW-G049 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GT1544S | 708847-0001 | -- |
| Garrett | GT1544S | 708847-0002 | -- |
SW-G049 - Part Properties
Blades (Shaft blades count): 12
Type (Shaft & Wheel Type): Slender
Inducer Diameter A (Inducer Diameter A): 39.0
Exducer Diameter B (Exducer Diameter B): 33.1
Tip Height C (Tip Height C): 4.5
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.5
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1
Shaft Length (mm) (Shaft Length (mm)): 92.5
Back (Back): Open
Piston Ring Type (Piston Ring Type): Single
Model (Model): GT15-25
708847-0001, 708847-0002
Data updated: 2025-08-27 12:23:20
