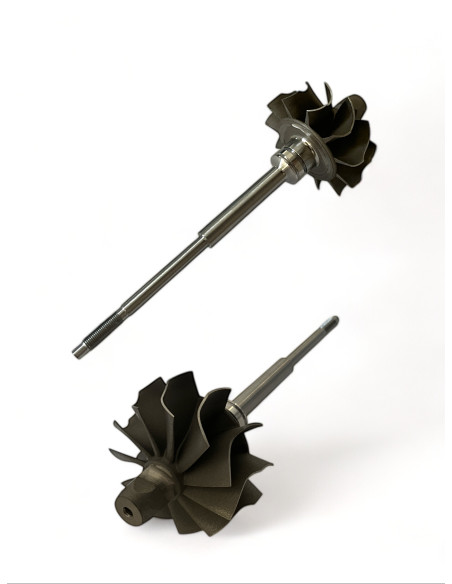

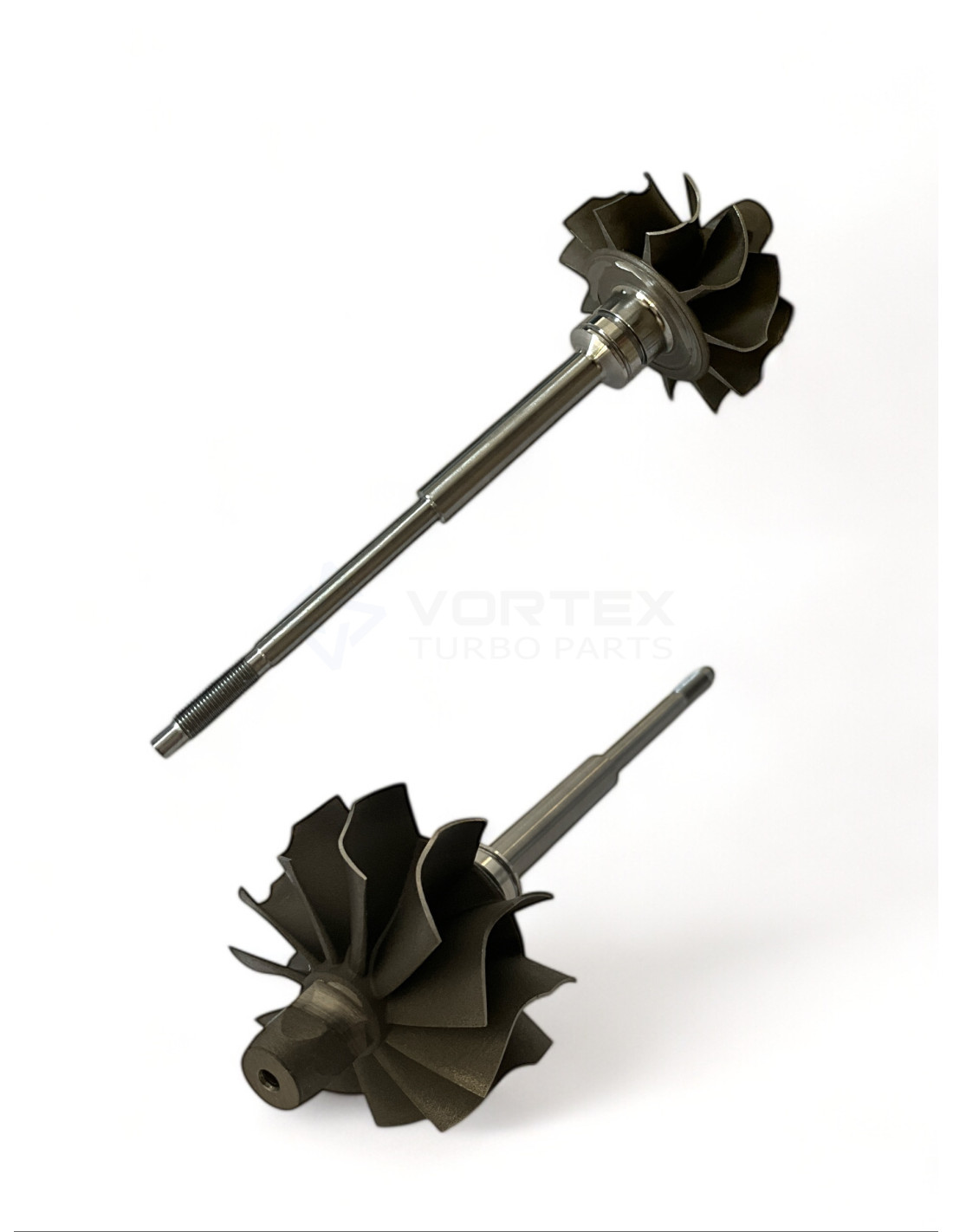

Shaft and wheel SW-K001
Shaft and wheel SW-K001
Shaft and wheel SW-K001
Shaft and wheel SW-K001

Shaft and wheel SW-K001

SW-K001
Nuovo
Please login to see prices and stock

5303 120 5008, 5303 120 5023, SW-K001

Shaft and wheel SW-K001 for turbos 53039700011, 53039700025, 53039700026, 53039700029, 53039700034, 53039700035, 53039700037, 53039700044, 53039700045, 53039700049.



SW-K001 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-K001

SW-K001 - Alternative numbers

BWO (BorgWarner original part number): 5303 120 5008

BWO (BorgWarner original part number): 5303 120 5023

SW-K001 - Compatibility table

Shaft and wheel SW-K001 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerK03-2072GAA5.88KCAXK5303970001106A145703A, 06A145703B, 06A145703G, 06A145704, 06A145704L, 06A145713J
BorgWarnerK03-2072GAA5.88KCAXK53039700025058145703K
BorgWarnerK03-2072GAA5.88KCAXK5303970002606A145704A, 06A145713K
BorgWarnerK03-2072GAA5.88KCAXK53039700029058145703J, 058145703N, 058145703Q
BorgWarnerK03-2076CCA6.88KCAVD53039700034500335369
BorgWarnerK03-2072GAA5.88KCAXK5303970003506A145704B
BorgWarnerK03-2076CCA6.88KCAVD53039700037500358190
BorgWarnerK03-2072GAA5.88KCAXK5303970004406A145704L
BorgWarnerK03-2072GAA5.88KCAXK5303970004506A145704K
BorgWarnerK03-2072GAA5.88KCAXK5303970004906A145704H, 06A145713H
BorgWarnerK03-2075EYD5.88KCAXH5303970005206A145704T, 06A145713D, 06A145713F
BorgWarnerK03-2075EYD5.88KCAXH5303970005306A145704S, 06A145713L
BorgWarnerK03-2076CCA6.88KCAXD53039700054500364493
BorgWarnerK03-2075EYD5.88KCAXH5303970005806A145713B, 06A145713M
BorgWarnerK03-2074CCB5.88KCAXD53039700066504014911
BorgWarnerK03-2074CCB5.88KCAXD53039700067504014915
BorgWarnerK03-2076CCA6.88KCAVD53039700071504016280
BorgWarnerK03-2076CCA6.88KCAVD53039700072504016279
BorgWarnerK03-2075EYD5.88KCAXK5303970007306B145703B
BorgWarnerK03-2076CCA6.88KCAVD53039700075500335369
BorgWarnerK03-2076CCA6.88KCAVD53039700076500358190
BorgWarnerK03-2072GAA5.78KCAX_53039700077010R2010251.020, 101680, 103133
BorgWarnerK03-2074CCB5.88KCAXD53039700078504078436, 504154738
BorgWarnerK03-2076CCA6.88KCAXD53039700081500364493
BorgWarnerK03-2075EYD5.88KCAXH5303970008206A145713E, 06A145713N
BorgWarnerK03-2080DCB5.88KCAXK5303970008606F145701B, 06F145701C, 06F145701F
BorgWarnerK03-2080DCB5.88KCAXK5303970008706D145701B, 06D145701C, 06D145701F
BorgWarnerK03-2074CCB5.88KCAXD53039700089504071262
BorgWarnerK03-2074CCB5.88KCAXD53039700090504070186
BorgWarnerK03-2074CCB5.88KCAXD53039700114504136783
BorgWarnerK03-2074CCB5.88KCAXD53039700115504136785
BorgWarnerK03-2074DCB5.88KCAXD53039700116504136797
BorgWarnerK03-2072ECD5.88KCAXO530397072002660900080, 2660900280, 2660900380, A2660900080, A2660900280, A2660900380

SW-K001 - Part Properties

Blades (Shaft blades count): 11

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 45.0

Exducer Diameter B (Exducer Diameter B): 40.3

Tip Height C (Tip Height C): 7.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.6

Shaft Length (mm) (Shaft Length (mm)): 98.0

Shaft Length (mm) (Shaft Length (mm)): 98.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): K03/04

06A145703A, 06A145703B, 06A145703G, 06A145704, 06A145704L, 06A145713J, 53039700011, 058145703K, 53039700025, 06A145704A, 06A145713K, 53039700026, 058145703J, 058145703N, 058145703Q, 53039700029, 500335369, 53039700034, 06A145704B, 53039700035, 500358190, 53039700037, 06A145704L, 53039700044, 06A145704K, 53039700045, 06A145704H, 06A145713H, 53039700049, 06A145704T, 06A145713D, 06A145713F, 53039700052, 06A145704S, 06A145713L, 53039700053, 500364493, 53039700054, 06A145713B, 06A145713M, 53039700058, 504014911, 53039700066, 504014915, 53039700067, 504016280, 53039700071, 504016279, 53039700072, 06B145703B, 53039700073, 500335369, 53039700075, 500358190, 53039700076, 010R2010251.020, 101680, 103133, 53039700077, 504078436, 504154738, 53039700078, 500364493, 53039700081, 06A145713E, 06A145713N, 53039700082, 06F145701B, 06F145701C, 06F145701F, 53039700086, 06D145701B, 06D145701C, 06D145701F, 53039700087, 504071262, 53039700089, 504070186, 53039700090, 504136783, 53039700114, 504136785, 53039700115, 504136797, 53039700116, 2660900080, 2660900280, 2660900380, 53039707200, A2660900080, A2660900280, A2660900380

Data updated: 2025-08-29 15:51:54
