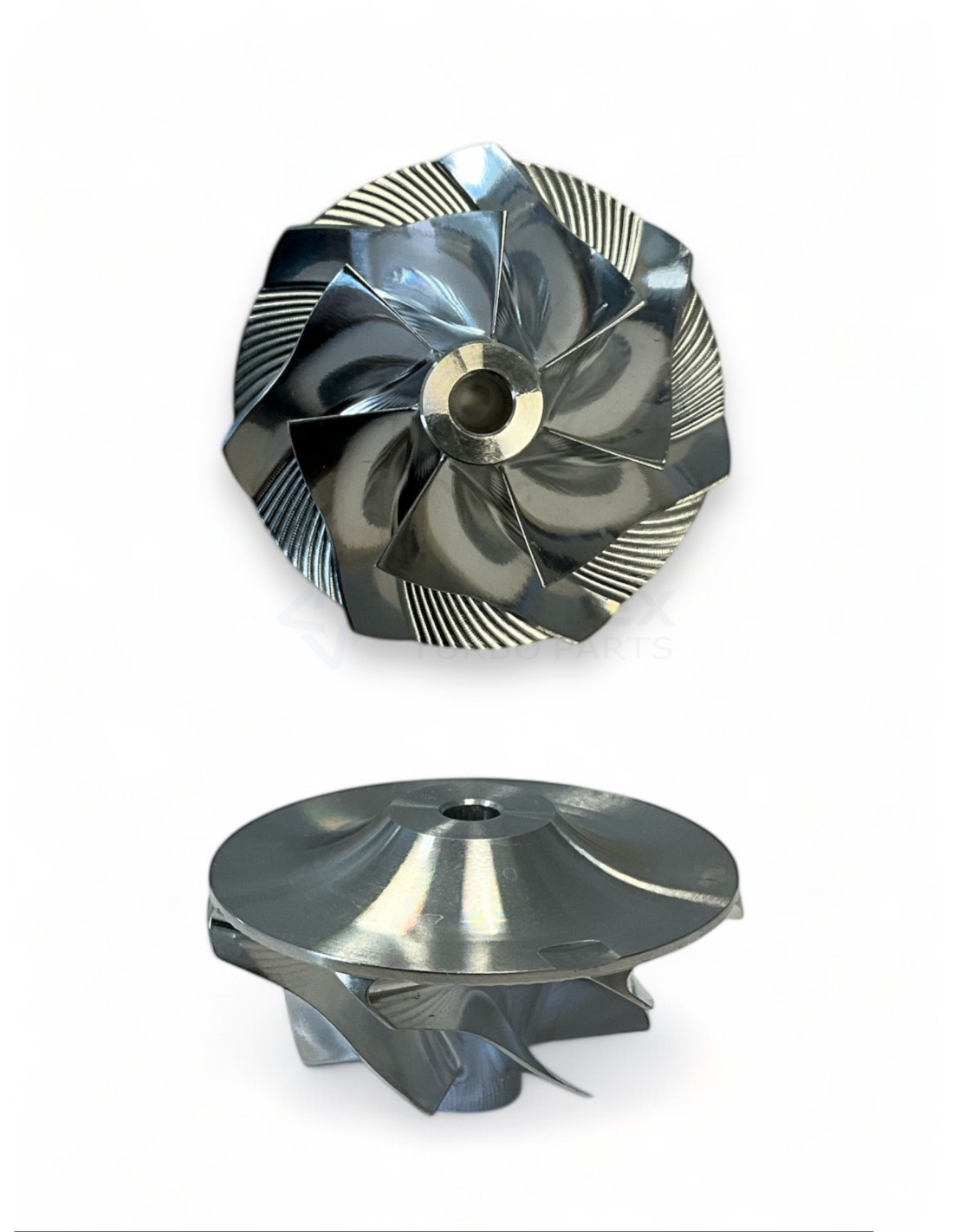

Compressor Wheel CW-G144B
Compressor Wheel CW-G144B
Compressor Wheel CW-G144B
Compressor Wheel CW-G144B

Compressor Wheel CW-G144B

CW-G144B
Nuovo
Please login to see prices and stock

Compressor Wheel CW-G144B for turbos 836389-0008, 836389-0009, 839827-0003, 847277-0001, 847277-0002, 856652-0001, 882343-0001, 891462-0001.



CW-G144B - Compressor Wheel

Brand: Vortex

Vortex Reference: CW-G144B

CW-G144B - Compatibility table

Compressor Wheel CW-G144B - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1241SZM836389-0008--
GarrettGT1241SZM836389-0009--
GarrettNGT1038KLSZ839827-0003--
GarrettNGT1038KLSZ847277-0001--
GarrettNGT1038KLSZ847277-0002--
GarrettNGT1038KLSZ856652-0001--
GarrettNGT1038KLSZ882343-0001--
GarrettNGT1038KLSZ891462-0001--

CW-G144B - Part Properties

Blades (Compressor wheel blades count): 7

Trim (Compressor wheel trim): Deep Superback

Exducer diameter A (Exducer diameter A): 39.0

Inducer diameter B (Inducer diameter B): 27.2

Tip Height C (Tip Height C): 4.5

Total Height D (Total Height D): 22.8

Billet / Casting (Billet / Casting): Billet

Model (Model): GT10

836389-0008, 836389-0009, 839827-0003, 847277-0001, 847277-0002, 856652-0001, 882343-0001, 891462-0001

Data updated: 2025-08-25 12:32:45
