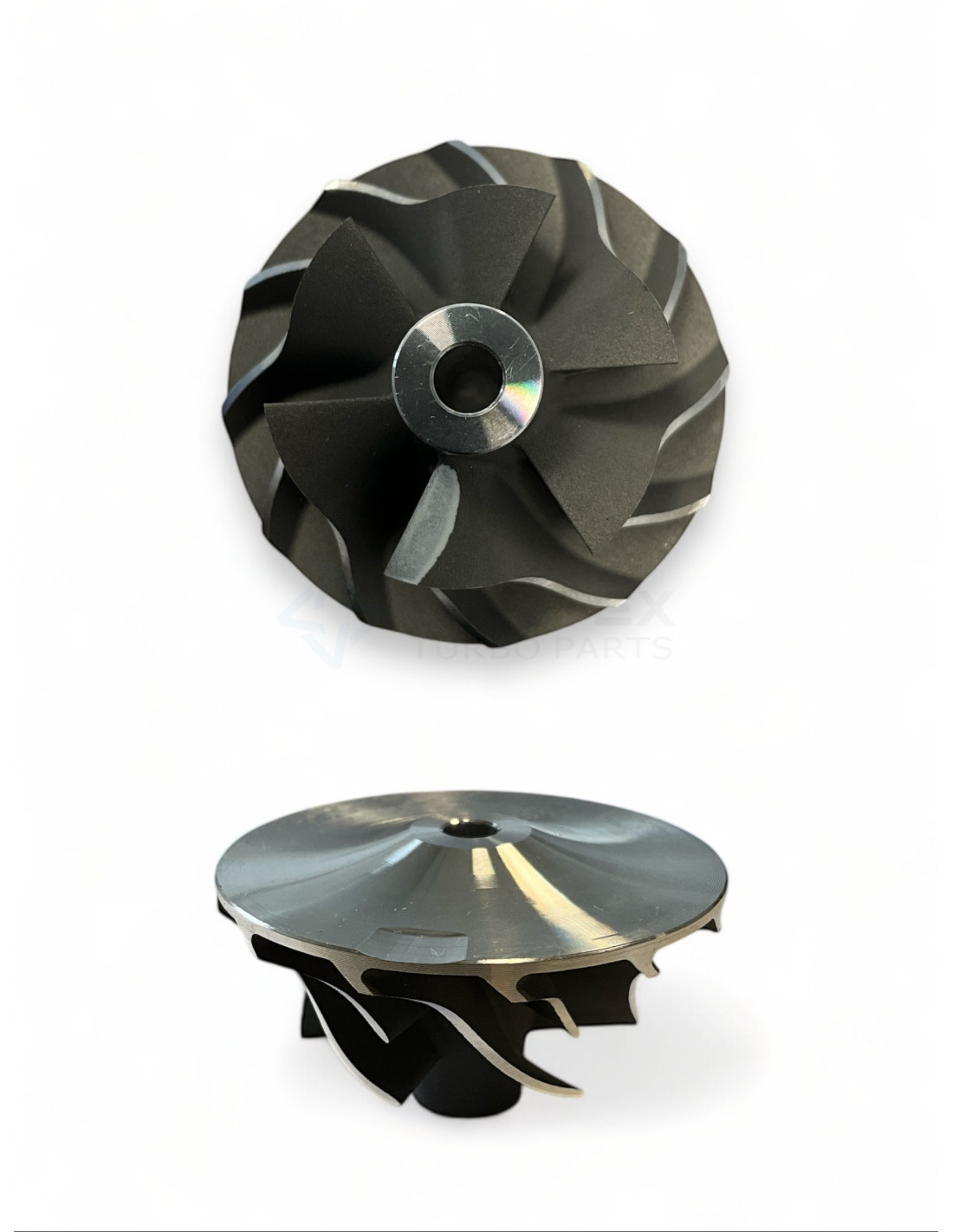

Compressor Wheel CW-G006
Compressor Wheel CW-G006
Compressor Wheel CW-G006
Compressor Wheel CW-G006

Compressor Wheel CW-G006

CW-G006
Nuovo
Please login to see prices and stock

Compressor Wheel CW-G006 for turbos 789614-0001, 799171-0001, 799171-0002, 799171-0004, 809534-0001, 809977-0001, 815181-0001, 825246-0001, 825246-0002, 831735-0001.



CW-G006 - Compressor Wheel

Brand: Vortex

Vortex Reference: CW-G006

CW-G006 - Compatibility table

Compressor Wheel CW-G006 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1238SZ789614-0001--
GarrettGT1238SZ799171-00011539469, 55231037, 9S516K682BA
GarrettGT1238SZ799171-00021539469, 55231037, 9S516K682BA
GarrettGT1238SZ799171-00041539469, 55231037, 9S516K682BA
GarrettGT1238SZ809534-0001--
GarrettGT1238SZ809977-0001--
GarrettGT1238SZ815181-0001--
GarrettGT1238SZ825246-0001--
GarrettGT1238SZ825246-0002--
GarrettGT1238SZ831735-0001--
GarrettGT1238SZ831735-0002--

CW-G006 - Part Properties

Blades (Compressor wheel blades count): 6/6

Trim (Compressor wheel trim): Superback

Exducer diameter A (Exducer diameter A): 38.0

Inducer diameter B (Inducer diameter B): 27.0

Tip Height C (Tip Height C): 3.2

Total Height D (Total Height D): 22.5

Model (Model): GT12

789614-0001, 1539469, 55231037, 799171-0001, 9S516K682BA, 1539469, 55231037, 799171-0002, 9S516K682BA, 1539469, 55231037, 799171-0004, 9S516K682BA, 809534-0001, 809977-0001, 815181-0001, 825246-0001, 825246-0002, 831735-0001, 831735-0002

Data updated: 2025-08-25 11:31:14
