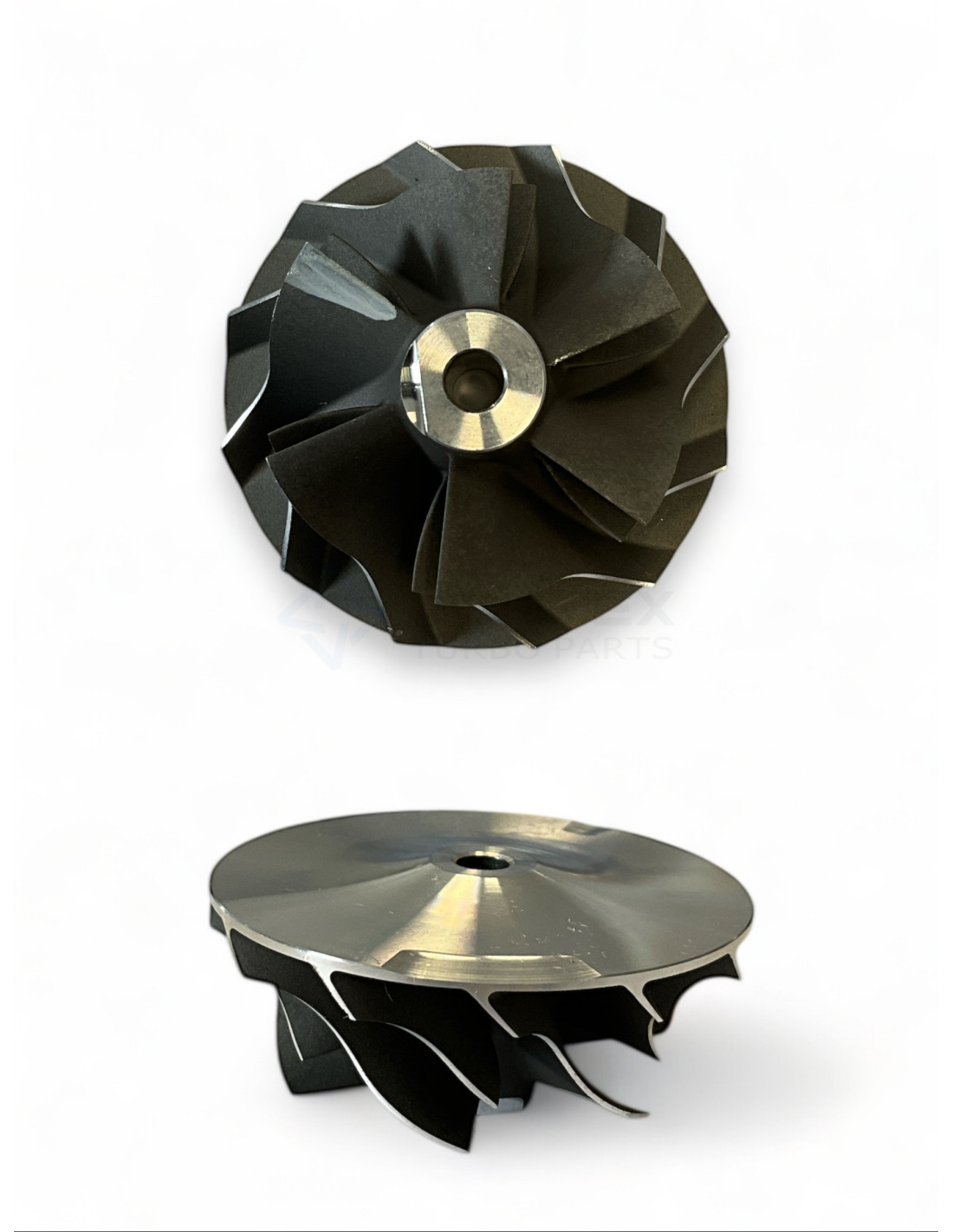

Compressor Wheel CW-M051
CW-M051
Nuovo
Please login to see prices and stock
Compressor Wheel CW-M051 for turbos 49335-00850, 49335-00860, 49335-00870, 49335-00871, 49335-00880, 49335-00881, 49335-00882, 49335-00883, 49335-00884, 49335-00885.
CW-M051 - Compressor Wheel
Brand: Vortex
Vortex Reference: CW-M051
CW-M051 - Compatibility table
| Compressor Wheel CW-M051 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Mitsubishi | TF035HL8-13TK3S-5 | 49335-00850 | -- |
| Mitsubishi | TF035HL8-13TK3S-5 | 49335-00860 | -- |
| Mitsubishi | TF035HL8-13TK3S-5 | 49335-00870 | -- |
| Mitsubishi | TF035HL8-13TK3S-5 | 49335-00871 | -- |
| Mitsubishi | TF035HL8-13TK3S-5 | 49335-00880 | -- |
| Mitsubishi | TF035HL8-13TK3S-5 | 49335-00881 | -- |
| Mitsubishi | TF035HL8-13TK3S-5 | 49335-00882 | -- |
| Mitsubishi | TF035HL8-13TK3S-5 | 49335-00883 | -- |
| Mitsubishi | TF035HL8-13TK3S-5 | 49335-00884 | -- |
| Mitsubishi | TF035HL8-13TK3S-5 | 49335-00885 | -- |
| Mitsubishi | TF035HL8-13TK3S-5 | 49335-00890 | -- |
| Mitsubishi | TF035HL8-13TK3S-5 | 49335-00891 | -- |
| Mitsubishi | TF035HL8-13TK3S-5 | 49335-00892 | -- |
| Mitsubishi | TF035HL8-13TK3S-5 | 49335-00893 | -- |
| Mitsubishi | TF035HL8-13TK3S-5 | 49335-00894 | -- |
| Mitsubishi | TF035HL8-13TK3S-5 | 49335-01800 | -- |
| Mitsubishi | TF035HL8-13TK3S-5 | 49335-01801 | 14411-1KC1E |
| Mitsubishi | TF035HL8-13TK3S-5 | 49335-01810 | -- |
| Mitsubishi | TF035HL8-13TK3S-5 | 49335-01811 | 14411-1KC2C |
CW-M051 - Part Properties
Blades (Compressor wheel blades count): 6/6
Trim (Compressor wheel trim): Superback

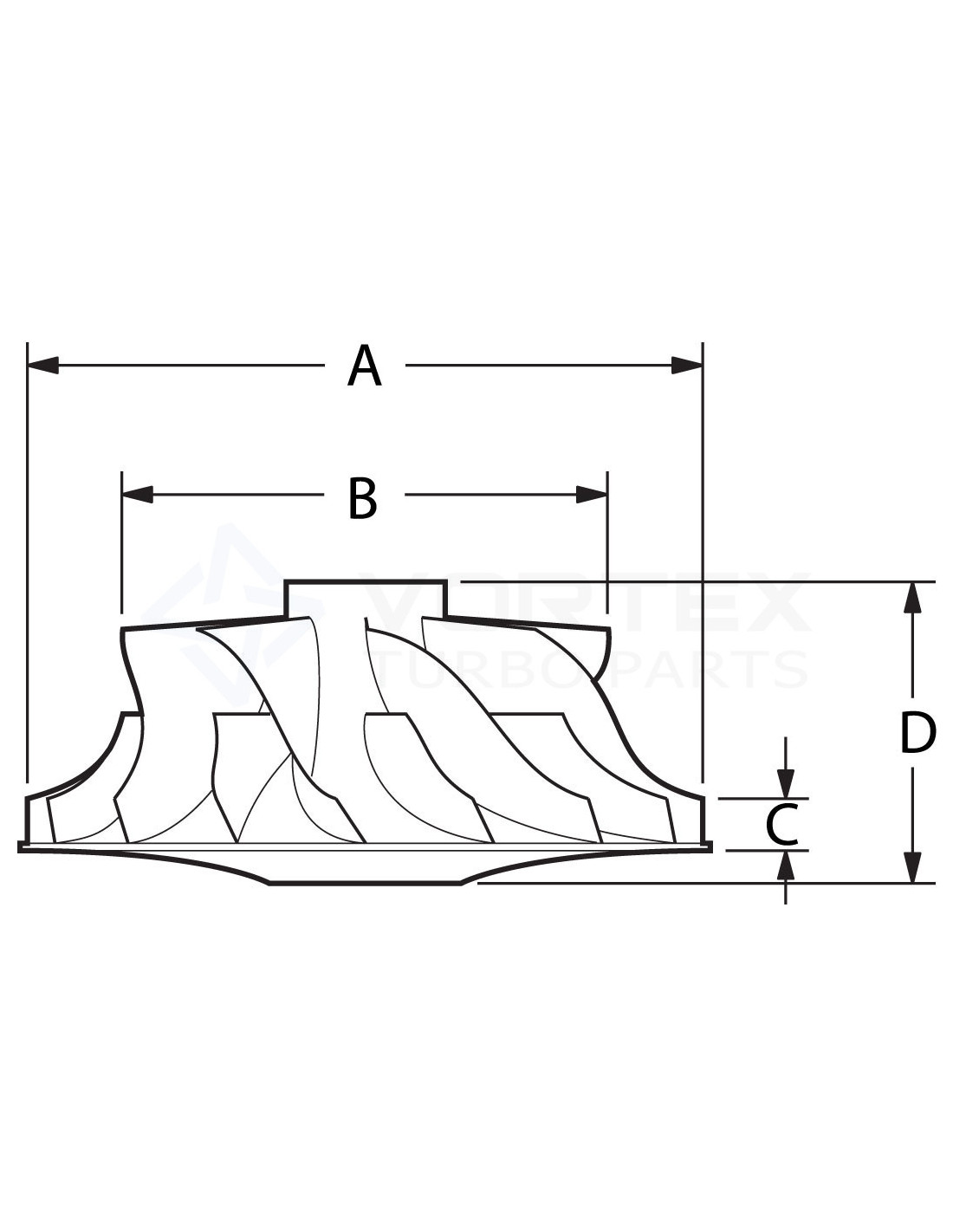

Exducer diameter A (Exducer diameter A): 51.0
Inducer diameter B (Inducer diameter B): 38.3
Tip Height C (Tip Height C): 5.0
Total Height D (Total Height D): 24.3
Model (Model): TF035
49335-00850, 49335-00860, 49335-00870, 49335-00871, 49335-00880, 49335-00881, 49335-00882, 49335-00883, 49335-00884, 49335-00885, 49335-00890, 49335-00891, 49335-00892, 49335-00893, 49335-00894, 49335-01800, 14411-1KC1E, 49335-01801, 49335-01810, 14411-1KC2C, 49335-01811
Data updated: 2025-08-25 12:13:00
