Lėkštutė BP-G049
Lėkštutė BP-G049

Lėkštutė BP-G049

BP-G049
Nauja
Paskutinė prekė (1 Vienetas)
8,71 €
Su mokesčiais

701335-0010, BP-G049

Lėkštutė BP-G049 for turbos 716625-0001, 716626-0001, 716885-0001, 716885-0002, 716885-0003, 716885-0004, 716885-0005, 717661-0001, 717662-0001, 717662-0002.



BP-G049 - Lėkštutė

Brand: Vortex

Vortex Reference: BP-G049

BP-G049 - Alternative numbers

GHO (Garrett original part number): 701335-0010

BP-G049 - Compatibility table

Lėkštutė BP-G049 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT225716625-0001--
GarrettGT2256V716626-0001--
GarrettGT2056V716885-0001070145701J, 070145701JV244, 070145702B
GarrettGT2056V716885-0002070145701J, 070145701JV246, 070145702B
GarrettGT2056V716885-0003070145701J, 070145701JV250, 070145702B
GarrettGT2056V716885-0004070145701J, 070145702B, 070145702BV100
GarrettGT2056V716885-0005070145701J, 070145702B, 070145702BV100
GarrettGT2256V717661-0001--
GarrettGT2256V717662-0001--
GarrettGT2256V717662-0002--
GarrettGT2056V720931-0001070145701HV244
GarrettGT2056V720931-0002070145701HV246
GarrettGT2056V720931-0003070145701HV250, 070145701K
GarrettGT2056V720931-0004070145702AV100
GarrettGT2056V720931-0005070145702AV100
GarrettGT22750639-0002--
GarrettGT22765277-0001--
GarrettGTB1756VK765314-0003--
GarrettGTB1756VK765314-0004--
GarrettGTB1756VK767805-0002059145721B, 059145721G
GarrettGTB1756VK767805-0003059145721B, 059145721G
GarrettGTB1756VK767805-0004059145721B, 059145721G
GarrettGTB1756VK769701-0001059145715M, 059145715R, 059145715T, 059145721E, 059145721F
GarrettGTB1756VK769701-0002059145715M, 059145715R, 059145715T, 059145721E, 059145721F
GarrettGTB1756VK769701-0003059145715M, 059145715R, 059145715T, 059145721E, 059145721F
GarrettGTB1756VK777159-0002059145721B, 059145721G
GarrettGTB1756VK777159-0003059145721B, 059145721G
GarrettGTB1756VK777162-0001--

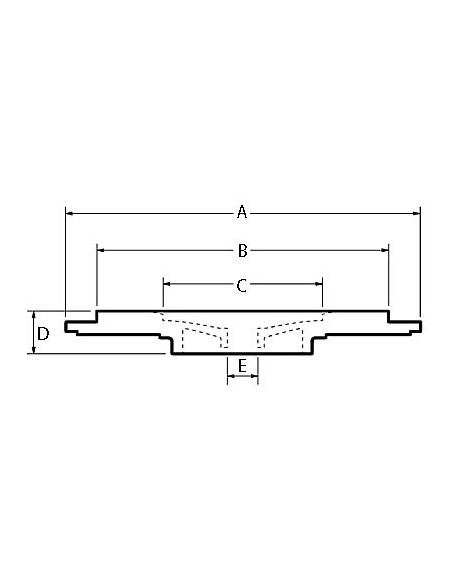

BP-G049 - Part Properties

Trim (Back plate trim): Deep Superback

A (Size A): 124.00

B (Size B): 100.00

C (Size C): 57.4

D (Size D): 10.00

E (Size E): 13.7

Model (Model): GT15-25

716625-0001, 716626-0001, 070145701J, 070145701JV244, 070145702B, 716885-0001, 070145701J, 070145701JV246, 070145702B, 716885-0002, 070145701J, 070145701JV250, 070145702B, 716885-0003, 070145701J, 070145702B, 070145702BV100, 716885-0004, 070145701J, 070145702B, 070145702BV100, 716885-0005, 717661-0001, 717662-0001, 717662-0002, 070145701HV244, 720931-0001, 070145701HV246, 720931-0002, 070145701HV250, 070145701K, 720931-0003, 070145702AV100, 720931-0004, 070145702AV100, 720931-0005, 750639-0002, 765277-0001, 765314-0003, 765314-0004, 059145721B, 059145721G, 767805-0002, 059145721B, 059145721G, 767805-0003, 059145721B, 059145721G, 767805-0004, 059145715M, 059145715R, 059145715T, 059145721E, 059145721F, 769701-0001, 059145715M, 059145715R, 059145715T, 059145721E, 059145721F, 769701-0002, 059145715M, 059145715R, 059145715T, 059145721E, 059145721F, 769701-0003, 059145721B, 059145721G, 777159-0002, 059145721B, 059145721G, 777159-0003, 777162-0001

Data updated: 2024-10-07 13:29:09
