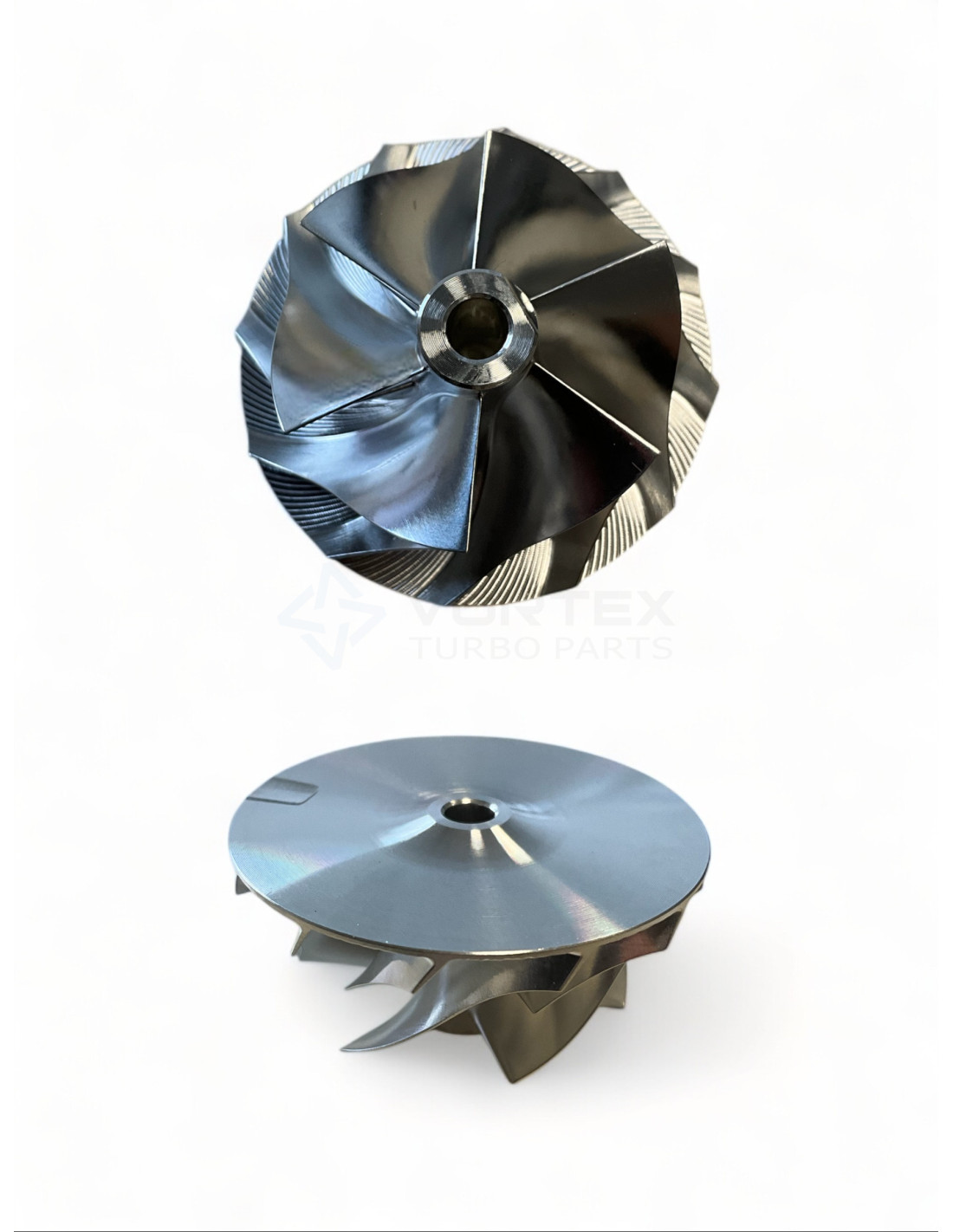

Sparnuotė CW-I007BR
CW-I007BR
Nauja
Please login to see prices and stock
Sparnuotė CW-I007BR for turbos 04E145701B, 04E145704C, 04E145704D, 04E145704F, 04E145704P, 04E145704Q, 04E145713N, 04E145721B, 04E145721F, 04E145721G.
CW-I007BR - Sparnuotė
Brand: Vortex
Vortex Reference: CW-I007BR
CW-I007BR - Compatibility table
| Sparnuotė CW-I007BR - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| IHI | RHF3 | 04E145701B | 04E145701B |
| IHI | RHF3 | 04E145704C | 04E145704C |
| IHI | RHF3 | 04E145704D | 04E145704D |
| IHI | RHF3 | 04E145704F | 04E145704F |
| IHI | RHF3 | 04E145704P | 04E145704P |
| IHI | RHF3 | 04E145704Q | 04E145704Q |
| IHI | RHF3 | 04E145713N | 04E145713N |
| IHI | RHF3 | 04E145721B | 04E145721B |
| IHI | RHF3 | 04E145721F | 04E145721F |
| IHI | RHF3 | 04E145721G | 04E145721G |
| IHI | RHF3 | 04E145721N | 04E145721N |
| IHI | RHF3 | 04E145721P | 04E145721P |
CW-I007BR - Part Properties
Blades (Compressor wheel blades count): 6/6
Trim (Compressor wheel trim): Deep Superback

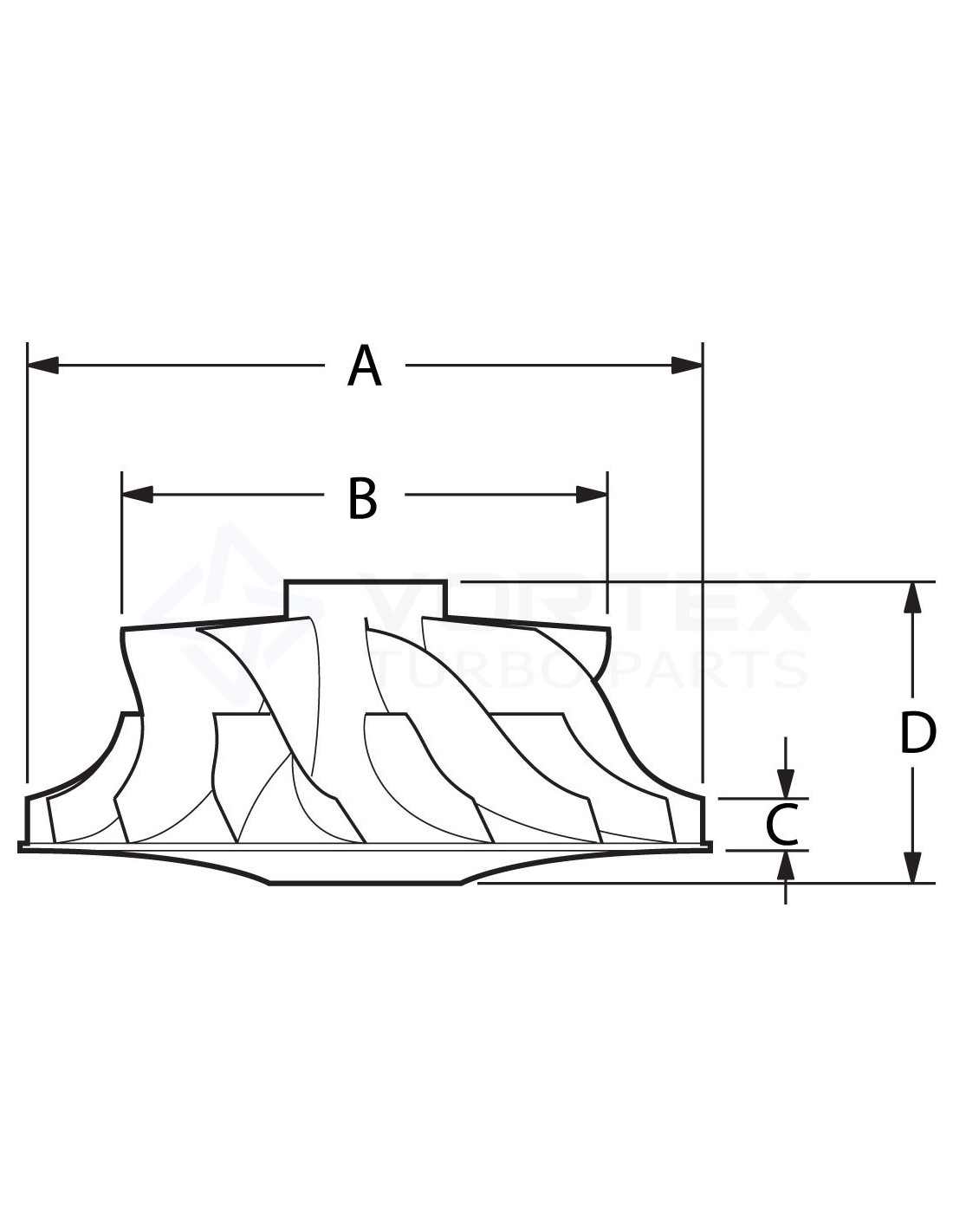

Išorinis matmuo A (Išorinis matmuo A): 41.0
Vidinis matmuo B (Vidinis matmuo B): 31.3
Pakilimo aukštis C (Pakilimo aukštis C): 4.1
Bendras aukštis D (Bendras Aukštis D): 21.5
Billet / Casting (Billet / Casting): Billet
Rotation (Rotation): Reverse
Model (Model): RHF3
04E145701B, 04E145704C, 04E145704D, 04E145704F, 04E145704P, 04E145704Q, 04E145713N, 04E145721B, 04E145721F, 04E145721G, 04E145721N, 04E145721P
Data updated: 2025-07-10 09:56:33
