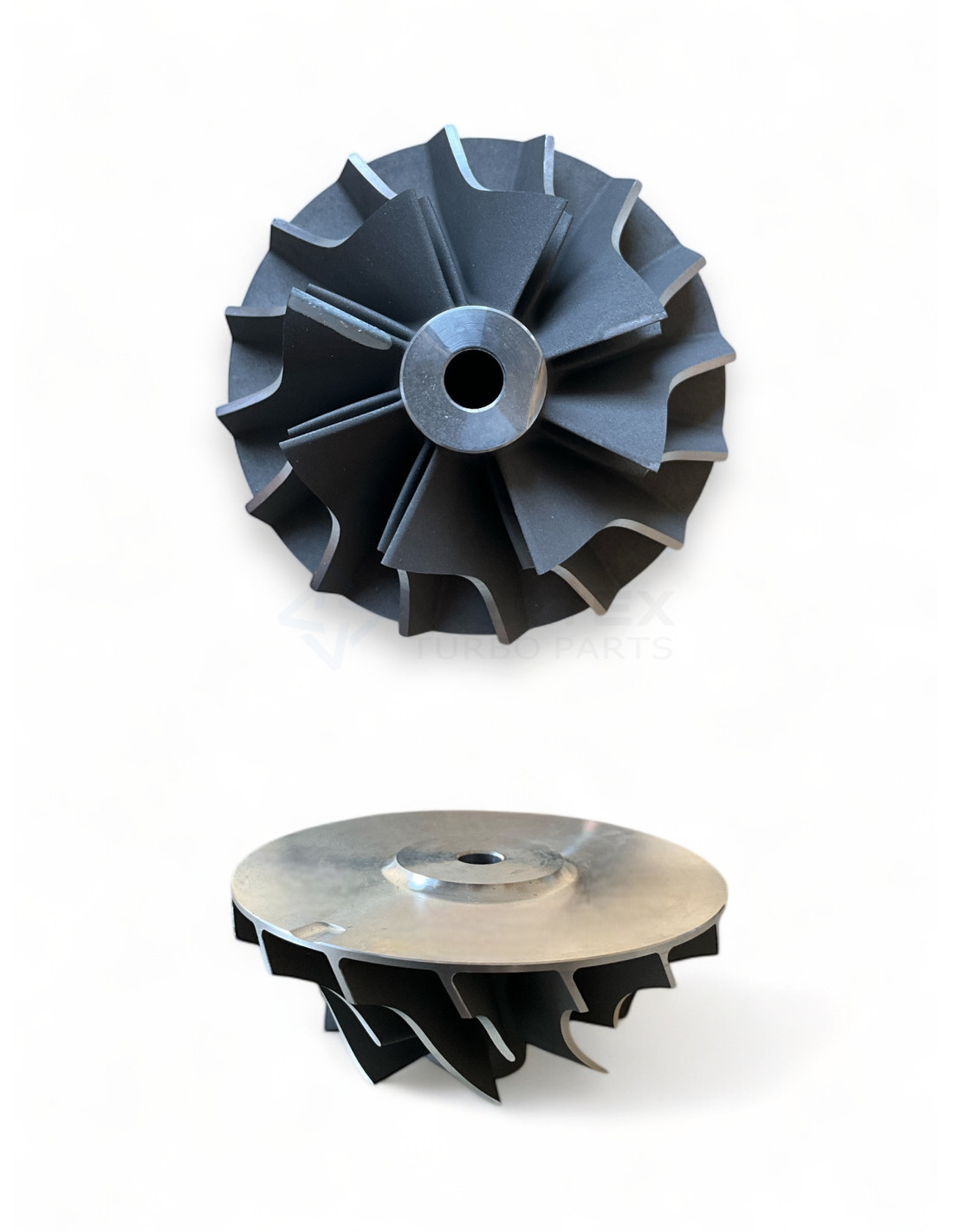

Sparnuotė CW-G125
CW-G125
Nauja
Please login to see prices and stock
409179-0029, CW-G125
Sparnuotė CW-G125 for turbos 409220-0001, 409220-0003, 409300-0024, 465044-0251, 465288-0003, 465366-0001, 466210-0001.
CW-G125 - Sparnuotė
Brand: Vortex
Vortex Reference: CW-G125
CW-G125 - Alternative numbers
GHO (Garrett original part number): 409179-0029
CW-G125 - Compatibility table
| Sparnuotė CW-G125 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | T04B21 | 409220-0001 | -- |
| Garrett | T04B21 | 409220-0003 | -- |
| Garrett | T04B27 | 409300-0024 | -- |
| Garrett | T04B59 | 465044-0251 | -- |
| Garrett | T04B94 | 465288-0003 | -- |
| Garrett | T04B81 | 465366-0001 | -- |
| Garrett | TW4104 | 466210-0001 | -- |
CW-G125 - Part Properties
Blades (Compressor wheel blades count): 8/8
Trim (Compressor wheel trim): Stepped Back

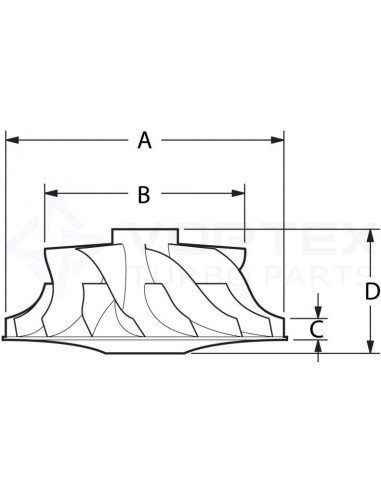

Išorinis matmuo A (Išorinis matmuo A): 70.0
Vidinis matmuo B (Vidinis matmuo B): 45.7
Pakilimo aukštis C (Pakilimo aukštis C): 6.7
Bendras aukštis D (Bendras Aukštis D): 32.0
Model (Model): T3/T4
409220-0001, 409220-0003, 409300-0024, 465044-0251, 465288-0003, 465366-0001, 466210-0001
Data updated: 2025-07-16 09:00:46
Nauja
No reviews
Paspausti kad padidinti
