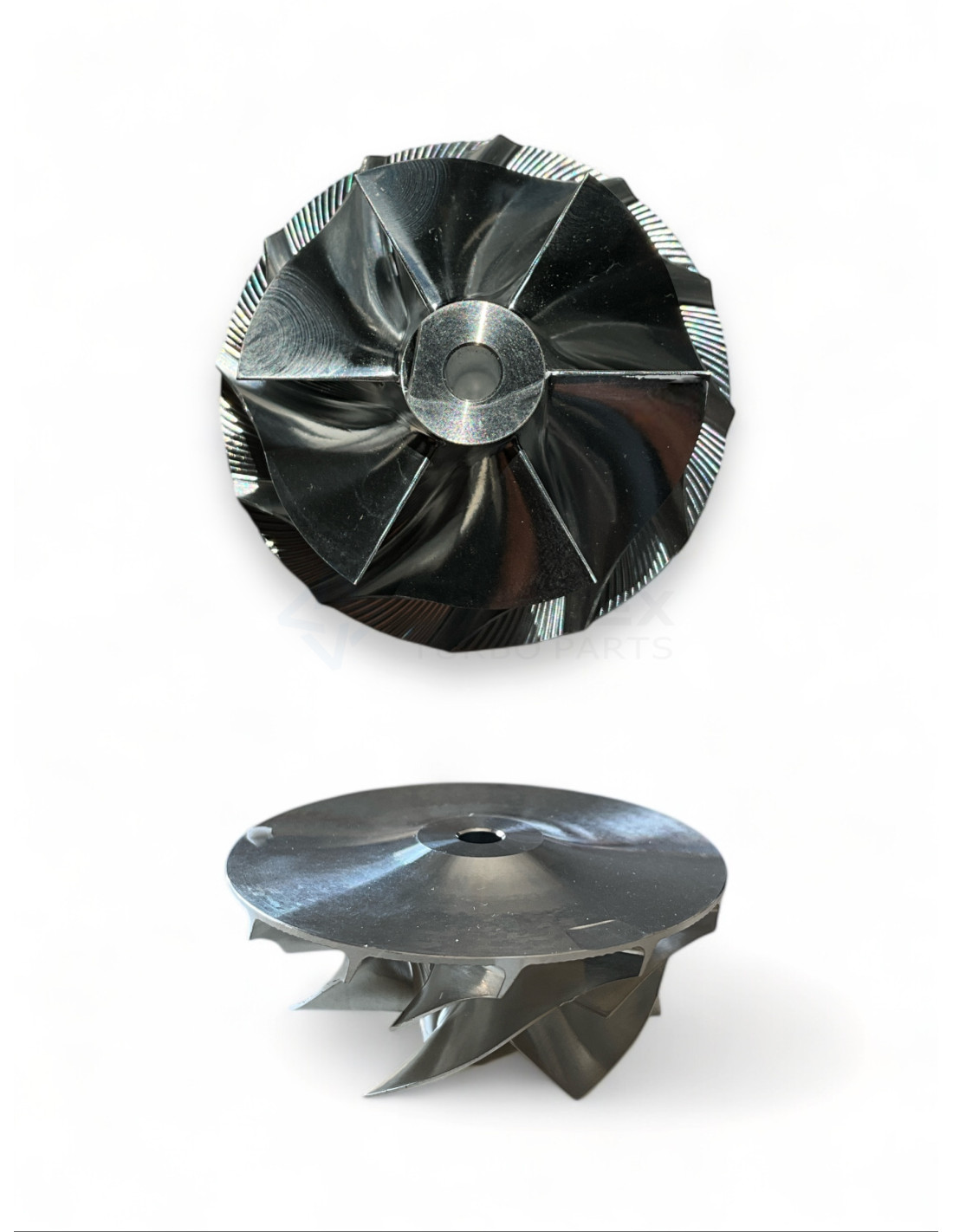

Sparnuotė CW-M028BR
Sparnuotė CW-M028BR
Sparnuotė CW-M028BR
Sparnuotė CW-M028BR

Sparnuotė CW-M028BR

CW-M028BR
Nauja
Please login to see prices and stock

Sparnuotė CW-M028BR for turbos 49477-02401, 49477-02402, 49477-02403, 49477-02404, 49477-02405, 49477-02406, 49477-02407, 49477-02408, 49477-02409, 49477-02410.



CW-M028BR - Sparnuotė

Brand: Vortex

Vortex Reference: CW-M028BR

CW-M028BR - Compatibility table

Sparnuotė CW-M028BR - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
MitsubishiTD04LR6W49477-02401--
MitsubishiTD04LR6W49477-02402--
MitsubishiTD04LR6W49477-02403--
MitsubishiTD04LR6W49477-02404--
MitsubishiTD04LR6W49477-02405--
MitsubishiTD04LR6W49477-02406--
MitsubishiTD04LR6W49477-02407--
MitsubishiTD04LR6W49477-02408--
MitsubishiTD04LR6W49477-02409--
MitsubishiTD04LR6W49477-02410--
MitsubishiTD04LR6W49477-02411--
MitsubishiTD04LR6W49477-02412--
MitsubishiTD04LR6W49477-02413--
MitsubishiTD04LR6W49477-02414--
MitsubishiTD04LR6W49477-02420--
MitsubishiTD04LR6W49477-02421--
MitsubishiTD04LR6W49477-02422--
MitsubishiTD04LR6W49477-02423--
MitsubishiTD04LR6W49477-02424--
MitsubishiTD04LR6W49477-02425--
MitsubishiTD04LR6W49477-02427--
MitsubishiTD04LR6W49477-02428--
MitsubishiTD04LR6W49477-02429--
MitsubishiTD04LR6W49477-02430--
MitsubishiTD04LR6W49477-02440--
MitsubishiTD04LR6W49477-02441--
MitsubishiTD04LR6W49477-02454--
MitsubishiTD04LR6W49477-02457--

CW-M028BR - Part Properties

Blades (Compressor wheel blades count): 6/6

Trim (Compressor wheel trim): Deep Superback

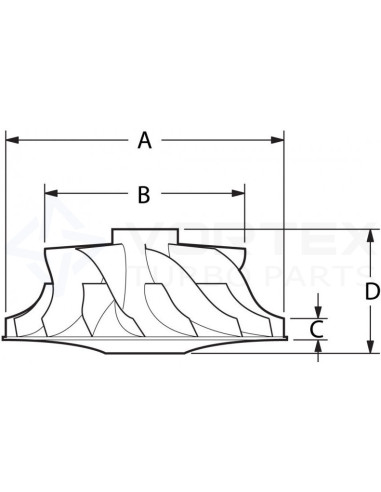

Išorinis matmuo A (Išorinis matmuo A): 56.0

Vidinis matmuo B (Vidinis matmuo B): 44.5

Pakilimo aukštis C (Pakilimo aukštis C): 4.4

Bendras aukštis D (Bendras Aukštis D): 26.3

Billet / Casting (Billet / Casting): Billet

Rotation (Rotation): Reverse

Model (Model): TD04

49477-02401, 49477-02402, 49477-02403, 49477-02404, 49477-02405, 49477-02406, 49477-02407, 49477-02408, 49477-02409, 49477-02410, 49477-02411, 49477-02412, 49477-02413, 49477-02414, 49477-02420, 49477-02421, 49477-02422, 49477-02423, 49477-02424, 49477-02425, 49477-02427, 49477-02428, 49477-02429, 49477-02430, 49477-02440, 49477-02441, 49477-02454, 49477-02457

Data updated: 2025-07-15 14:23:39
