Sparnuotė CW-G156
Sparnuotė CW-G156
Sparnuotė CW-G156
Sparnuotė CW-G156

Sparnuotė CW-G156

CW-G156
Nauja
Please login to see prices and stock

442293-0009, CW-G156

Sparnuotė CW-G156 for turbos 452003-0001, 452072-0002, 465283-0001, 465283-0002, 465283-0003, 465443-0003, 465523-0001, 465633-0005, 465633-0007, 466159-0002.



CW-G156 - Sparnuotė

Brand: Vortex

Vortex Reference: CW-G156

CW-G156 - Alternative numbers

GHO (Garrett original part number): 442293-0009

CW-G156 - Compatibility table

Sparnuotė CW-G156 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettT04E66-2452003-0001--
GarrettT04E66-2452072-0002--
GarrettT04E66-2465283-0001--
GarrettT04E66-2465283-0002--
GarrettT04E66-2465283-0003--
GarrettT04E66-2465443-0003--
GarrettT04E66-2465523-0001--
GarrettT04E66-2465633-0005--
GarrettT04E66-2465633-0007--
GarrettT04E66-2466159-0002--
GarrettT04E66-2466588-0002--
GarrettT04E66-2466588-0004--
GarrettT04E66-2466588-0005--
GarrettT04E66-2466646-0016--
GarrettTBP4466679-0001--
GarrettT04E66-2466704-0203--
GarrettT04E66-2466722-0001--
GarrettT04E66-2466722-0003--
GarrettT04E66-2466722-0004--
GarrettT04E66-2466722-0005--
GarrettT04E66-2466742-0003--
GarrettT04E66-2466780-0001--
GarrettT04E66-2468414-0000--

CW-G156 - Part Properties

Blades (Compressor wheel blades count): 6/6

Trim (Compressor wheel trim): Superback

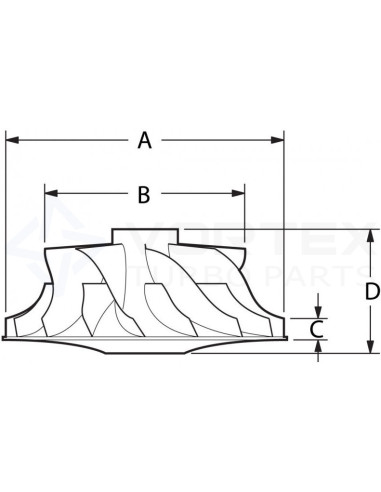

Išorinis matmuo A (Išorinis matmuo A): 75.0

Vidinis matmuo B (Vidinis matmuo B): 48.5

Pakilimo aukštis C (Pakilimo aukštis C): 5.5

Bendras aukštis D (Bendras Aukštis D): 37.5

Model (Model): T3/T4

452003-0001, 452072-0002, 465283-0001, 465283-0002, 465283-0003, 465443-0003, 465523-0001, 465633-0005, 465633-0007, 466159-0002, 466588-0002, 466588-0004, 466588-0005, 466646-0016, 466679-0001, 466704-0203, 466722-0001, 466722-0003, 466722-0004, 466722-0005, 466742-0003, 466780-0001, 466722-0001
