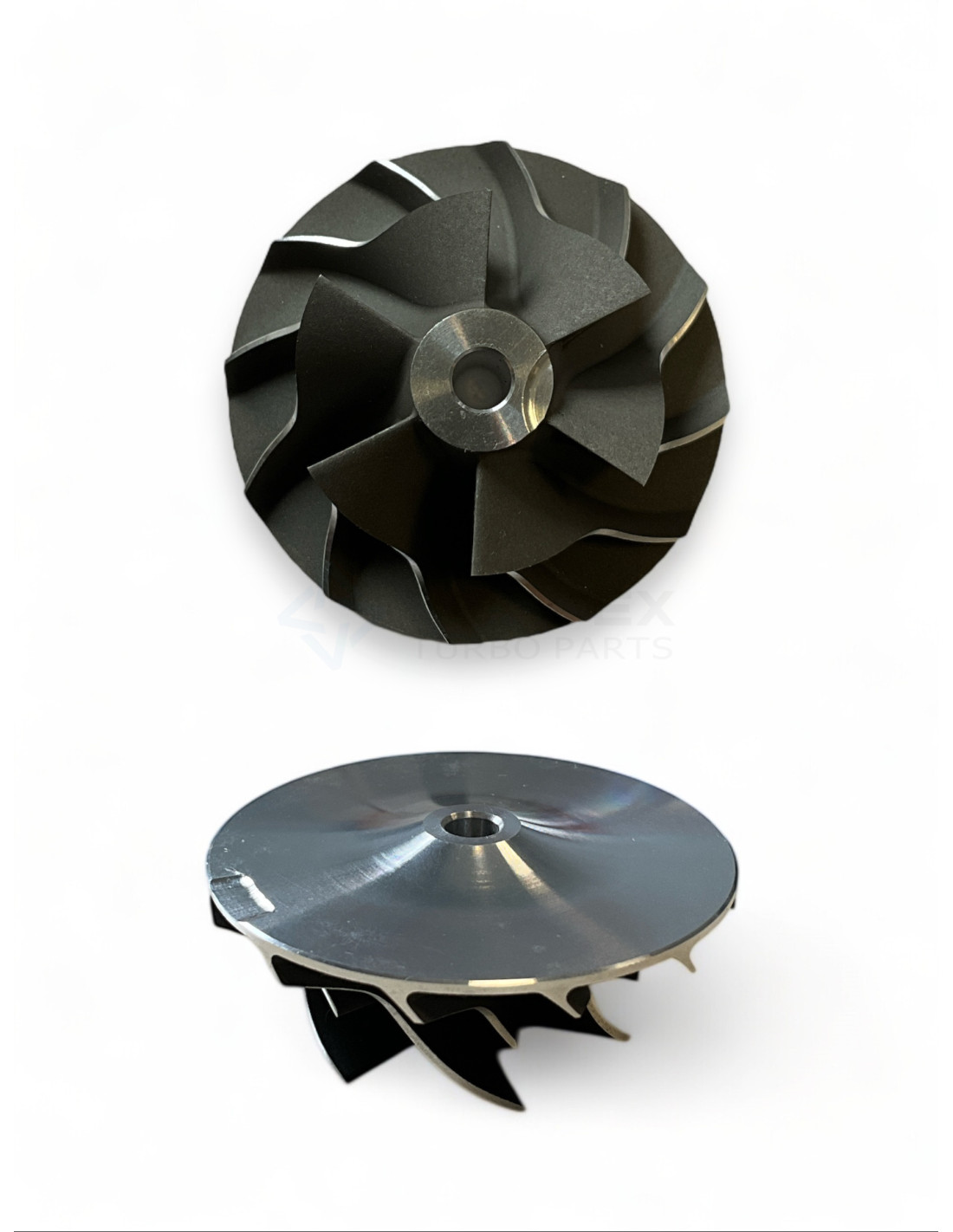

Sparnuotė CW-G025
Sparnuotė CW-G025

Sparnuotė CW-G025

CW-G025
Nauja
9,08 €
Su mokesčiais

434812-0001, 434812-0002, CW-G025

Sparnuotė CW-G025 for turbos 454183-0001, 454183-0002, 454183-0003, 454183-0004, 454183-0005, 454195-0001, 454231-0001, 454231-0002, 454231-0003, 454231-0004.



CW-G025 - Sparnuotė

Brand: Vortex

Vortex Reference: CW-G025

CW-G025 - Alternative numbers

GHO (Garrett original part number): 434812-0001

GHO (Garrett original part number): 434812-0002

CW-G025 - Compatibility table

Sparnuotė CW-G025 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1749V454183-0001028145702E
GarrettGT1749V454183-0002028145702E
GarrettGT1749V454183-0003028145702E
GarrettGT1749V454183-0004028145702E
GarrettGT1749V454183-0005028145702E
GarrettGT1749V454195-0001--
GarrettGT1749V454231-0001028145702H
GarrettGTA1749V454231-0002028145702R, 038145702L
GarrettGT1749V454231-0003028145702H
GarrettGT1749V454231-0004028145702H
GarrettGT1749V454231-0005028145702H, 028145702HV225
GarrettGT1749V454231-0006028145702R, 028145702RV225, 038145702L
GarrettGT1749V454231-0008028145702R, 028145702RV500, 038145702L
GarrettGT1749V454231-0009028145702R, 028145702RV550, 038145702L
GarrettGTA1749V454231-0010038145702L
GarrettGT1749V454231-0012028145702H, 028145702HV500
GarrettGT1749V454231-0013028145702R, 038145702L
GarrettGT1749V454232-0001038253019, 038253019A
GarrettGT1749V454232-0002038253019D
GarrettGT1749V454232-0003038253019, 038253019A, 03G253016K
GarrettGT1749V454232-0004038253019, 038253019A
GarrettGT1749V454232-0005038253019, 038253019A, 038253019AV200
GarrettGT1749V454232-0006038253019D
GarrettGT1749V454232-0011038253019D, 038253019DV500
GarrettGTA1749MV454232-0014038253019DV500
GarrettGT1749V701854-0002--
GarrettGT1749V701854-0003--
GarrettGT1749V701854-0004--
GarrettGT1749V701855-0001028145702P, 1094742, 95VW9G438BA
GarrettGT1749V701855-0002028145702S, 1094743, 95VW9G438CA
GarrettGT1749V701855-0005028145702P, 028145702PV500
GarrettGT1749V701855-0006028145702S, 028145702SV500
GarrettGT1749V701855-0007028145702P, 028145702PV500
GarrettGT1749V701855-0008028145702S, 028145702SV500
GarrettGT1749V704505-0001--
GarrettGT1749V712968-0001038253019L, 03G253016P
GarrettGT1749V712968-0002038253019L, 03G253016P
GarrettGT1749V712968-0003038253019L, 038253019LV225, 03G253016P
GarrettGT1749V712968-0004038253019L, 038253019LV500, 03G253016P
GarrettGT1749V712968-0005038253019L, 038253019LV500, 03G253016P
GarrettGT1749V712968-0006038253019L, 03G253016P
GarrettGT1749V712968-0007038253019L, 03G253016P
GarrettGT1749V713672-0001038253019C, 03G253016L
GarrettGT1749V713672-0002038253019C, 038253019CV500, 03G253016L
GarrettGT1749V713672-0003038253019C, 038253019CV225, 03G253016N
GarrettGT1749V713672-0004038253019C, 038253019CV500, 03G253016L
GarrettGT1749V713672-0005038253019C, 038253019CV500, 03G253016L, 03G253016N
GarrettGT1749V713672-0006038253019C, 03G253016L, 03G253016N
GarrettGT1749V713673-0002038253019N, 038253019NV225, 03G253014E
GarrettGT1749V713673-0003038253019N, 038253019NV225, 03G253014E
GarrettGT1749V713673-0004038253019N, 038253019NV500, 03G253014E, 1135819, 1556571, 6M219G438AA, YM219G438BA
GarrettGT1749V713673-0005038253019NV500, 1135819, 6M219G438AA
GarrettGT1749V713673-0006038253019N, 03G253014E, 1556571
GarrettGT1749V713673-0007038253019N, 03G253014E, 1135819, 1556571, 6M219G438AA, YM219G438BA
GarrettGT1749V716419-0002--
GarrettGT1749V722730-0001038253016H
GarrettGT1749V722730-0003038253016H, 038253016HV500
GarrettGT1749V722730-0005038253016H, 038253016HV500
GarrettGT1749V768329-0001--
GarrettGT1749V768331-0001038253019C, 03G253014R, 03G253016L
GarrettGT1749V768331-0002038253019C, 03G253014R, 03G253016L

CW-G025 - Part Properties

Blades (Compressor wheel blades count): 6/6

Trim (Compressor wheel trim): Superback

Išorinis matmuo A (Išorinis matmuo A): 49.0

Vidinis matmuo B (Vidinis matmuo B): 32.9

Pakilimo aukštis C (Pakilimo aukštis C): 4.0

Bendras aukštis D (Bendras Aukštis D): 22.2

Model (Model): GT15-25

028145702E, 454183-0001, 028145702E, 454183-0002, 028145702E, 454183-0003, 028145702E, 454183-0004, 028145702E, 454183-0005, 454195-0001, 028145702H, 454231-0001, 028145702R, 038145702L, 454231-0002, 028145702H, 454231-0003, 028145702H, 454231-0004, 028145702H, 028145702HV225, 454231-0005, 028145702R, 028145702RV225, 038145702L, 454231-0006, 028145702R, 028145702RV500, 038145702L, 454231-0008, 028145702R, 028145702RV550, 038145702L, 454231-0009, 038145702L, 454231-0010, 028145702H, 028145702HV500, 454231-0012, 028145702R, 038145702L, 454231-0013, 038253019, 038253019A, 454232-0001, 038253019D, 454232-0002, 038253019, 038253019A, 03G253016K, 454232-0003, 038253019, 038253019A, 454232-0004, 038253019, 038253019A, 038253019AV200, 454232-0005, 038253019D, 454232-0006, 038253019D, 038253019DV500, 454232-0011, 038253019DV500, 454232-0014, 701854-0002, 701854-0003, 701854-0004, 028145702P, 1094742, 701855-0001, 95VW9G438BA, 028145702S, 1094743, 701855-0002, 95VW9G438CA, 028145702P, 028145702PV500, 701855-0005, 028145702S, 028145702SV500, 701855-0006, 028145702P, 028145702PV500, 701855-0007, 028145702S, 028145702SV500, 701855-0008, 704505-0001, 038253019L, 03G253016P, 712968-0001, 038253019L, 03G253016P, 712968-0002, 038253019L, 038253019LV225, 03G253016P, 712968-0003, 038253019L, 038253019LV500, 03G253016P, 712968-0004, 038253019L, 038253019LV500, 03G253016P, 712968-0005, 038253019L, 03G253016P, 712968-0006, 038253019L, 03G253016P, 712968-0007, 038253019C, 03G253016L, 713672-0001, 038253019C, 038253019CV500, 03G253016L, 713672-0002, 038253019C, 038253019CV225, 03G253016N, 713672-0003, 038253019C, 038253019CV500, 03G253016L, 713672-0004, 038253019C, 038253019CV500, 03G253016L, 03G253016N, 713672-0005, 038253019C, 03G253016L, 03G253016N, 713672-0006, 038253019N, 038253019NV225, 03G253014E, 713673-0002, 038253019N, 038253019NV225, 03G253014E, 713673-0003, 038253019N, 038253019NV500, 03G253014E, 1135819, 1556571, 6M219G438AA, 713673-0004, YM219G438BA, 038253019NV500, 1135819, 6M219G438AA, 713673-0005, 038253019N, 03G253014E, 1556571, 713673-0006, 038253019N, 03G253014E, 1135819, 1556571, 6M219G438AA, 713673-0007, YM219G438BA, 716419-0002, 038253016H, 722730-0001, 038253016H, 038253016HV500, 722730-0003, 038253016H, 038253016HV500, 722730-0005, 768329-0001, 038253019C, 03G253014R, 03G253016L, 768331-0001, 038253019C, 03G253014R, 03G253016L, 768331-0002

Data updated: 2024-06-22 13:02:36
