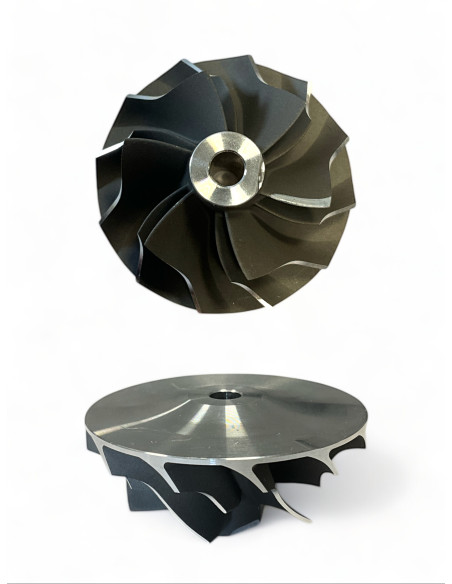

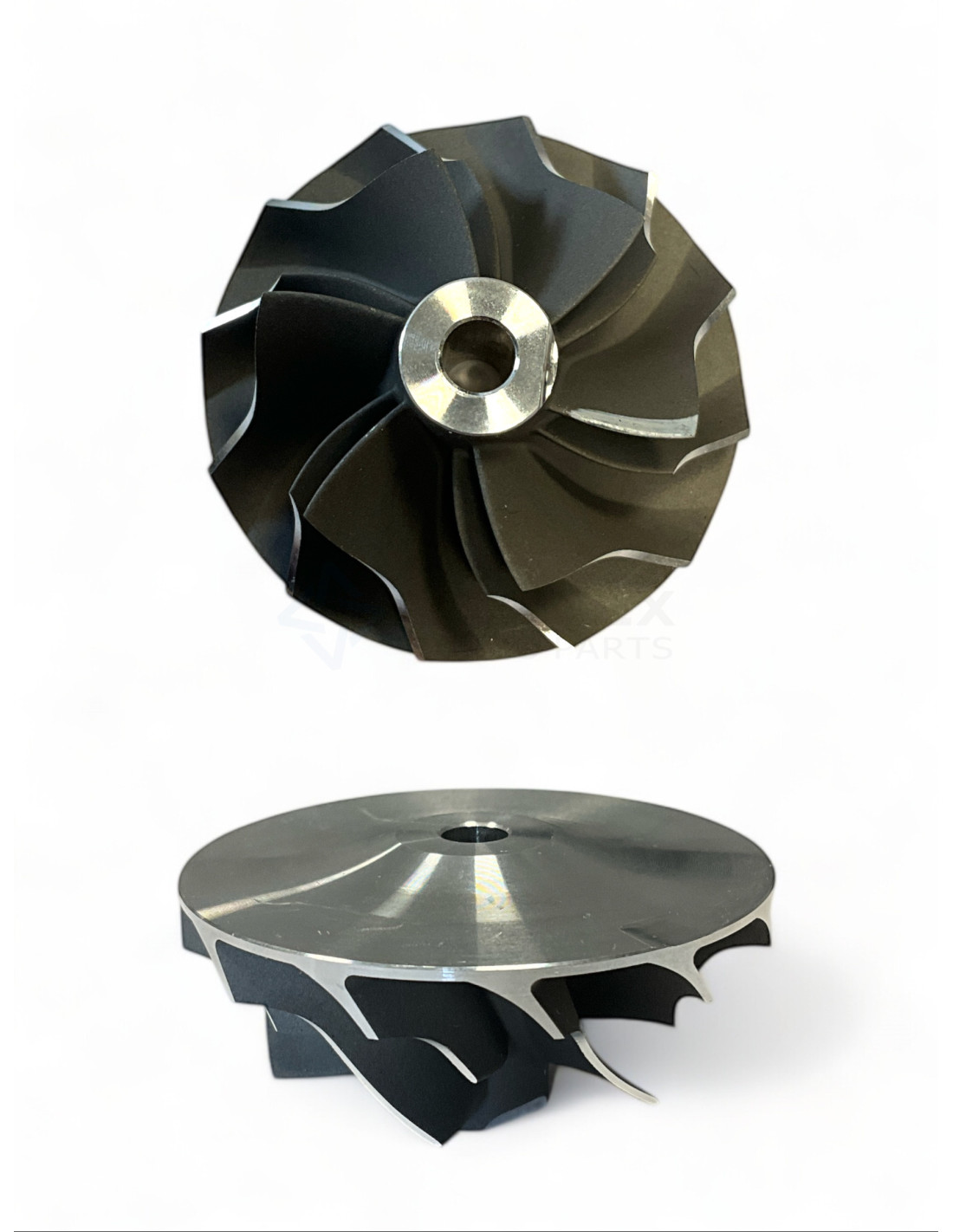

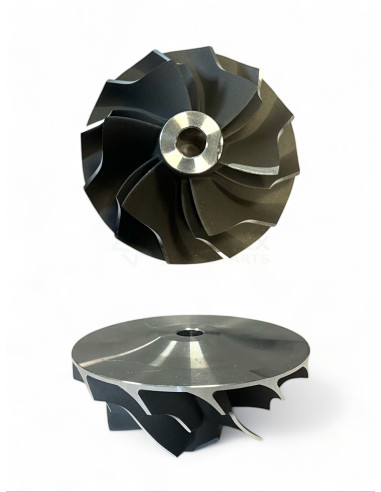

Sparnuotė CW-G111
447449-0008, CW-G111
Sparnuotė CW-G111 for turbos 454047-0001, 454047-0002, 454054-0001, 454054-0002, 454059-0004, 454062-0001, 454062-0002, 454062-0003, 454062-0004, 466491-0001.
CW-G111 - Sparnuotė
Brand: Vortex
Vortex Reference: CW-G111
CW-G111 - Alternative numbers
GHO (Garrett original part number): 447449-0008
CW-G111 - Compatibility table
| Sparnuotė CW-G111 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | TB2549 | 454047-0001 | -- |
| Garrett | TB2549 | 454047-0002 | -- |
| Garrett | TB2538 | 454054-0001 | 60607750 |
| Garrett | TB2538 | 454054-0002 | 60607750 |
| Garrett | TB256 | 454059-0004 | -- |
| Garrett | TB25 | 454062-0001 | -- |
| Garrett | TB025 | 454062-0002 | -- |
| Garrett | TB25 | 454062-0003 | -- |
| Garrett | TB25 | 454062-0004 | -- |
| Garrett | TB2566 | 466491-0001 | -- |
| Garrett | TB2566 | 466491-0003 | -- |
| Garrett | TB2566 | 466491-0004 | -- |
| Garrett | TB2566 | 466491-0005 | -- |
| Garrett | TB2566 | 466491-0006 | -- |
| Garrett | TB2574 | 700467-0001 | -- |
| Garrett | GT25C | 703325-0001 | 82145701 |
| Garrett | GT255 | 704091-0001 | -- |
| Garrett | GT2552S | 704344-0001 | -- |
| Garrett | GT2552S | 704344-0002 | -- |
CW-G111 - Part Properties
Blades (Compressor wheel blades count): 6/6
Trim (Compressor wheel trim): Superback

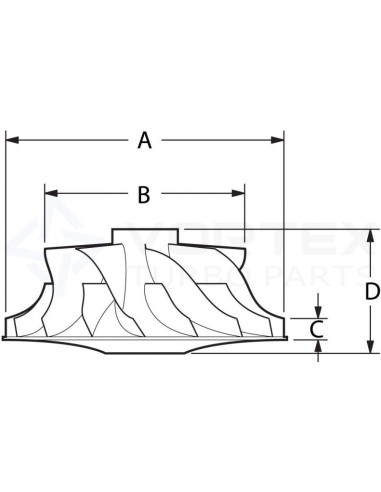

Išorinis matmuo A (Išorinis matmuo A): 52.2
Vidinis matmuo B (Vidinis matmuo B): 38.8
Pakilimo aukštis C (Pakilimo aukštis C): 6.0
Bendras aukštis D (Bendras Aukštis D): 26.0
Model (Model): T2/T25/T28
454047-0001, 454047-0002, 454054-0001, 60607750, 454054-0002, 60607750, 454059-0004, 454062-0001, 454062-0002, 454062-0003, 454062-0004, 466491-0001, 466491-0003, 466491-0004, 466491-0005, 466491-0006, 700467-0001, 703325-0001, 82145701, 704091-0001, 704344-0001, 704344-0002
Data updated: 2025-09-08 19:24:56
