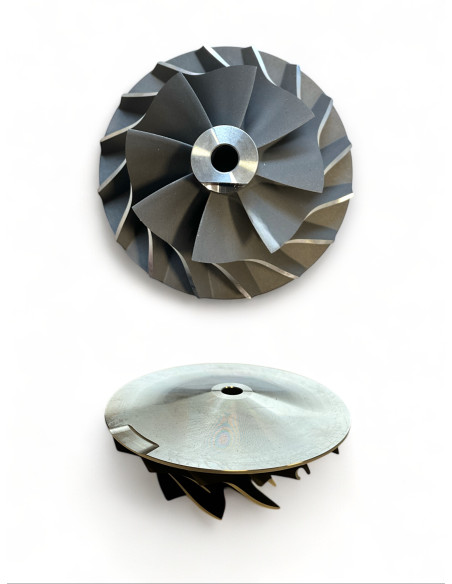

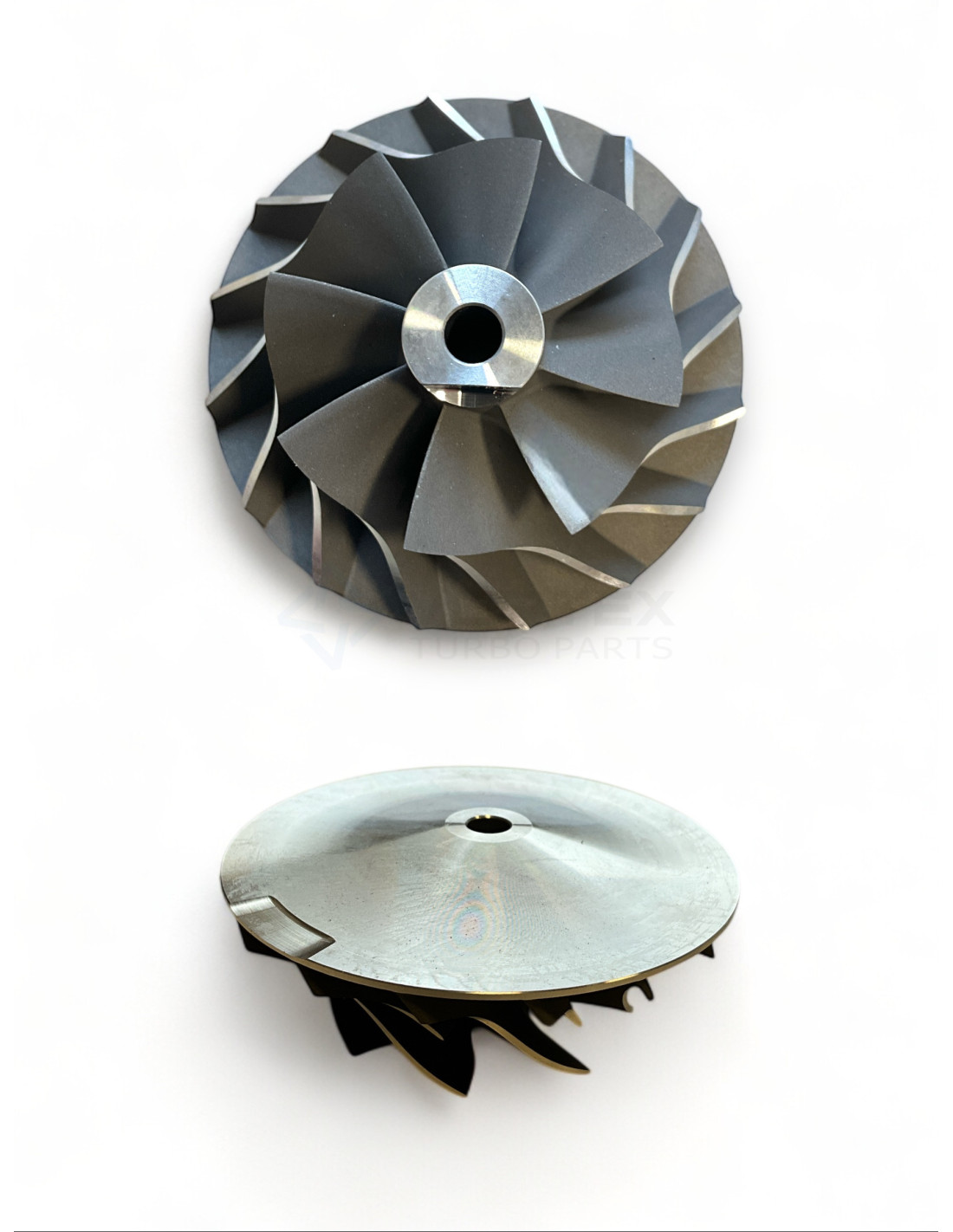

Sparnuotė CW-H012
CW-H012
Nauja
Please login to see prices and stock
3599594, CW-H012
Sparnuotė CW-H012 for turbos 3536313, 3536321, 3536473, 3536971, 3593209, 3597248, 3597508, 3597960, 3791099.
CW-H012 - Sparnuotė
Brand: Vortex
Vortex Reference: CW-H012
CW-H012 - Alternative numbers
HSP (Holset original part number): 3599594
CW-H012 - Compatibility table
| Sparnuotė CW-H012 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Holset | HX35W | 3536313 | -- |
| Holset | HX35W | 3536321 | -- |
| Holset | HX35 | 3536473 | -- |
| Holset | HX35W | 3536971 | -- |
| Holset | HX35 | 3593209 | -- |
| Holset | H1C | 3597248 | -- |
| Holset | H1C | 3597508 | -- |
| Holset | HX35W | 3597960 | -- |
| Holset | HX50 | 3791099 | -- |
CW-H012 - Part Properties
Blades (Compressor wheel blades count): 8/8
Trim (Compressor wheel trim): Superback
Išorinis matmuo A (Išorinis matmuo A): 83.0
Vidinis matmuo B (Vidinis matmuo B): 54.0
Pakilimo aukštis C (Pakilimo aukštis C): 6.2
Bendras aukštis D (Bendras Aukštis D): 40.0
Model (Model): HX35
3536313, 3536321, 3536473, 3536971, 3593209, 3597248, 3597508, 3597960, 3791099
Data updated: 2025-07-10 15:32:14
