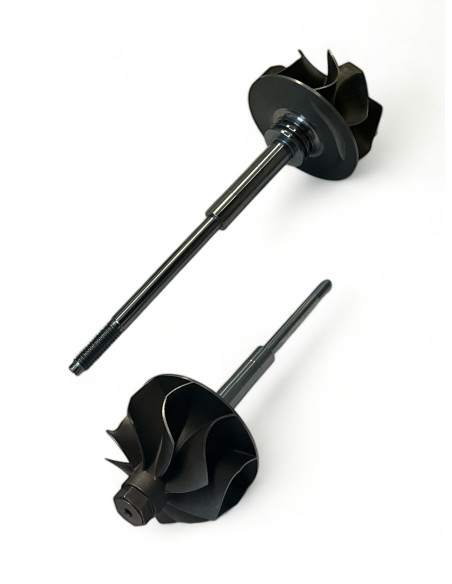

Shaft and wheel SW-G160
SW-G160
Новое
Please login to see prices and stock
Shaft and wheel SW-G160 for turbos 771953-0001, 771955-0001, 797001-0001, 797001-0002.
SW-G160 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G160
SW-G160 - Compatibility table
| Shaft and wheel SW-G160 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GT1756VK | 771953-0001 | -- |
| Garrett | GTB1756VK | 771955-0001 | -- |
| Garrett | GTB1756VK | 797001-0001 | 12645143 |
| Garrett | GTB1756VK | 797001-0002 | 12645143 |
SW-G160 - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 43.0
Exducer Diameter B (Exducer Diameter B): 38.5
Tip Height C (Tip Height C): 9.0
Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1
Shaft Length (mm) (Shaft Length (mm)): 98.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Model (Model): GT15-25
771953-0001, 771955-0001, 12645143, 797001-0001, 12645143, 797001-0002
Data updated: 2025-09-02 17:06:03
