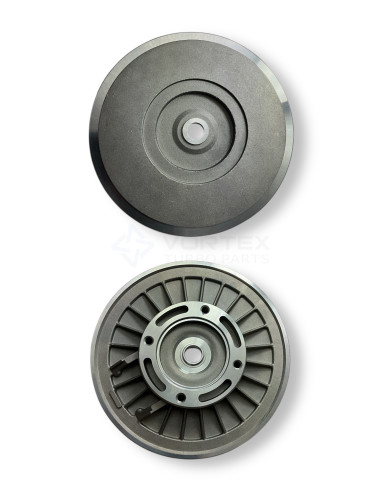

Back plate BP-G065
Back plate BP-G065 for turbos 452003-0001, 452024-0003, 452069-0001, 452071-0001, 452071-0002, 452071-0003, 452072-0002, 452085-0001, 452085-0002, 452085-0003.
BP-G065 - Back plate
Brand: Vortex
Vortex Reference: BP-G065
BP-G065 - Compatibility table
| Back plate BP-G065 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | T04E66-2 | 452003-0001 | -- |
| Garrett | TBP401 | 452024-0003 | -- |
| Garrett | T04 | 452069-0001 | -- |
| Garrett | TBP412 | 452071-0001 | -- |
| Garrett | TBP412 | 452071-0002 | -- |
| Garrett | TBP412 | 452071-0003 | -- |
| Garrett | T04E66-2 | 452072-0002 | -- |
| Garrett | TBP418 | 452085-0001 | -- |
| Garrett | TBP418 | 452085-0002 | -- |
| Garrett | TBP418 | 452085-0003 | -- |
| Garrett | TBP418 | 452085-0005 | -- |
| Garrett | TBP4 | 452240-0001 | -- |
| Garrett | T04E66-2 | 465283-0001 | -- |
| Garrett | T04E66-2 | 465283-0002 | -- |
| Garrett | T04E66-2 | 465283-0003 | -- |
| Garrett | T04E45 | 465355-0011 | -- |
| Garrett | T04E45 | 465355-0012 | -- |
| Garrett | T04E66-2 | 465443-0003 | -- |
| Garrett | T04E66-2 | 465523-0001 | -- |
| Garrett | T04E66-2 | 465633-0005 | -- |
| Garrett | T04E66-2 | 465633-0007 | -- |
| Garrett | TA3408 | 466575-0003 | 3590092 |
| Garrett | T04E66-2 | 466588-0002 | -- |
| Garrett | T04E66-2 | 466588-0004 | -- |
| Garrett | T04E66-2 | 466588-0005 | -- |
| Garrett | T04E66-2 | 466646-0016 | -- |
| Garrett | T04E66-2 | 466704-0203 | -- |
| Garrett | T04E66-2 | 466722-0001 | -- |
| Garrett | T04E66-2 | 466722-0003 | -- |
| Garrett | T04E66-2 | 466742-0003 | -- |
| Garrett | T04E66-2 | 466780-0001 | -- |
| Garrett | T04E66-2 | 468414-0000 | -- |
| Garrett | TBP4 | 759134-0003 | -- |
BP-G065 - Part Properties
Trim (Back plate trim): Superback
A (Size A): 155.0
B (Size B): 140.0
C (Size C): 78.0
D (Size D): 21.5
E (Size E): 12.5
Model (Model): T3/4
452003-0001, 452024-0003, 452069-0001, 452071-0001, 452071-0002, 452071-0003, 452072-0002, 452085-0001, 452085-0002, 452085-0003, 452085-0005, 452240-0001, 465283-0001, 465283-0002, 465283-0003, 465355-0011, 465355-0012, 465443-0003, 465523-0001, 465633-0005, 465633-0007, 3590092, 466575-0003, 466588-0002, 466588-0004, 466588-0005, 466646-0016, 466704-0203, 466722-0001, 466722-0003, 466742-0003, 466780-0001, 466722-0001, 759134-0003
Data updated: 2024-10-29 19:16:39
