Back plate BP-BM001
Back plate BP-BM001

Back plate BP-BM001

BP-BM001
New
Please login to see prices and stock

Back plate BP-BM001 for turbos 030TC11001000, 030TC11002000, 030TC11003000, 030TC11004000, 030TC11005000, 030TC11006000, 04E145703Q, 04E145704L, 04E145704N, 04E145704T.



BP-BM001 - Back plate

Brand: Vortex

Vortex Reference: BP-BM001

BP-BM001 - Compatibility table

Back plate BP-BM001 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BMTSBM003001030TC1100100004E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E
BMTSBM70B030TC1100200004L253010B, 04L253010T, 04L253019Q
BMTSBM70B030TC1100300004L253010K, 04L253010KV, 04L253010KX, 04L253019R, 04L253019RV, 04L253019RX
BMTSBM70B030TC1100400004L253019P
BMTSBM70B030TC1100500004L253019A
BMTSBM65B030TC1100600040006076, 40007249
BMTSBM00300104E145703Q04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E
BMTSBM00300104E145704L04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E
BMTSBM00300104E145704N04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E
BMTSBM00300104E145704T04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E
BMTSBM00300104E145713B04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E
BMTSBM00300104E145713Q04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E
BMTSBM00300104E145721L04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E
BMTSBM00300104E145722E04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E
BMTSBMO1165851365211658513652
BMTSBMO1165851426711658514267
BMTSBM7040003261--
BMTSBM65B40003797--
BMTSBM65B40004364--
BMTSBM7040004795--
BMTSBM7040005341--
BMTSBM65B40005433--
BMTSBM65B40005976--
BMTSBM65B40006199--
BMTSBM7040006360--

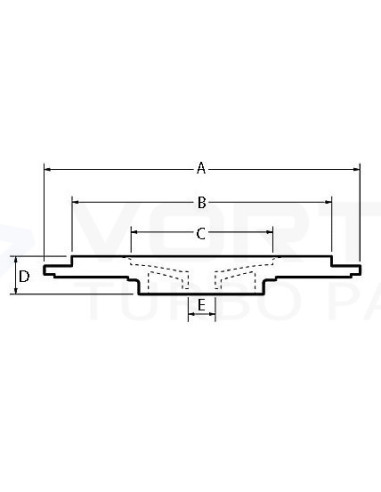

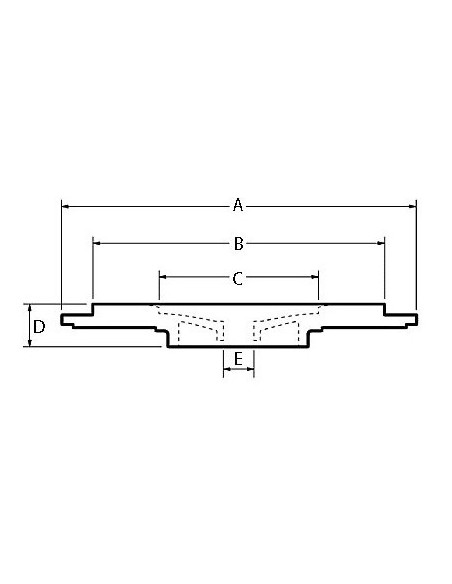

BP-BM001 - Part Properties

Trim (Back plate trim): Flatback

A (Size A): 35.0

D (Size D): 12.0

E (Size E): 10.0

Model (Model): BM65

030TC11001000, 030TC11001000, 030TC11001000, 030TC11001000, 030TC11001000, 030TC11001000, 030TC11001000, 030TC11001000, 030TC11005000, 030TC11004000, 030TC11003000, 030TC11002000, 030TC11001000, 030 TC 11001 000, 04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E, 030 TC 11002 000, 04L253010B, 04L253010T, 04L253019Q, 030 TC 11003 000, 04L253010K, 04L253010KV, 04L253010KX, 04L253019R, 04L253019RV, 04L253019RX, 030 TC 11004 000, 04L253019P, 030 TC 11005 000, 04L253019A, 030TC11006000, 04B053019A, 04B053019H, 04B053019HV, 04B053019R, 40001940, 40002229, 40002260, 40002435, 40002436, 40004233, 40006076, 40007249, 030 TC 11001 000, 04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E, 030 TC 11001 000, 04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E, 030 TC 11001 000, 04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E, 030 TC 11001 000, 04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E, 030 TC 11001 000, 04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E, 030 TC 11001 000, 04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E, 030 TC 11001 000, 04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E, 030 TC 11001 000, 04E145703Q, 04E145704L, 04E145704N, 04E145704T, 04E145713B, 04E145713Q, 04E145721L, 04E145722E, 11658513652, 11658514267, 40003261, 40003797, 8631700, 40004364, 8631897, 40004795, 40005341, 40005433, 8651058, 40005976, 9452135, 40006199, 8631700, 40006360

Data updated: 2025-07-28 16:35:24
