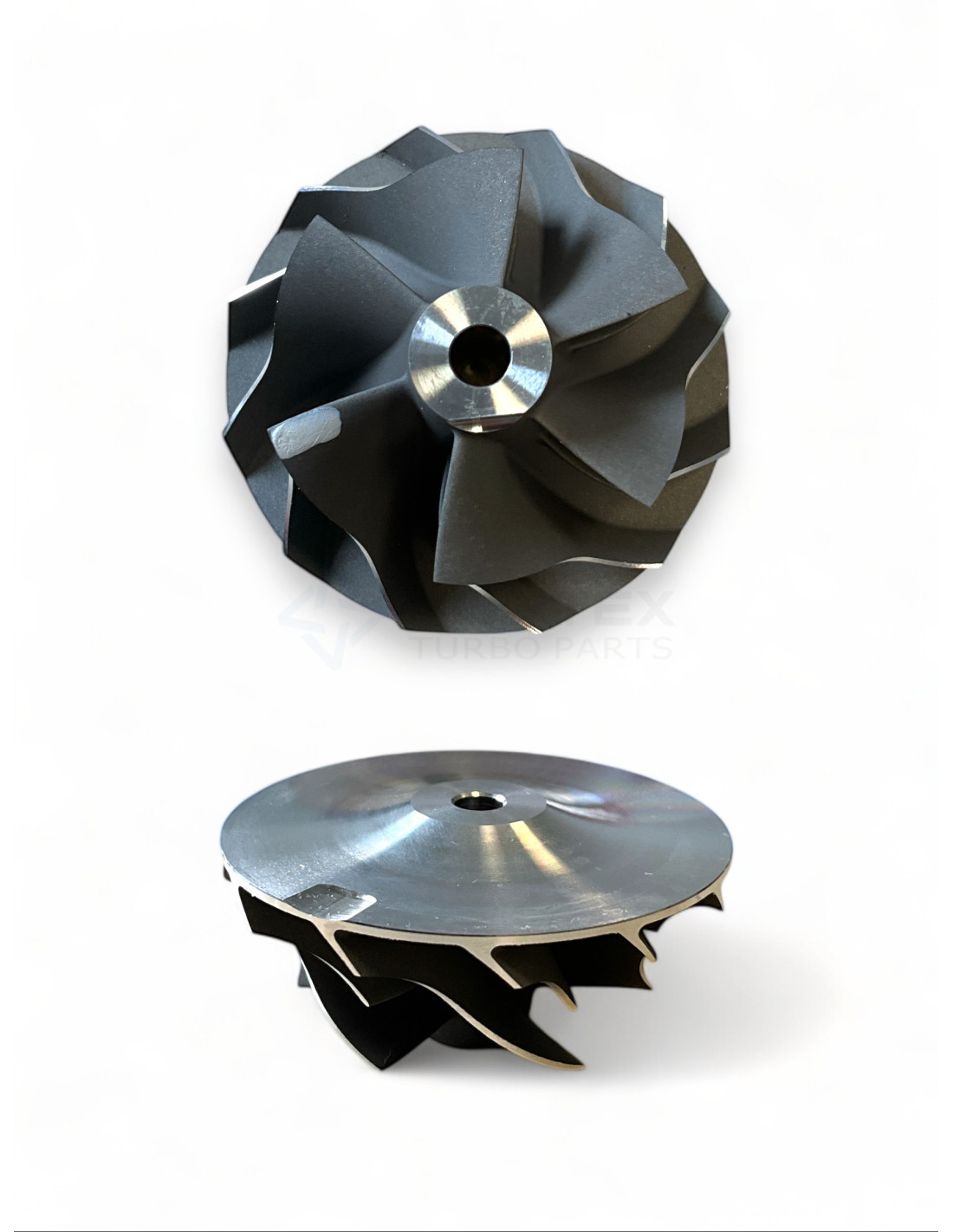

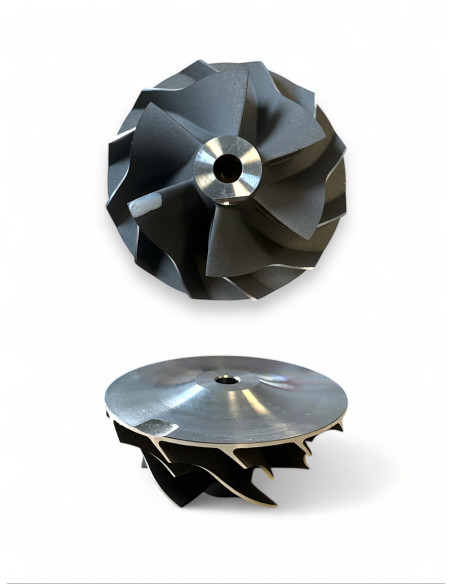

Compressor Wheel CW-G028
Compressor Wheel CW-G028

Compressor Wheel CW-G028

CW-G028
New
In Stock (14 Items)
€12.10
Tax included

436131-0002, CW-G028

Compressor Wheel CW-G028 for turbos 452204-0001, 452204-0003, 452204-0004, 452204-0005, 452204-0007, 454061-0006, 454061-0008, 454061-0009, 454061-0010, 454061-0012.

See below for more info.



CW-G028 - Compressor Wheel

Brand: Vortex

Vortex Reference: CW-G028

CW-G028 - Alternative numbers

GHO (Garrett original part number): 436131-0002

CW-G028 - Compatibility table

Compressor Wheel CW-G028 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1752S452204-00019172123
GarrettGT1752S452204-00039198631
GarrettGT1752S452204-00049172123
GarrettGT1752S452204-00055955703
GarrettGT1752S452204-00075955703
GarrettGT1752S454061-00067701044612
GarrettGT1752S454061-00087701044612
GarrettGT1752S454061-00097701044612
GarrettGT1752S454061-00107701044612, 99466793
GarrettGT1752S454061-001299466793
GarrettGT1752S454061-001399466793
GarrettGT1752S454061-00147701044612, 99466793
GarrettGT2052V480000-0426--
GarrettGT1752S701196-000114411-VB300, 14411VB300
GarrettGT1752S701196-0002--
GarrettGT1752S701196-0003--
GarrettGT1752S701196-000714411-VB301, 14411VB301
GarrettGT2052V705954-0001--
GarrettGT2052V705954-0002--
GarrettGT2052V705954-0003--
GarrettGT2052V705954-0006--

CW-G028 - Part Properties

Blades (Compressor wheel blades count): 6/6

Trim (Compressor wheel trim): Superback

Exducer diameter A (Exducer diameter A): 52.0

Inducer diameter B (Inducer diameter B): 38.6

Tip Height C (Tip Height C): 4.8

Total Height D (Total Height D): 26.1

Model (Model): GT15-25

Data updated: 2023-01-02 15:08:39
