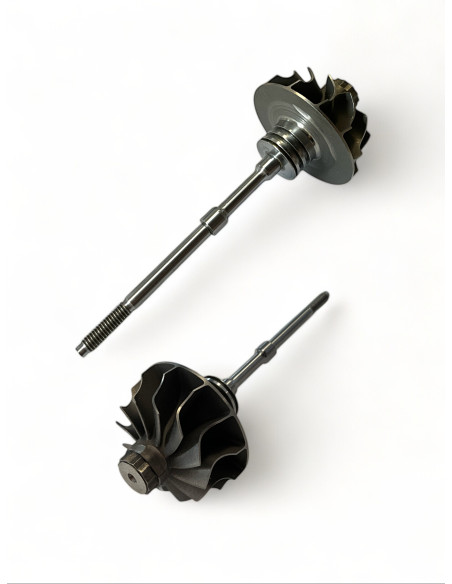

Shaft and wheel SW-G024
SW-G024
New
In Stock
(18 Items)
€33.03
Tax included
Shaft and wheel SW-G024 for turbos 766891-0001, 766891-0002, 784844-0001, 807068-0001, 807068-0002, 807068-0003.
SW-G024 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G024
SW-G024 - Compatibility table
| Shaft and wheel SW-G024 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GT1446SZ | 766891-0001 | -- |
| Garrett | GT1446SZ | 766891-0002 | -- |
| Garrett | GT14 | 784844-0001 | -- |
| Garrett | GT14 | 807068-0001 | -- |
| Garrett | GT14 | 807068-0002 | -- |
| Garrett | GT14 | 807068-0003 | -- |
SW-G024 - Part Properties
Blades (Shaft blades count): 12
Type (Shaft & Wheel Type): Slender
Inducer Diameter A (Inducer Diameter A): 39.0
Exducer Diameter B (Exducer Diameter B): 32.0
Tip Height C (Tip Height C): 5.0
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0
Shaft Length (mm) (Shaft Length (mm)): 80.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Model (Model): GT14
766891-0001, 766891-0002, 784844-0001, 807068-0001, 807068-0002, 807068-0003
Data updated: 2024-10-03 17:17:28
