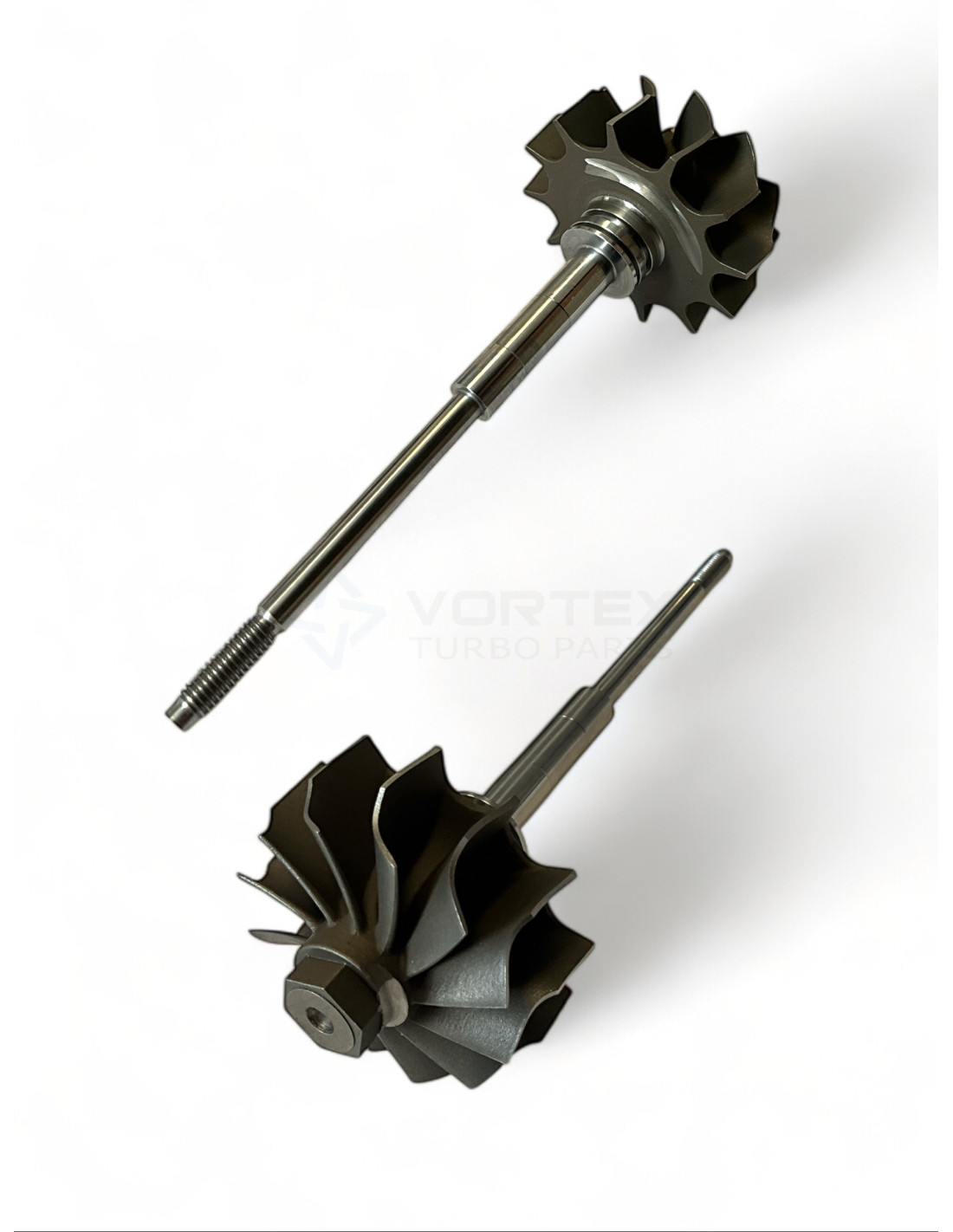

Shaft and wheel SW-G092 for turbos 763360-0001.



SW-G092 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G092

SW-G092 - Compatibility table

Shaft and wheel SW-G092 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT2056V763360-0001--

SW-G092 - Part Properties

Blades (Shaft blades count): 12

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 47.0

Exducer Diameter B (Exducer Diameter B): 42.7

Tip Height C (Tip Height C): 9.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 99.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

763360-0001
