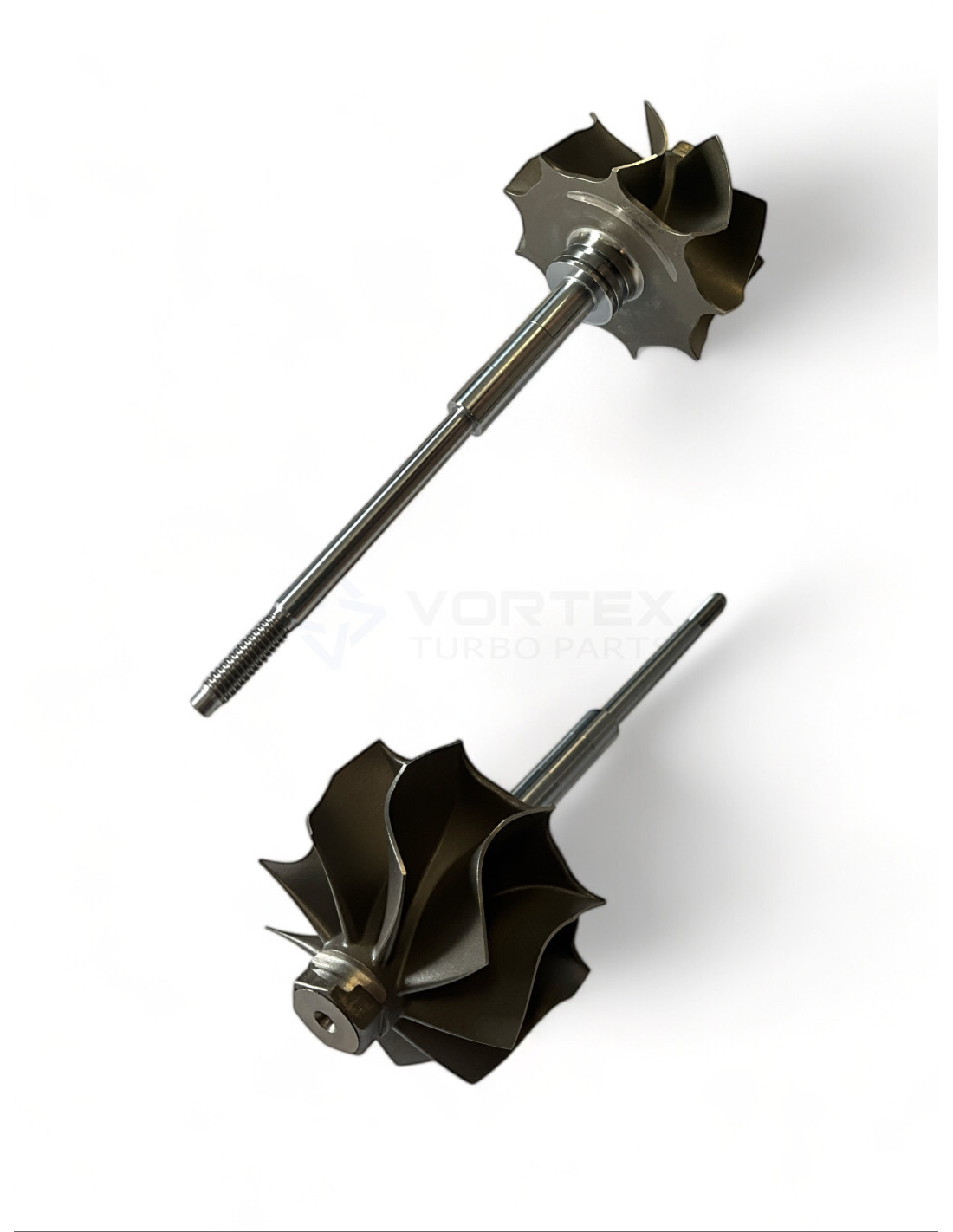

Shaft and wheel SW-G110
Shaft and wheel SW-G110

Shaft and wheel SW-G110

SW-G110
New
Last items in stock (1 Item)
€42.47
Tax included

Shaft and wheel SW-G110 for turbos 726372-0005, 767851-0001, 767851-0003.



SW-G110 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G110

SW-G110 - Compatibility table

Shaft and wheel SW-G110 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT2360V726372-000514411DC001
GarrettGT2360V767851-0001--
GarrettGT2360V767851-0003--

SW-G110 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 51.2

Exducer Diameter B (Exducer Diameter B): 47.0

Tip Height C (Tip Height C): 8.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 99.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

14411DC001, 726372-0005, 767851-0001, 767851-0003

Data updated: 2023-11-09 14:35:35
