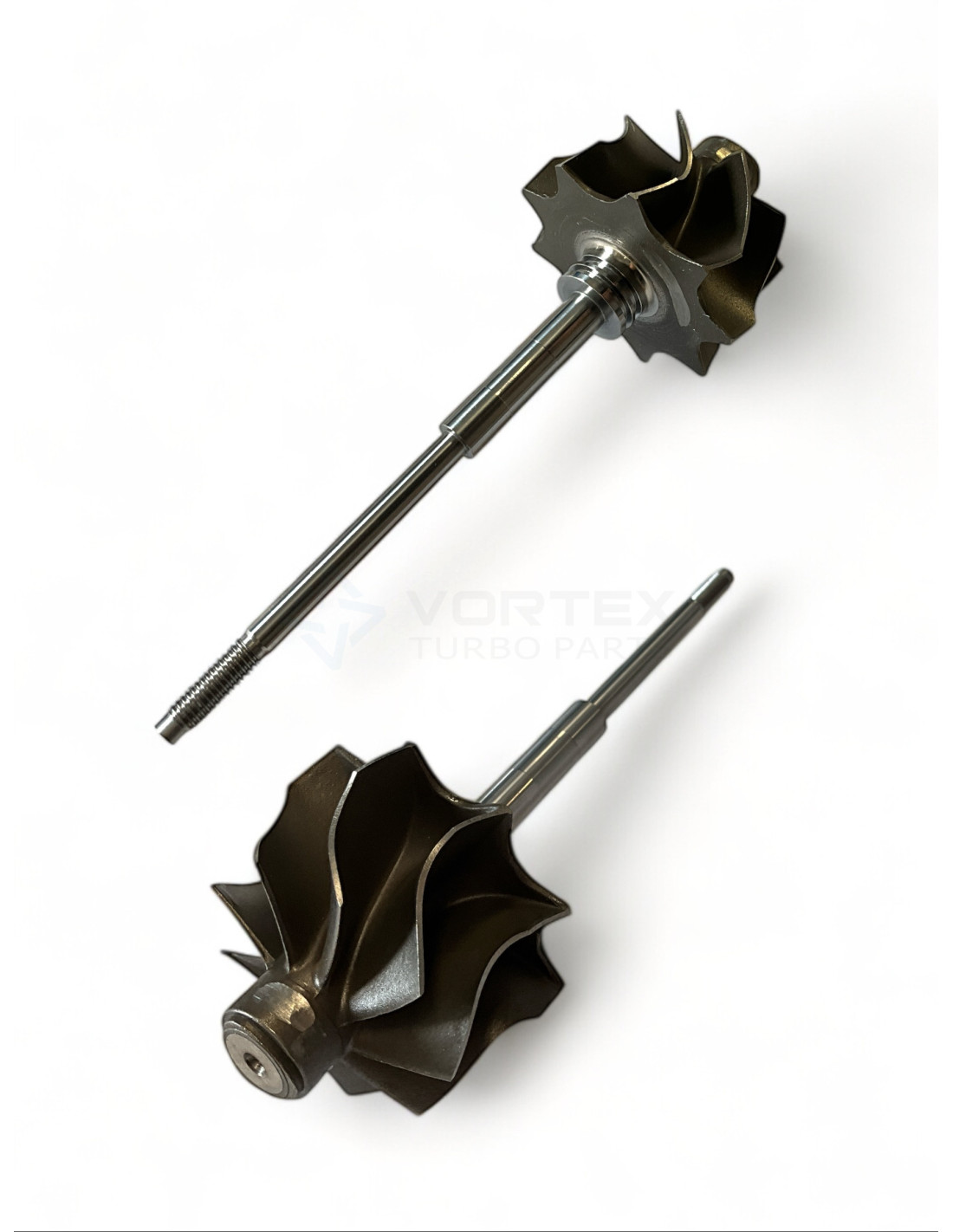

Shaft and wheel SW-G109
Shaft and wheel SW-G109

Shaft and wheel SW-G109

SW-G109
New
Last items in stock (4 Items)
€36.18
Tax included

Shaft and wheel SW-G109 for turbos 768625-0001, 768625-0002.



SW-G109 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G109

SW-G109 - Compatibility table

Shaft and wheel SW-G109 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT2260V768625-0001504205349
GarrettGT2260V768625-0002504205349

SW-G109 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 50.0

Exducer Diameter B (Exducer Diameter B): 43.0

Tip Height C (Tip Height C): 8.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 99.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT15-25

504205349, 768625-0001, 504205349, 768625-0002

Data updated: 2024-09-16 19:08:09
