Shaft and wheel SW-G030R
SW-G030R
New
In Stock
(10 Items)
€40.90
Tax included

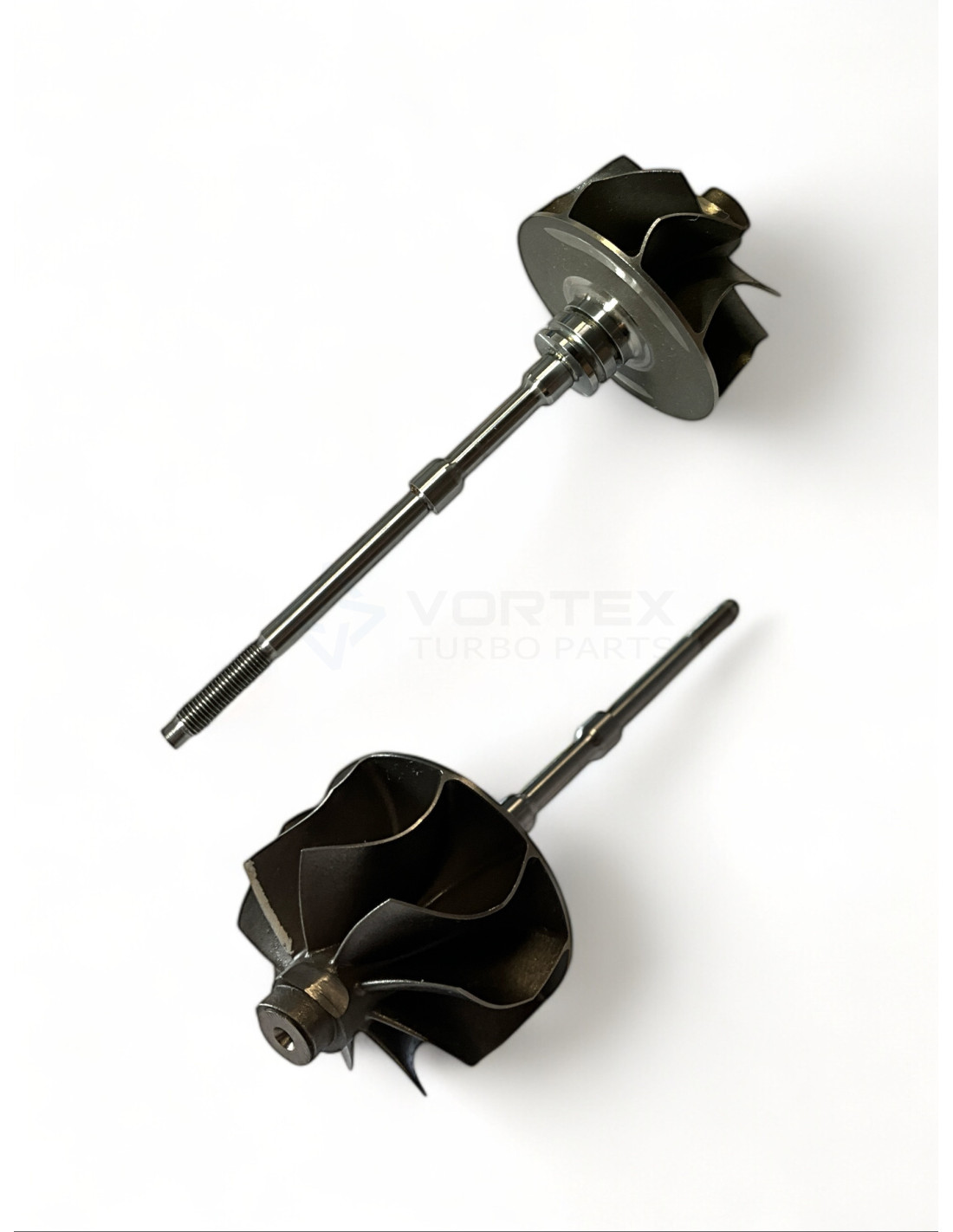

Shaft and wheel SW-G030R for turbos 817808-0011, 817808-0013, 817808-0015, 830233-0005, 830233-0007, 830233-0013, 830233-0015.
SW-G030R - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G030R
SW-G030R - Compatibility table
Shaft and wheel SW-G030R - Compatible turbochargers | |||
---|---|---|---|
TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
Garrett | MGT1446S | 817808-0011 | -- |
Garrett | MGT1446LKSZ | 817808-0013 | -- |
Garrett | MGT1446LKSZ | 817808-0015 | -- |
Garrett | MGT1446S | 830233-0005 | -- |
Garrett | MGT1446S | 830233-0007 | -- |
Garrett | MGT1446LKSZ | 830233-0013 | -- |
Garrett | MGT1446LKSZ | 830233-0015 | -- |
SW-G030R - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Slender
Inducer Diameter A (Inducer Diameter A): 40.0
Exducer Diameter B (Exducer Diameter B): 35.5
Tip Height C (Tip Height C): 8.2
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0
Shaft Length (mm) (Shaft Length (mm)): 80.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Single
Rotation (Rotation): Reverse
Model (Model): GT14
817808-0011, 817808-0013, 817808-0015, 830233-0005, 830233-0007, 830233-0013, 830233-0015
Data updated: 2024-10-11 12:51:57
