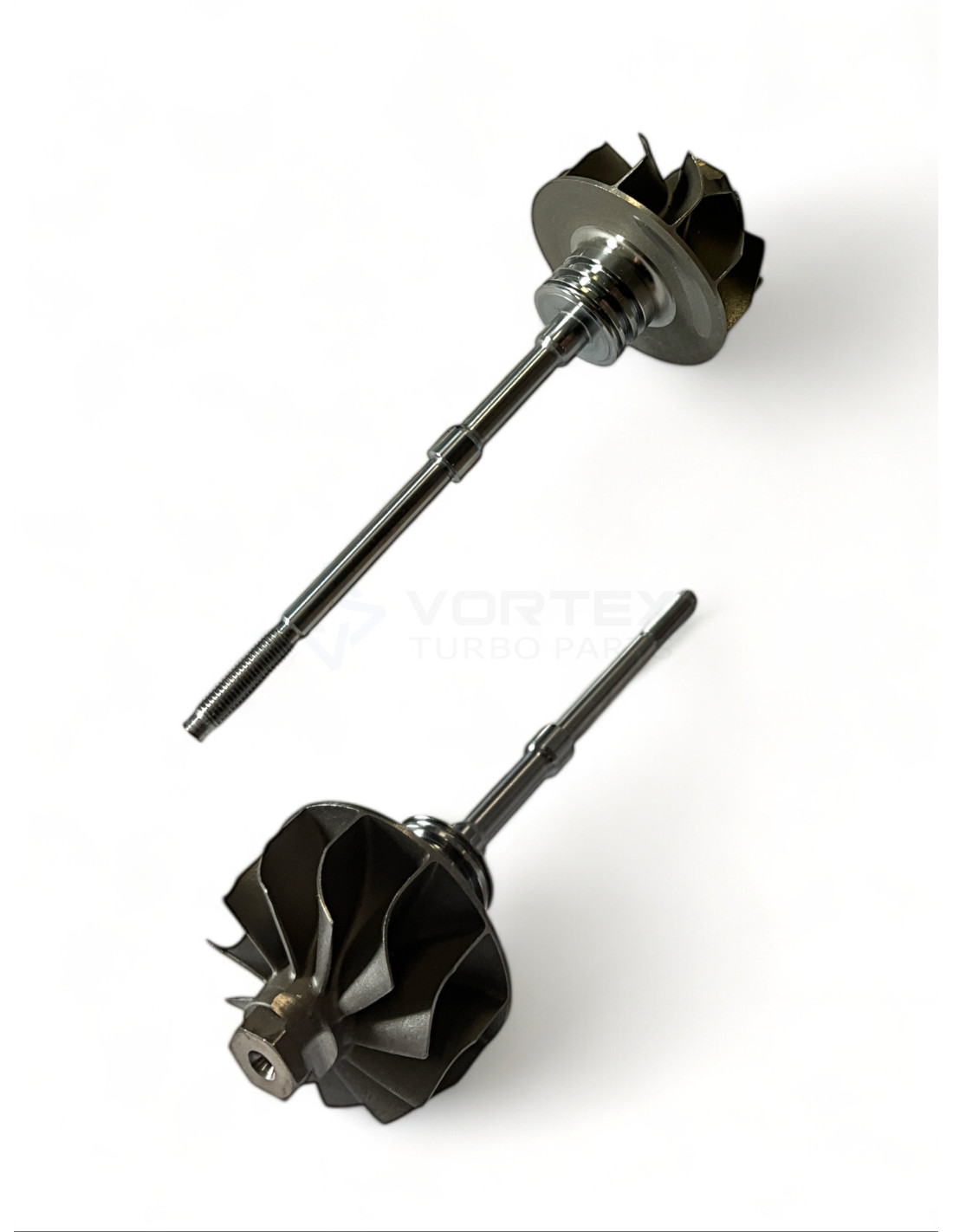

Shaft and wheel SW-G037
SW-G037
New
In Stock
(41 Items)
€28.31
Tax included
Shaft and wheel SW-G037 for turbos 819863-0001, 819863-0002, 819863-0003, 819872-0001, 819872-0002, 824168-0001, 824168-0002.
SW-G037 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G037
SW-G037 - Compatibility table
Shaft and wheel SW-G037 - Compatible turbochargers | |||
---|---|---|---|
TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
Garrett | GT14 | 819863-0001 | -- |
Garrett | GTD1244VZ | 819863-0002 | -- |
Garrett | GTD1244VZ | 819863-0003 | -- |
Garrett | GTD1244 | 819872-0001 | -- |
Garrett | GTD1244 | 819872-0002 | -- |
Garrett | GTD1244MVZ | 824168-0001 | -- |
Garrett | GTD1244MVZ | 824168-0002 | -- |
SW-G037 - Part Properties
Blades (Shaft blades count): 11
Type (Shaft & Wheel Type): Slender
Inducer Diameter A (Inducer Diameter A): 35.5
Exducer Diameter B (Exducer Diameter B): 32.5
Tip Height C (Tip Height C): 7.5
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0
Shaft Length (mm) (Shaft Length (mm)): 80.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Model (Model): GT14
819863-0002, 819863-0003, 819872-0001, 819872-0002, 824168-0001, 824168-0002
Data updated: 2024-09-30 18:50:13
