Shaft and wheel SW-B006
Shaft and wheel SW-B006

Shaft and wheel SW-B006R

SW-B006R
New
Last items in stock (2 Items)
€42.47
Tax included

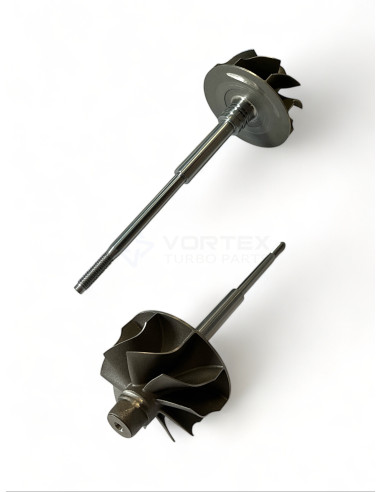

Shaft and wheel SW-B006R for turbos 18539700000, 18539700001, 18539700002, 18539700003, 18539700004, 18539700005, 18539700006, 18539700007, 18539700008, 18539700009.



SW-B006R - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-B006R

SW-B006R - Compatibility table

Shaft and wheel SW-B006R - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerB03185397000001165 4575478, 1165 7583904
BorgWarnerB03185397000011165 4575479, 1165 7583908
BorgWarnerB03185397000021165 4579845, 1165 7583909
BorgWarnerB03185397000031165 4577236, 1165 7588995
BorgWarnerB031853970000411657583904, 11657636423
BorgWarnerB03185397000051165 7583908, 1165 7636425
BorgWarnerB03185397000061165 7583909, 1165 7636426
BorgWarnerB03185397000071165 7588995, 1165 7636424
BorgWarnerB0318539700008--
BorgWarnerB031853970000911657643115
BorgWarnerB031853970001011657643115, 11657648913
BorgWarnerB0318539700026--
BorgWarnerB0318539700029--

SW-B006R - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 53.0

Exducer Diameter B (Exducer Diameter B): 46.8

Tip Height C (Tip Height C): 7.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 8.5

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.4

Shaft Length (mm) (Shaft Length (mm)): 108.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Rotation (Rotation): Reverse

Model (Model): B03

18539700010, 18539700009, 18539700007, 11657636424, 11657588995, 18539700006, 11657636426, 11657583909, 18539700005, 11657636425, 11657583908, 18539700004, 18539700003, 11657588995, 11654577236, 18539700002, 11657583909, 11654579845, 18539700001, 11657583908, 11654575479, 18539700000, 11657583904, 11654575478, 1165 4575478, 1165 7583904, 1853 970 0000, 1165 4575479, 1165 7583908, 1853 970 0001, 1165 4579845, 1165 7583909, 1853 970 0002, 1165 4577236, 1165 7588995, 1853 970 0003, 11657583904, 11657636423, 1853 970 0004, 1165 7583908, 1165 7636425, 1853 970 0005, 1165 7583909, 1165 7636426, 1853 970 0006, 1165 7588995, 1165 7636424, 1853 970 0007, 18539700008, 11657643115, 1853 970 0009, 11657643115, 11657648913, 1853 970 0010, 18539700026, 18539700029

Data updated: 2025-02-19 16:05:25
