Shaft and wheel SW-G105
SW-G105
New
In Stock
(8 Items)
€45.62
Tax included
Shaft and wheel SW-G105 for turbos 753959-0001, 753959-0002, 753959-0003, 753959-0004, 753959-0005.

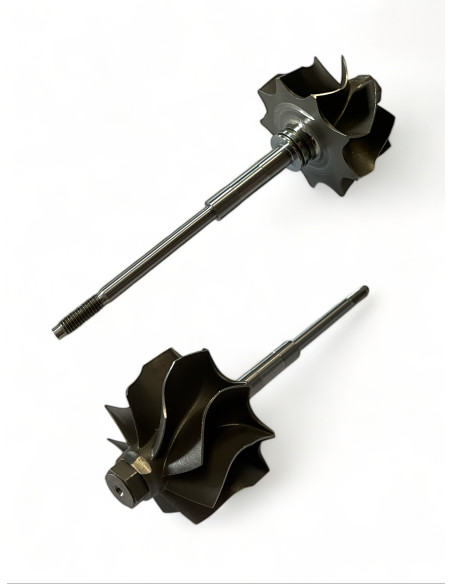

SW-G105 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G105
SW-G105 - Compatibility table
| Shaft and wheel SW-G105 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GT22 | 753959-0001 | -- |
| Garrett | GT22 | 753959-0002 | -- |
| Garrett | GT22 | 753959-0003 | -- |
| Garrett | GT22 | 753959-0004 | -- |
| Garrett | GT22 | 753959-0005 | -- |
SW-G105 - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 50.0
Exducer Diameter B (Exducer Diameter B): 44.0
Tip Height C (Tip Height C): 9.5
Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1
Shaft Length (mm) (Shaft Length (mm)): 99.0
Back (Back): Open
Piston Ring Type (Piston Ring Type): Single
Model (Model): GT15-25
753959-0001, 753959-0002, 753959-0003, 753959-0004, 753959-0005
Data updated: 2023-11-09 14:34:18
