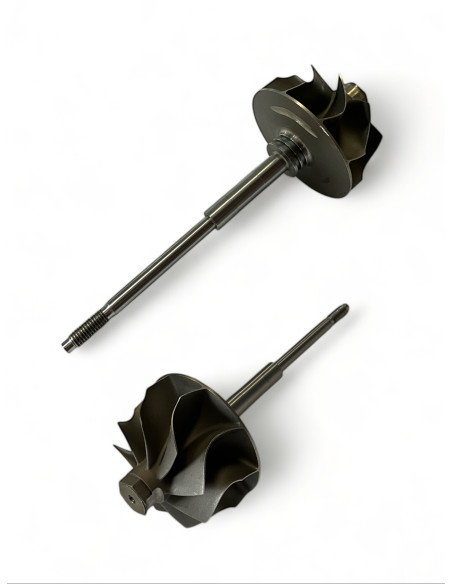

Shaft and wheel SW-G036
Shaft and wheel SW-G036

Shaft and wheel SW-G036

SW-G036
New
In Stock (10 Items)
€40.90
Tax included

760038-0008, SW-G036

Shaft and wheel SW-G036 for turbos 798166-0007, 812971-0002, 812971-0006, 853333-0001.



SW-G036 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G036

SW-G036 - Alternative numbers

GHO (Garrett original part number): 760038-0008

SW-G036 - Compatibility table

Shaft and wheel SW-G036 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTB2256VK798166-0007BK3Q6K682RC
GarrettGTB2256VK812971-0002BK3Q6K682AB
GarrettGTB2256VK812971-0006BK3Q6K682AC
GarrettGTB2256VK853333-0001BK3Q6K682RC

SW-G036 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 50.0

Exducer Diameter B (Exducer Diameter B): 43.0

Tip Height C (Tip Height C): 9.2

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 97.5

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT15-25

798166-0007, BK3Q6K682RC, 812971-0002, BK3Q6K682AB, 812971-0006, BK3Q6K682AC, 853333-0001, BK3Q6K682RC

Data updated: 2024-09-16 18:52:21
