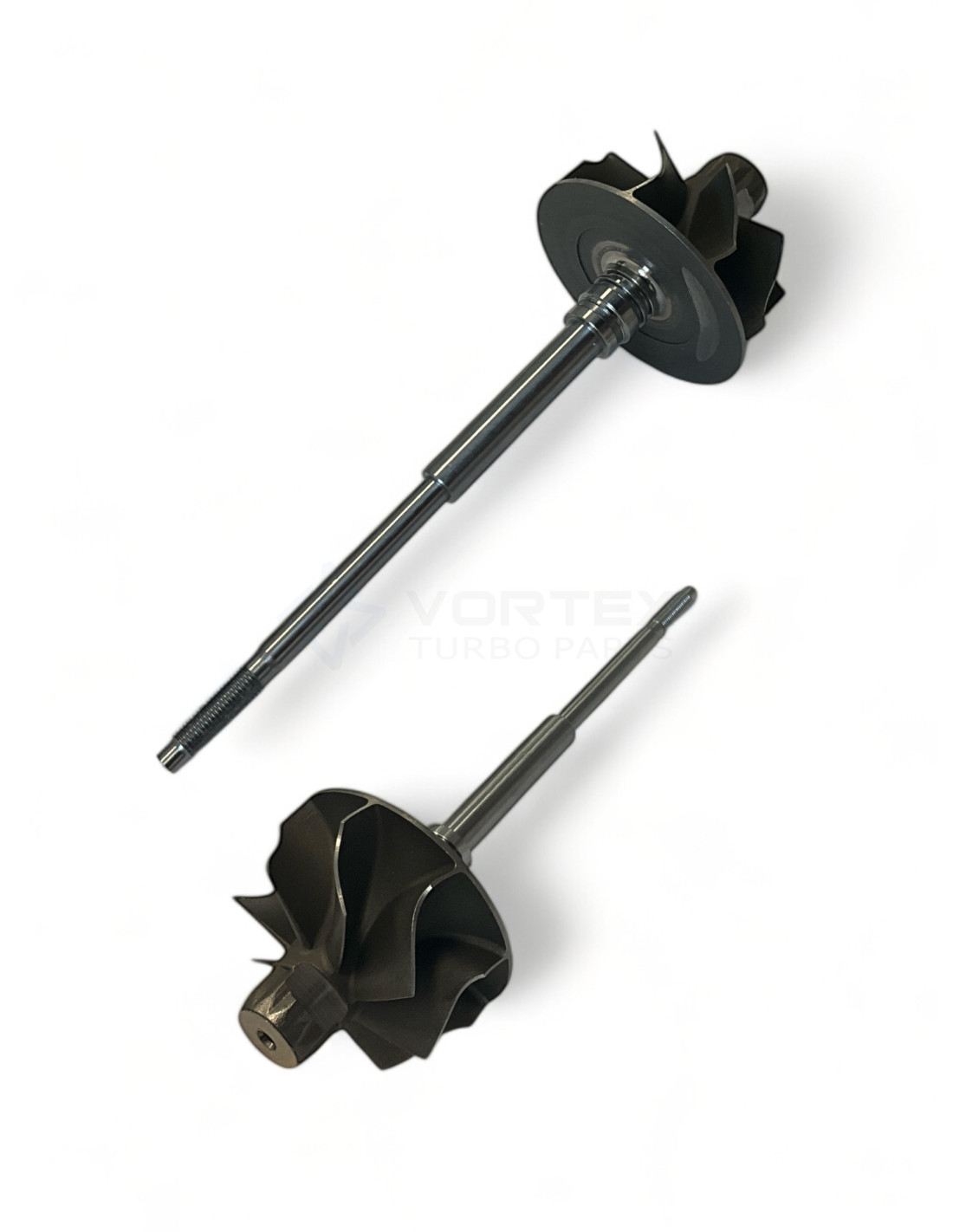

Shaft and wheel SW-B004
SW-B004
New
In Stock
(33 Items)
€45.62
Tax included
Shaft and wheel SW-B004 for turbos 16389700015, 16389700021, 54389700008, 54389700027.
SW-B004 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-B004
SW-B004 - Compatibility table
| Shaft and wheel SW-B004 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| BorgWarner | (R2S) B01V | 16389700015 | -- |
| BorgWarner | (R2S) B01V | 16389700021 | -- |
| BorgWarner | BV38 | 54389700008 | -- |
| BorgWarner | BV38 | 54389700027 | -- |
SW-B004 - Part Properties
Blades (Shaft blades count): 8
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 37.5
Exducer Diameter B (Exducer Diameter B): 33.4
Tip Height C (Tip Height C): 5.8
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.1
Shaft Length (mm) (Shaft Length (mm)): 83.5
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Model (Model): B01
16389700021, 16389700015, 1638 970 0015, 1638 970 0021, 54389700008, 54389700027
Data updated: 2023-11-22 17:47:16
