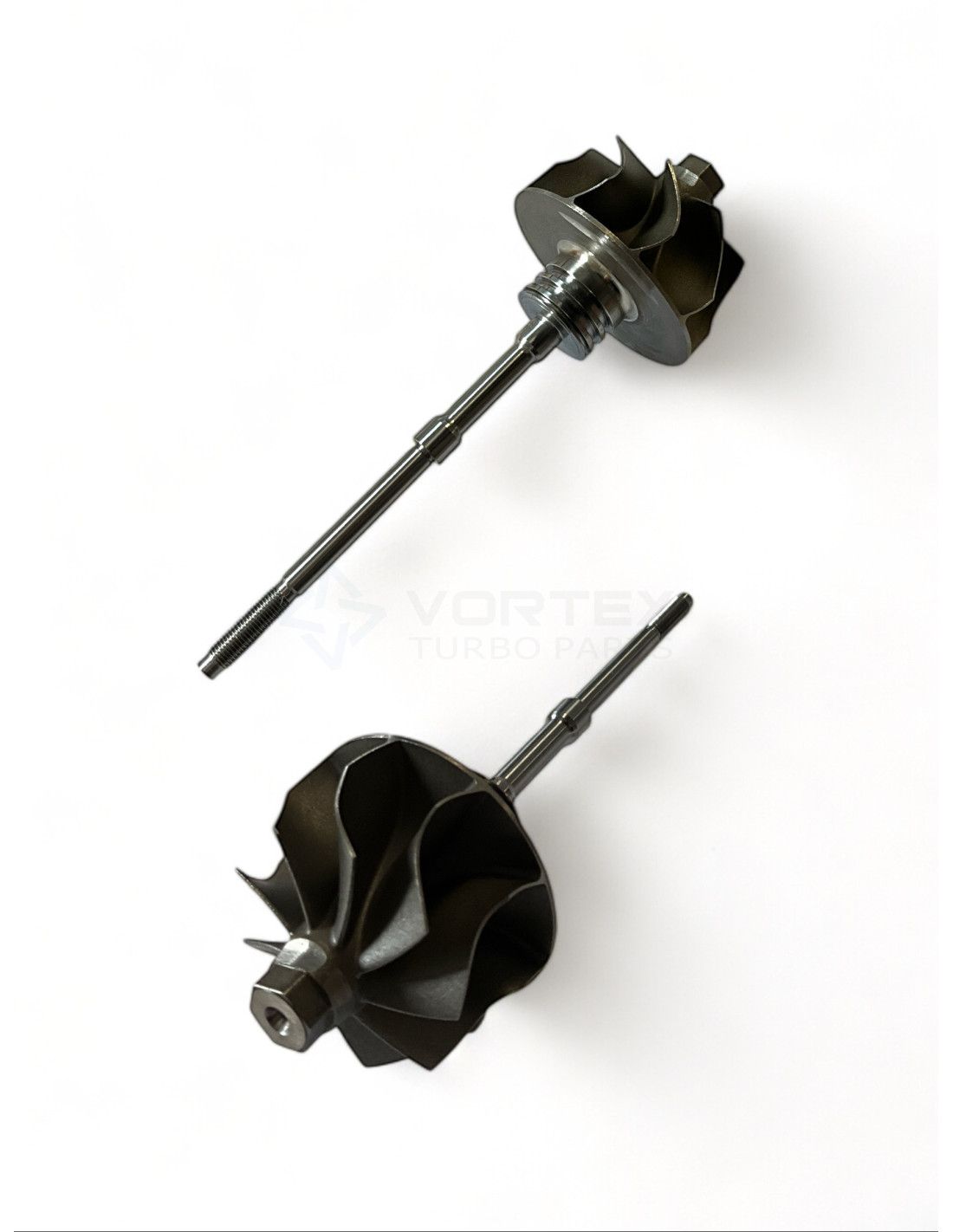

Shaft and wheel SW-G022
SW-G022
New
In Stock
(20 Items)
€44.04
Tax included
Shaft and wheel SW-G022 for turbos 789533-0001, 789533-0002, 805156-0003, 805156-0006.
SW-G022 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G022
SW-G022 - Compatibility table
| Shaft and wheel SW-G022 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GTC1446VZ | 789533-0001 | 55567731, 860198, E55567731 |
| Garrett | GTC1446VZ | 789533-0002 | 55567731, 860198, E55567731 |
| Garrett | GTC1444VZ | 805156-0003 | 31331331 |
| Garrett | GTC1444VZ | 805156-0006 | 31380219 |
SW-G022 - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Slender
Inducer Diameter A (Inducer Diameter A): 39.0
Exducer Diameter B (Exducer Diameter B): 34.0
Tip Height C (Tip Height C): 7.2
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0
Shaft Length (mm) (Shaft Length (mm)): 80.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Model (Model): GT14
55567731, 789533-0001, 860198, E55567731, 55567731, 789533-0002, 860198, E55567731, 31331331, 805156-0003, 31380219, 805156-0006
