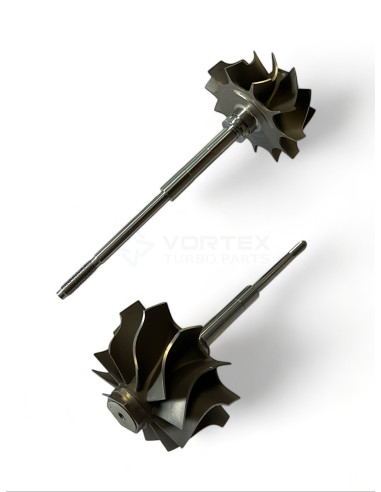

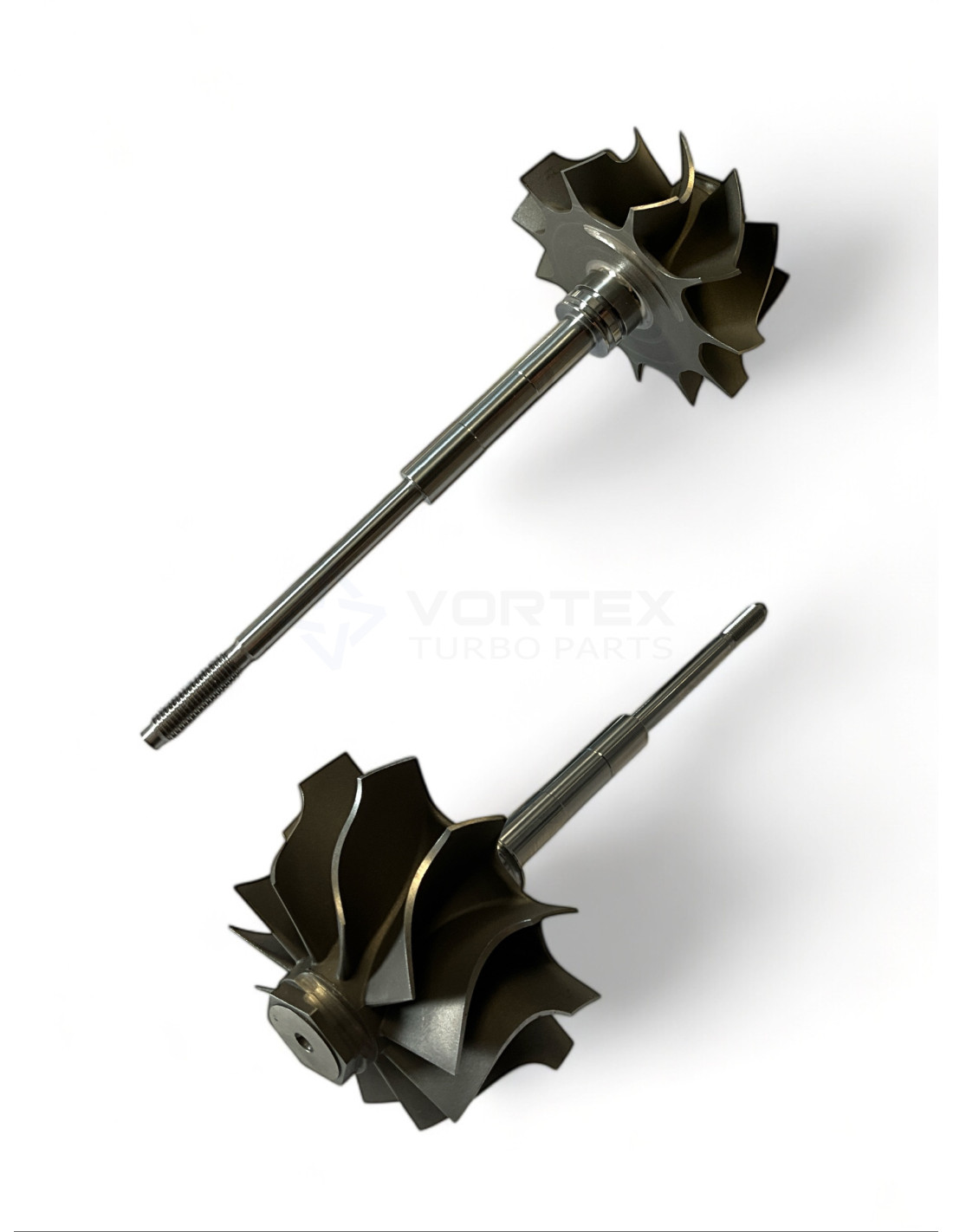

Shaft and wheel SW-G139
Shaft and wheel SW-G139

Shaft and wheel SW-G139

SW-G139
New
Last items in stock (1 Item)
€66.07
Tax included

407276-0005, 410188-0005, 410188-0014, 446905-0001

Shaft and wheel SW-G139 for turbos 409040-0014, 409240-0001, 409240-0002, 409240-0003, 409250-0001, 409250-0002, 409300-0024, 452072-0002, 465040-0002, 465040-0004.



SW-G139 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G139

SW-G139 - Alternative numbers

GHO (Garrett original part number): 407276-0005

GHO (Garrett original part number): 410188-0005

GHO (Garrett original part number): 410188-0014

GHO (Garrett original part number): 446905-0001

GHO (Garrett original part number): 451309-0002

SW-G139 - Compatibility table

Shaft and wheel SW-G139 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettT04B80409040-0014--
GarrettT04409240-0001--
GarrettT04409240-0002--
GarrettT04409240-0003--
GarrettT04B15409250-0001--
GarrettT04B15409250-0002--
GarrettT04B27409300-0024--
GarrettT04E66-2452072-0002--
GarrettT04465040-0002--
GarrettT04465040-0004--
GarrettT04465040-0005--
GarrettT04B59465044-0251--
GarrettT04B81465366-0001--
GarrettT04B4465600-0001--
GarrettT04B4465600-0002--
GarrettT04B4465600-0010--
GarrettT04E66-2465633-0005--
GarrettT04E66-2465633-0007--
GarrettTB4129466608-0001--
GarrettTB4129466608-0002--
GarrettTB4129466608-0003--
GarrettTB4129466608-0004--
GarrettT04E66-2466722-0001--
GarrettT04E66-2466722-0003--
GarrettT04E66-2468414-0000--
GarrettTBP4759134-0003--

SW-G139 - Part Properties

Blades (Shaft blades count): 11

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 74.2

Exducer Diameter B (Exducer Diameter B): 58.3

Tip Height C (Tip Height C): 9.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 10.2

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 6.3

Shaft Length (mm) (Shaft Length (mm)): 134.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): T3/T04

409040-0014, 409240-0001, 409240-0002, 409240-0003, 409250-0001, 409250-0002, 409300-0024, 452072-0002, 465040-0002, 465040-0004, 465040-0005, 465044-0251, 465366-0001, 465600-0001, 465600-0002, 465600-0010, 465633-0005, 465633-0007, 466608-0001, 466608-0002, 466608-0003, 466608-0004, 466722-0001, 466722-0003, 466722-0001, 759134-0003

Data updated: 2024-10-29 19:00:31
